Vision AV-1900 2 x 50w Mixer Amplifier

• Description
• Specifications
• Downloads

• Vision AV-1900 2 x 50w Mixer Amplifier

  The AV-1900 is a highly capable mixer-amplifier packed with useful features to make it as easy as possible to operate. It is designed for use in demanding applications like meeting spaces, small auditoriums, lecture theatres, school halls, and small churches. It has professional audio features normally only found in much more expensive mixer amps.

  Bluetooth
  For ease of connectivity it has a Bluetooth input. The device name and pin are fixed and cannot be changed. It can only pair with one device at a time.

  A device can be manually unpaired by pressing the INPUT 3 dial. If you do not want Bluetooth active just set input 3 to mic input with the switch on the rear.

  Mixer Amp
  This amp has four inputs, each of which can either be used for a microphone or a line-level input. It is a true mixer amp, so it can bring together multiple sources and play them at the same time.

  Mic Pre-Amp Trim
  The input gain for each mic input can be “trimmed” – adjusted on the rear panel. This allows the installer to “turn up” less sensitive mics, and “turn down” hot inputs.

  Switchable Phantom Power
  Each mic input has Phantom power which is a voltage required to make professional condenser mics work. Phantom can be turned off on each input discretely.

  Four Microphone Inputs

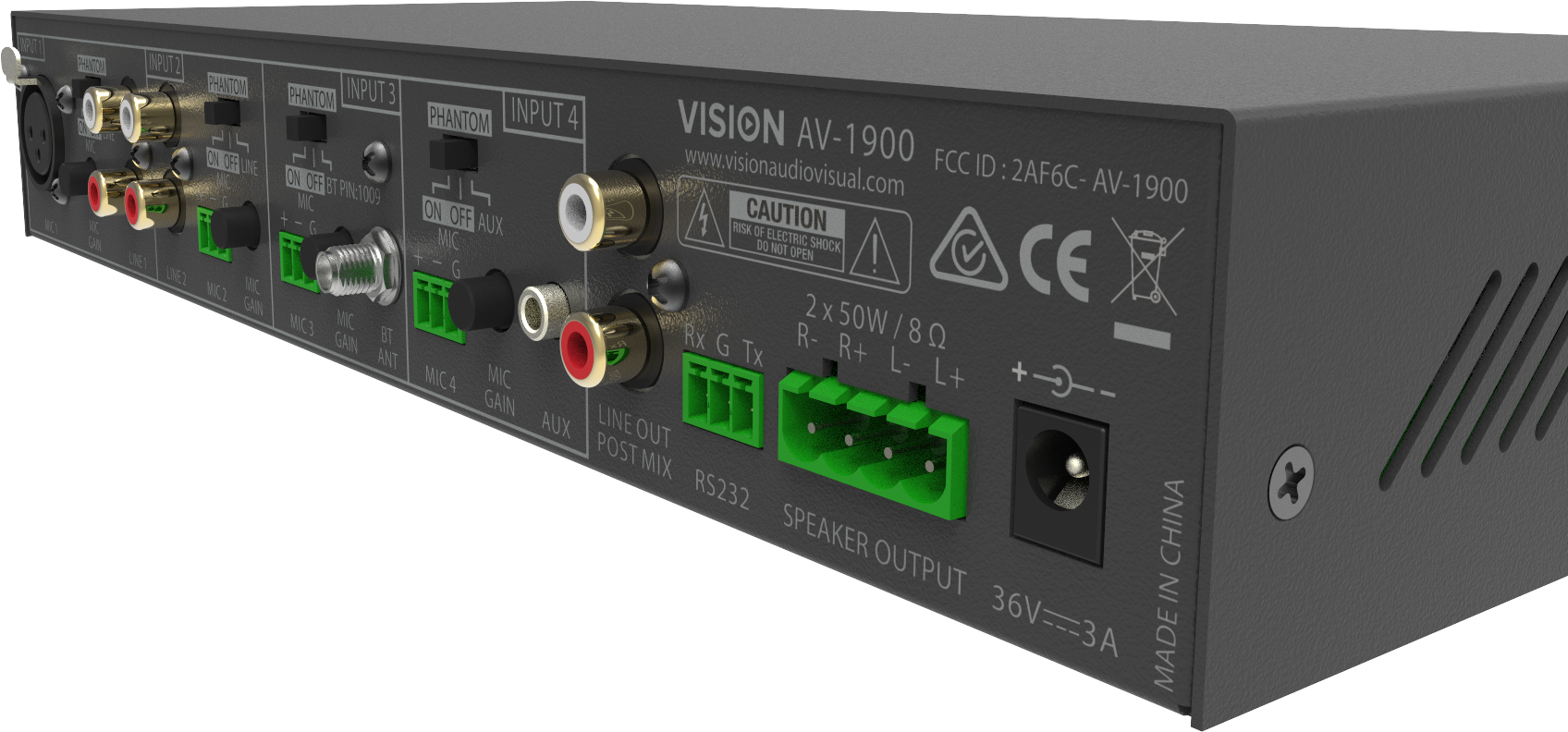

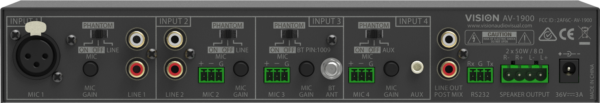

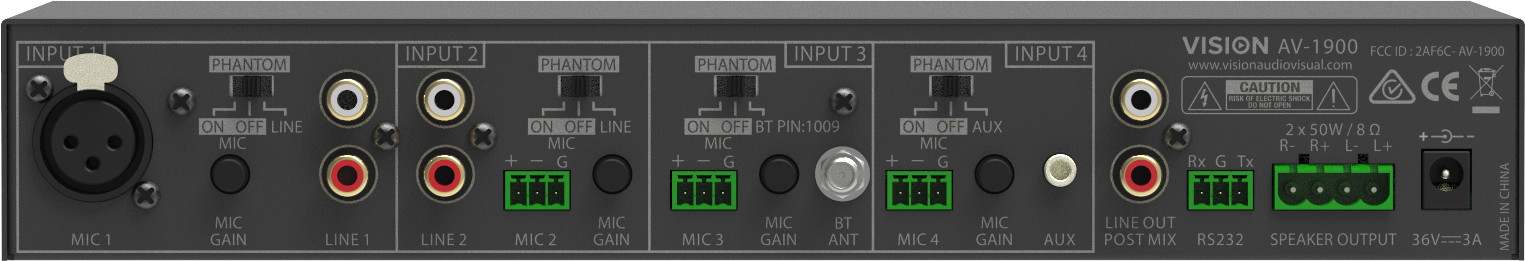

  All mic inputs are “balanced” to eliminate electro-magnetic noise induced on long cables. Input 1 uses a professional XLR connector – more convenient for rental and portable use, and the other inputs use phoenix connectors – more suited to permanent installations.

  RS-232
  Designed for integration with a bigger system, it can be controlled by a control system such as Techconnect Control via RS-232.

  D-Class
  An efficient Digital-class amplifier chip dramatically reduces power consumption especially at rest, and makes this amp super-small.

  3 x Stereo Inputs

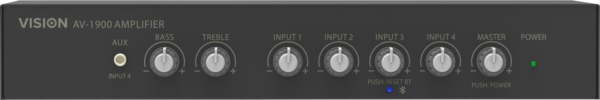

  Three line-level stereo inputs accept input from a variety of sources such as computers (via the headphone jack), tablets or phones. Inputs 1 and 2 use 2-phono (RCA) connectors. Input 4 is via a Minijack connector, and is duplicated on the front panel for adhoc access.

  Line Output
  A line-level pre-output on the rear bypasses the internal amplifier. It would connect to a larger amplifier or powered loudspeakers. It is post-mix; volume adjustments made on the front panel affects the output level.

  Auto-Standby
  If the amplifier senses no input it will automatically go into standby mode. When it senses input it will reactivate. Auto-standby can be disabled via RS-232.

  Mounting Options
  Rack ears are included so it can be integrated into an AV rack.

  8 or 4 Ohms
  The powerful amp can drive a 8 ohm load (two loudspeakers), or 4 ohm load (four loudspeakers).

• Category	Details
  Amplifier Dimensions	283 x 135 x 45 mm (wide x deep x tall) not including dials and connectors
  Carton Dimensions	333 x 200 x 155 mm (length x width x height)
  Amplifier Weight	1.2 kg
  Packaged Weight	About 3 kg
  Colour	Black
  Inputs	Input 1: Line-level Stereo (2-phono/RCA) or Balanced Mic (XLR)
  	Input 2: Line-level Stereo (2-phono/RCA) or Balanced Mic (Phoenix)
  	Input 3: Bluetooth or Balanced Mic (Phoenix)
  	Input 4: Line-level Stereo (Minijack) or Balanced Mic (Phoenix)
  Outputs	1 x Line-level Stereo (2-phono/RCA) Post mix
  Power Output	2 x 50 Watts RMS @ 8 OHMS
  Total Harmonic Distortion	<10%
  Frequency Response (Line In)	50 Hz ~ 18 KHz
  Signal to Noise Ratio (Line In)	70 dB
  Rating Input Level/Impedance	700 mV / 47 K ohms
  Operating Temperature Range	0 to +40°C (32 to +104°F)
  Power Consumption (Rating Condition)	100W
  Phantom Power	48V
  Bluetooth Version	5.0
  Accessories Included	2 x Speaker Cable 5 m long
  	1 x UK C7 figure-8 power cable 1.8 m long
  	1 x EU C7 figure-8 power cable 1.8 m long
  	1 x AU C7 figure-8 power cable 1.8 m long
  	1 x US C7 figure-8 power cable 5.9 ft long
  	1 x Rack ears
  Power Supply	100~240V External Power Supply 36V 3A
  Warranty	Lifetime return-to-base
  Compliances	RoHS, WEEE, CE/EMC, CE/LVD, RCM_SDOC, FCC_BT3.0, FCC_BT4.0, CE-RED, UKCA
  Order Part Code	AV-1900 [SAP: 5557274]
  Country of Origin	China
  ISO	ISO 9001:2015

• AV-1900 : Datasheet
