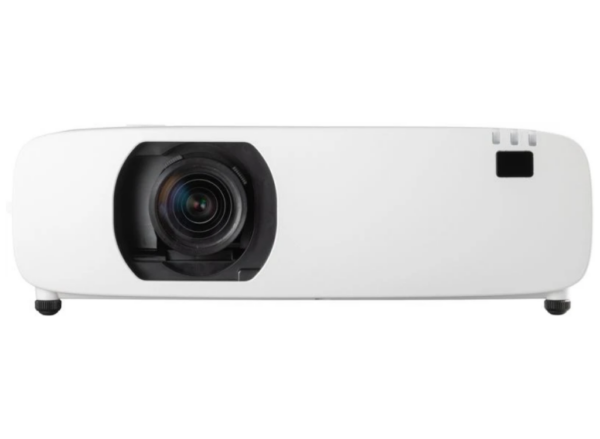

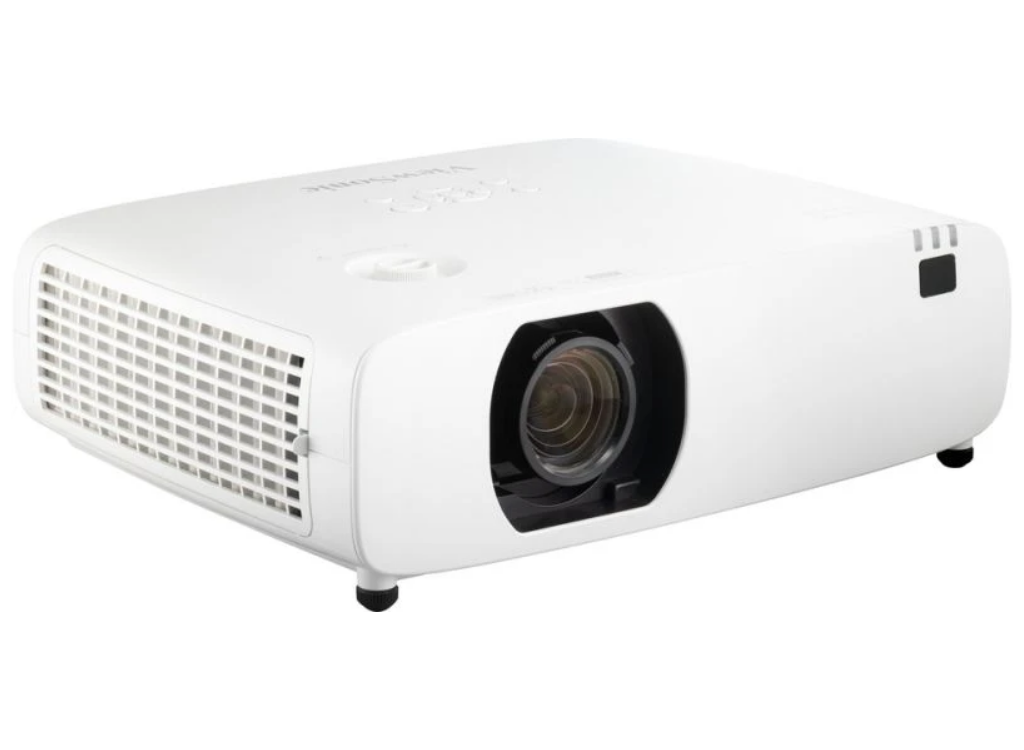

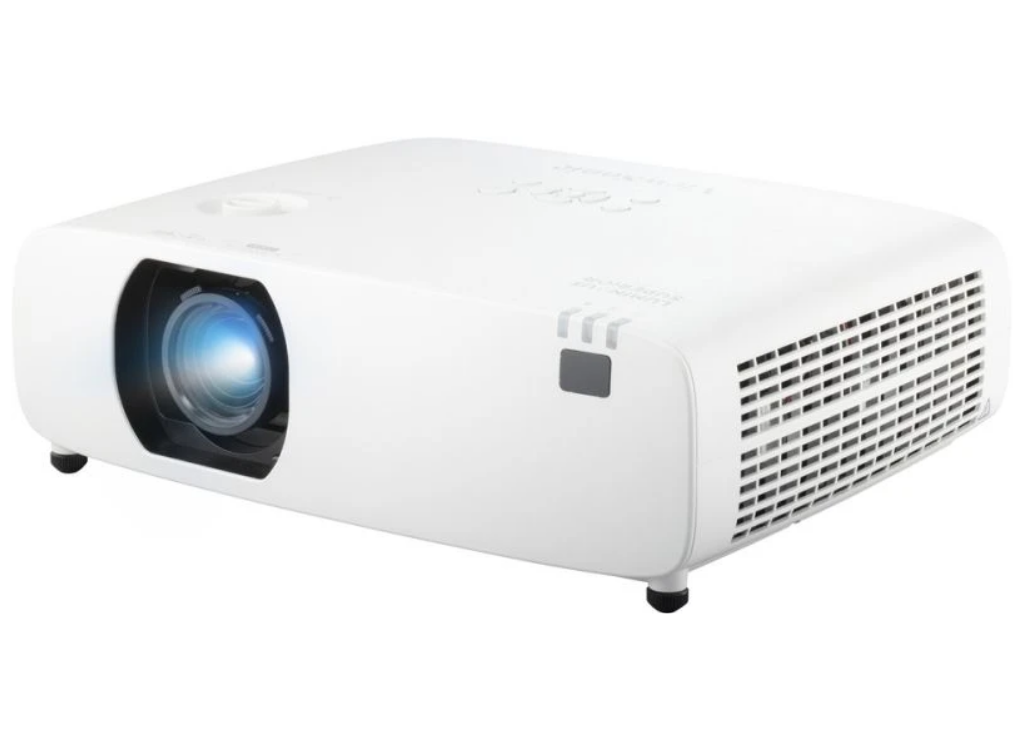

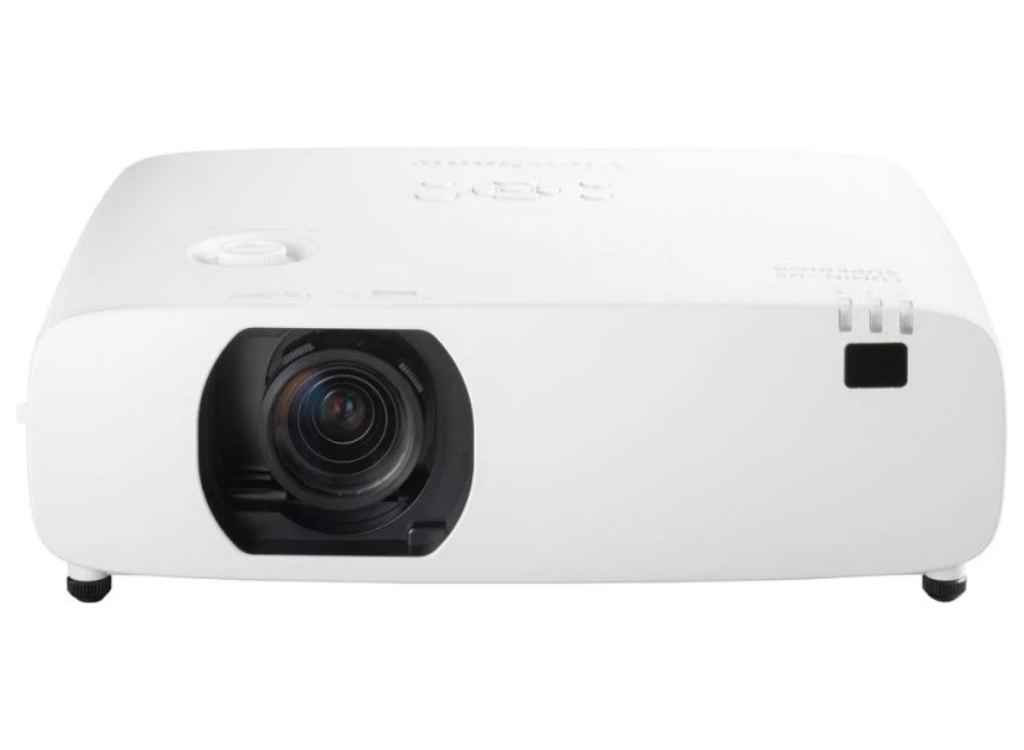

• ViewSonic LSC520WU WUXGA Laser Installation Projector – 5200 Lumens

  The LSC520WU is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing 3rd generation laser phosphor technology, this projector delivers 5,200 ANSI Lumens of brightness for up to 30,000 hours and can project an ultra-large screen up to 300” in WUXGA resolution. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC520WU offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.

  Bright Images for Large Venues
  Delivering 5,200 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces.
  5,200 ANSI Lumens


  Ultra-large Screen with Lower Cost-per-inch
  This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.​
  Up to 300”


  Next-Gen Meeting Experience with 21:9 Aspect Ratio
  The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.
  21:9 for MTR


  Adaptable to Any Environment
  Featuring tool-free lens shift control knobs, 1.6x optical zoom, H/V keystone correction, and 4-corner adjustment capabilities, this projector allows image adjustments without relocation, ensuring it fits any environment.
  V Lens Shift, Keystone Correction, 1.6x Optical Zoom


  Bright, Compact, Durable
  The projector incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.
  3rd Generation Laser Phosphor Technology


  Centralized Control for Management Efficiency
  The projector is compatible with Crestron, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency​.
  Comprehensive LAN Control


  Dimension & I/O Ports

  1-Zoom Ring
  2-Focus Ring
  3-Front IR
  4-AC In
  5-Audio In
  6-Video
  7-Audio In (L)
  8-Audio In (R)
  9-Audio Out
  10-Computer
  11-Monitor Out
  12-HDMI x2
  13-Service
  14-USB-A (5V/1.5A)
  15-RJ45
  16-RS232
  17-LED Indicator
  18-Keypad
  19-Lens Shift Control Knob

• Specification	Details
  Projection System	3LCD (3×0.64″ with MLA)
  Native Resolution	1920×1200
  Brightness	5200 ANSI Lumens
  Brightness (Center Lumens)	6000
  Contrast Ratio	3000000:1
  Display Color	1.07 Billion Colors
  Light Source Type	Laser Phosphor
  Light Source Life (Normal Mode)	20,000 hours
  Light Source Life (SuperEco Mode)	30,000 hours (Eco)
  Lens	F=1.58-2.02, f=15.3-24.6mm
  Projection Offset	0% +/-5%
  Throw Ratio	1.08-1.76
  Optical Zoom	1.6X
  Digital Zoom	1.0x-4.0x
  Image Size	30″-300″
  Throw Distance	0.70-11.37m (100″@2.33m)
  Keystone	H:+/-30°, V:+/-30°
  Lens Shift V. Range	+45%, 0%
  Audible Noise (Normal)	35dB
  Audible Noise (Eco)	26dB
  Input Lag	60ms
  Resolution Support	VGA(640 x 480) to 4K (3840 x 2160@30Hz)
  HDTV Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p@30Hz
  Horizontal Frequency	15K-100KHz
  Vertical Scan Rate	23-85Hz
  Inputs and Outputs	Description
  Computer in (share with component)	1
  Composite	1
  HDMI	2 (HDMI 1.4/ HDCP 1.4)
  Audio-in (3.5mm)	1
  Audio-in (RCA R/L)	1
  USB Type A	1 (5V/1.5A)
  Monitor out	1
  Audio-out (3.5mm)	1
  Speaker	16W
  USB Type A (Power)	1 (USB2.0 – 5V/1.5A, share with USB A Input)
  Control	Description
  RS232 (DB 9-pin male)	1
  RJ45 (LAN control)	1
  USB Type B (Services)	1
  Others	Description
  Power Supply Voltage	100-240V +/- 10%, 50/60Hz (AC in)
  Power Consumption	Normal: 230W, Standby: <0.5W
  Operating Temperature	0~40℃
  Carton	Brown
  Net Weight	5.2kg
  Gross Weight	7.23kg
  Dimensions with Adjustment Foot	390x294x128mm
  Packing Dimensions	492x443x239mm
  OSD Language	25 languages including English, German, French, etc.
  User Guide Language	20 languages including English, S-Chinese, etc.
  Standard Accessory	Power Cord, Remote Control, QSG, Air Filter, Warranty Card (CN Only)
  Optional Accessory	Air Filter, Wall/Ceiling Mount: PJ-WMK-007
