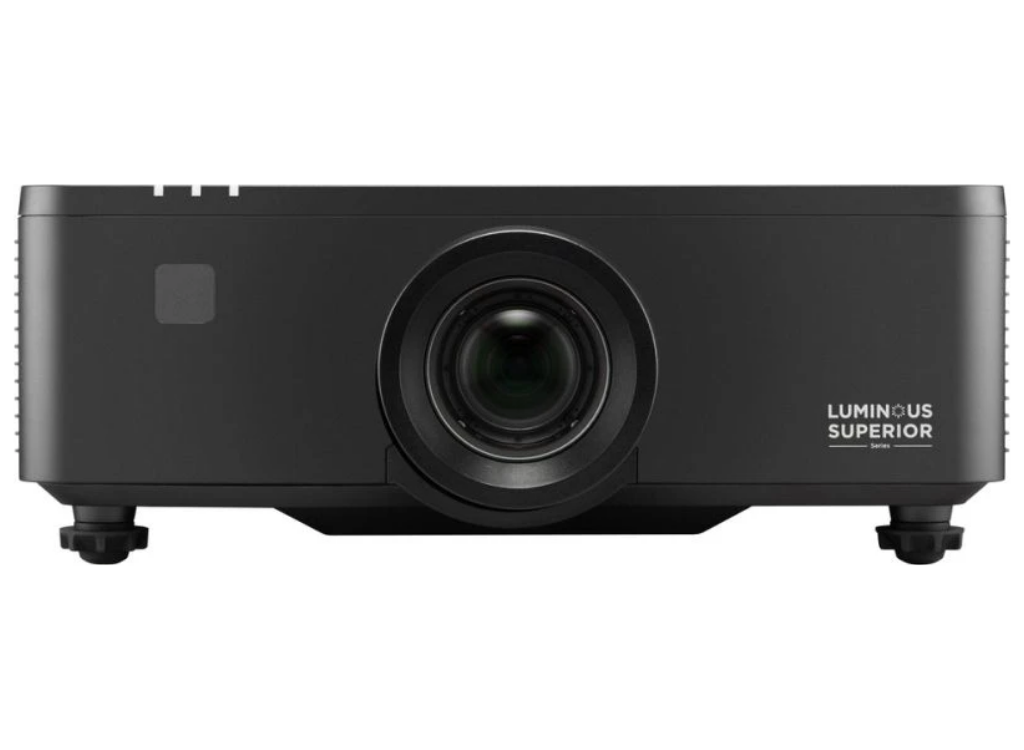

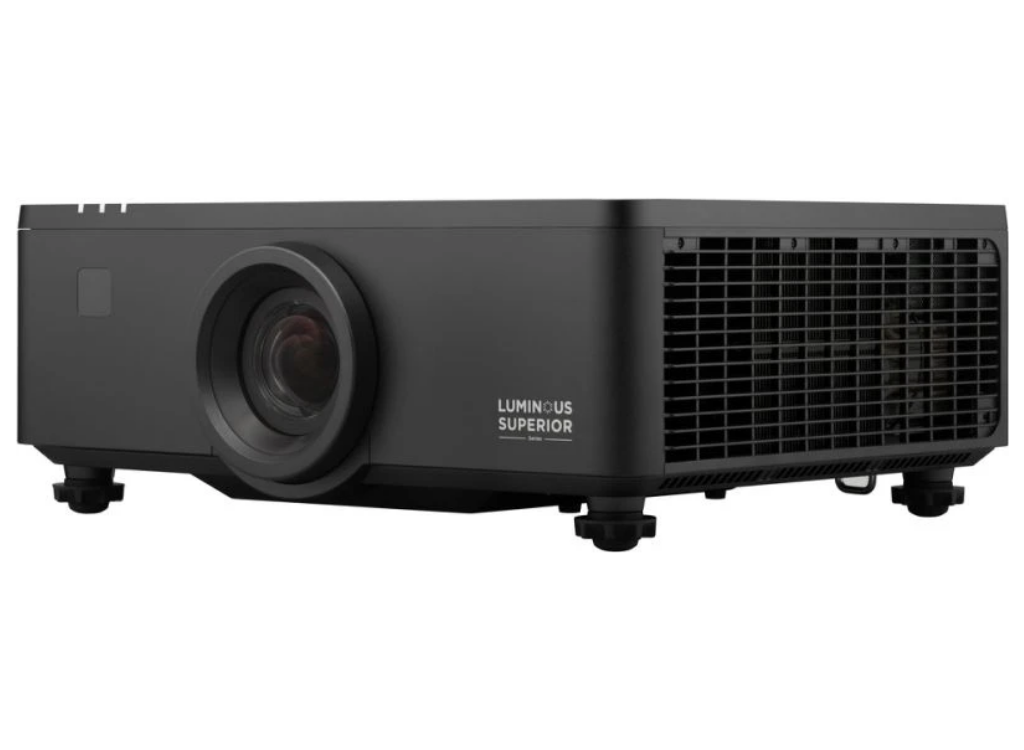

• ViewSonic LS951WU Short Throw WUXGA Laser Installation Projector – 8000 Lumens

  Introducing the LS951WU from ViewSonic’s Luminous Superior Series, tailored for expansive venue displays. Featuring a robust 8,000 ANSI Lumens brightness and a high native contrast provided by a 0.67” DMD chip through DLP technology, it delivers stunning visuals on screens up to 300 inches. With a 0.75-0.95 short throw, the LS951WU delivers a seamless image on a 100-inch screen from only 1.6 meters away without shadows, enabling effortless edge blending to create immersive experiences. Motorized focus, zoom, lens shift, and H/V keystone adjustment make setup a breeze, while portrait mode and 360° projection capabilities cater to more advanced requirements. Comprehensive LAN control ensures seamless integration into existing device management networks. Employing advanced 2nd generation laser phosphor technology, the LS951WU boasts a remarkable 30,000-hour lifespan, reducing maintenance costs for both business and educational institutions.

  Brilliant Visuals for Large Venues
  With an impressive 8,000 ANSI Lumens, the LS951WU ensures crystal-clear visuals even in brightly lit environments. Its WUXGA resolution provides stunningly detailed images, enhancing the impact of presentations, training sessions, and events. This makes it the preferred choice for large venues such as auditoriums, assembly halls, receptions, and museums.
  8,000 ANSI Lumens


  No Shadows, No Blinding Lights
  Enjoy big-screen viewing without space constraints with the LS951WU, which features a 0.75-0.95 short throw ratio to project a stunning 100” image from just 1.6 meters away. Perfect for auditoriums, exhibitions, and event spaces, this short throw technology reduces shadows and glare, ensuring clear, unobstructed projections for an immersive visual experience.
  0.75-0.95 Short Throw


  Unmatched Contrasts, Enhanced Visibility
  Experience enhanced visuals with the LS951WU, boasting high contrast thanks to DLP technology and an advanced 0.67″ DMD chip from Texas Instruments. This provides deeper blacks and richer depth, ensuring an exceptional viewing experience.

  Ultra-Large Screen with Lower Cost-per-Inch
  This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.​
  Up to 300”


  Enhanced Installation Flexibility
  Equipped with a 1.26x optical zoom, the projector allows users to choose the ideal setup location within a range, achieving the desired image size without altering the existing interior design. Conveniently fine-tune the zoom and focus using the remote control, ensuring seamless operation without needing to access the ceiling-mounted projector.
  Motorized 1.26x Optical Zoom & Focus


  Convenient Placement Setup
  The tool-free lens shift control knobs allow you to adjust the projection up, down, left, and right without moving the projector. Additionally, you can also adjust the image position directly via the remote control from a distance. It provides flexible installation options with a wide adjustable range (H: +/- 25%, V: +/- 55%) and minimal placement restrictions.
  Motorized H/V Lens Shift


  Get ​​Perfectly-Shaped Images Effortlessly
  Horizontal and vertical keystone correction along with 4-corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.
  H/V Keystone Correction, 4 Corner Adjustment


  Centralized Control for Management Efficiency
  The LS951WU is compatible with Crestron, AMX, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency​.
  Comprehensive LAN Control


  Brilliant Colors for an Authentic Golf Experience
  Powered by ViewSonic’s advanced color-tuning technology, the projector features a dedicated Golf Mode that enhances colors, especially greens and blues, more vivid and brings fairways and putting surfaces to life with striking realism, creating a golf experience that feels as close to reality as possible.

  *The color mode is named as Sports Mode for this model.
  Golf Color Mode


  2nd Generation Laser Phosphor Technology
  The LS951WU adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.
  Up to 30,000-hour Lifespan


  Reliable Long-Term Performance with DLP Projection Technology​
  With DLP technology, the LS951WU maintains consistent color performance over time, free from any yellowing issues. Featuring a sealed engine design, it is filter-free, preventing dust from affecting internal components and ensuring minimal maintenance. Moreover, it offers crisp and seamless image quality, displaying remarkable contrast and eliminating the noticeable screen-door effect.


  Versatile Creative Application​s​
  The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.
  360° Projection, 90° Portrait Mode


  Cost-Effective Long-Distance AV Signal Reception
  With a built-in HDBT receiver, this projector can receive uncompressed high-resolution video and audio over long distances (up to 100m for 1080p) via a single Cat.5e/6 network cable and is compatible with any certified HDBaseT transmitter.
  Built-in HDBT Receiver


  Seamless Edge-Blending
  This projector features built-in software that automatically adjusts the brightness of overlapping image areas for smooth edge blending, simplifying the process and reducing costs.
  *Compatible multi-output graphics card with an overlap function is required.


  A Simpler Way to Update Projector Software​
  Skip trips to the service center by keeping software up to date easily and onsite via a LAN webpage.​ This efficient solution, developed exclusively by ViewSonic, ensures optimal performance without the hassle. ​

  *The latest projector software update can be found in the download section at the bottom of the page when available.


  Dimensions & I/O Ports

  1-Front IR
  2-LED Indicator
  3-Lens
  4-Top IR
  5-12V Trigger
  6-IR In
  7-HDBaseT
  8-RJ-45
  9-HDMI 2.0/ HDCP 2.2 x2
  10-HDMI Out
  11-Computer In
  12-3D Sync In
  13-3D Sync Out
  14-USB-A (5V/1.5A)
  15-Audio In
  16-Audio Out
  17-RS232
  18-Keypad

• Specification	Details
  Projection System	0.67″ WUXGA
  Native Resolution	1920×1200
  Brightness	8000 (ANSI Lumens)
  Brightness (Center Lumens)	8100
  Contrast Ratio	3000000:1
  Display Color	1.07 Billion Colors
  Light Source Type	Laser Phosphor
  Light Source Life (Normal Mode)	20000 hours
  Light Source Life (SuperEco Mode)	30000 hours
  Lens	F=2.3-2.53, f=11.11-14.06mm
  Projection Offset	0%±10%
  Throw Ratio	0.75-0.95
  Optical Zoom	1.26X
  Digital Zoom	0.5x-4.0x
  Image Size	50″- 300″
  Throw Distance	0.81-6.13m (100″@1.61m)
  Keystone	H:+/-30°, V:+/-15°
  Lens Shift V. Range	+55%, -55%
  Lens Shift H. Range	+25%, -25%
  Audible Noise (Normal)	32dB
  Audible Noise (Eco)	30dB
  Input Lag	19ms
  Resolution Support	VGA(640 x 480) to 4K(3840 x 2160)
  HDTV Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
  Horizontal Frequency	15K- 135KHz
  Vertical Scan Rate	23- 120Hz
  Input
  Computer in (share with component)	1
  HDMI	2 (HDMI 2.0/ HDCP 1.4/2.2)
  Audio-in (3.5mm)	1
  3D VESA (Sync)	1 (BNC)
  HDBaseT	1
  IR In	1
  Output
  HDMI out	1
  Audio-out (3.5mm)	1
  Speaker	10W x2
  USB Type A (Power)	1 (5V/1.5A)
  12V Trigger (3.5mm)	1
  3D SYNC Out	1
  Control
  RS232 (DB 9-pin male)	1
  RJ45 (LAN control)	1
  Wired Remote Control – In	1 (share with IR in)
  Others
  Power Supply Voltage	100-240V+/- 10%, 50/60Hz (AC in)
  Power Consumption	Normal: 560W, Standby: <0.5W
  Operating Temperature	5~40℃
  Carton	Brown
  Net Weight	13.0kg
  Gross Weight	17.6kg
  Dimensions (WxDxH) with Adjustment Foot	486x395x186mm
  Packing Dimensions	654x563x373mm
  OSD Language	24 languages (English, French, Spanish, Thai, Korean, etc.)
  User Guide Language	20 languages (English, S-Chinese, T-Chinese, Indonesian, etc.)
  Standard Accessory	Power Cord, Remote Control (with backlit), QSG, Warranty Card (CN Only)
