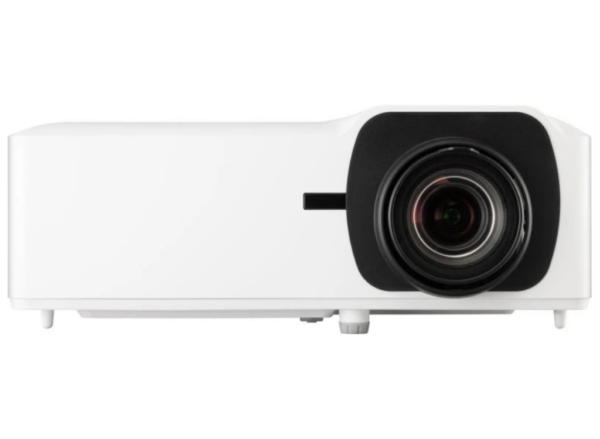

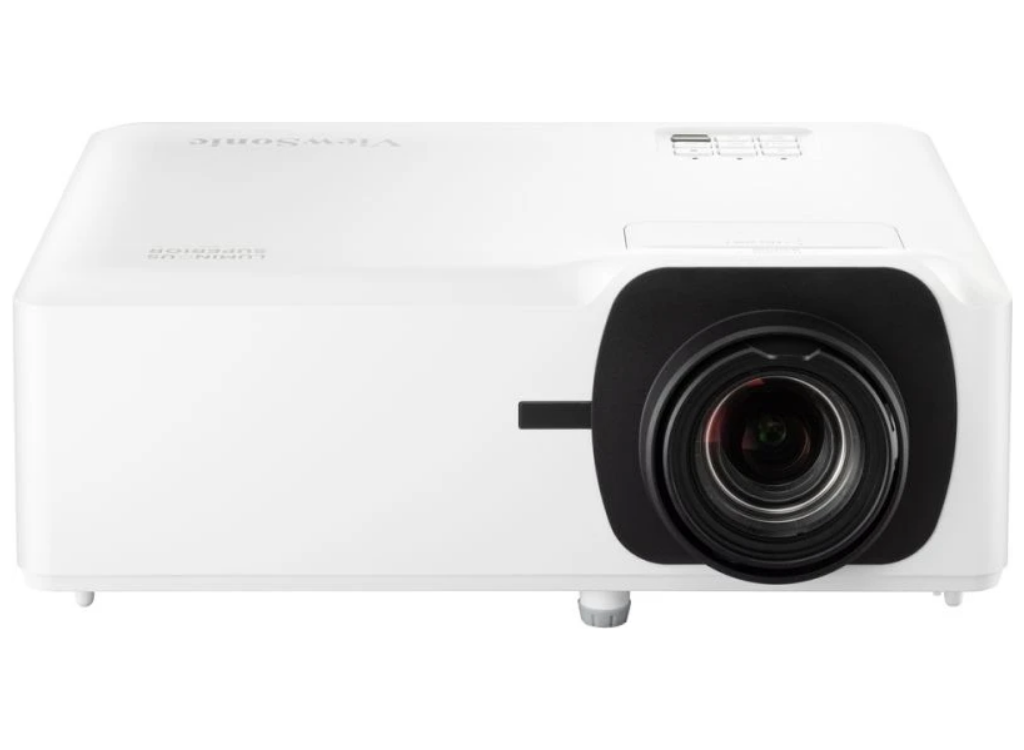

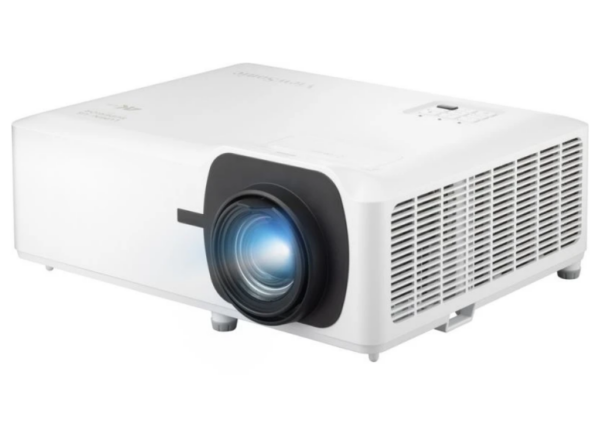

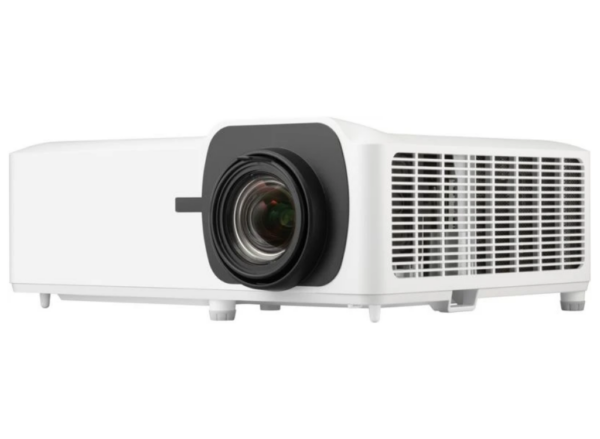

ViewSonic LS901HD 1080p Laser Installation Projector – 6000 Lumens

• Description
• Specifications
• Downloads

• ViewSonic LS901HD 1080p Laser Installation Projector​ – 6000 Lumens

  Introducing the LS901HD from ViewSonic’s Luminous Superior Series, tailored for expansive venue displays. Featuring a robust 6,000 ANSI Lumens brightness and high native contrast provided by a 0.65” DMD chip through DLP technology, it delivers stunning visuals on screens up to 300-inch. With a 1.7x optical zoom, it allows for a flexible setup to suit various installation needs, and the vertical lens shift and H/V keystone adjustment make the process a breeze. Additionally, portrait mode and 360° projection capabilities cater to more advanced requirements. Comprehensive LAN control ensures seamless integration into existing device management networks. The projector also features HDMI 2.0b, allowing you to enjoy original 4K quality content with HDR and HLG support. Employing advanced 3rd generation laser phosphor technology, the LS901HD boasts a remarkable 30,000-hour lifespan, reducing maintenance costs for both business and educational institutions.

  Brilliant Visuals for Large Venues
  With an impressive 6,000 ANSI Lumens, the LS901HD ensures clear visuals even in brightly lit environments. Its 1080p resolution provides stunningly detailed images, enhancing the impact of presentations, training sessions, and events. This makes it the preferred choice for large venues such as auditoriums, receptions, training rooms, and indoor golf clubs.
  6,000 ANSI Lumens, 1080p FHD


  Unmatched Contrasts, Enhanced Visibility
  Experience enhanced visuals with the LS901HD, boasting high contrast thanks to DLP technology and an advanced 0.65″ DMD chip from Texas Instruments. This provides deeper blacks and richer depth, ensuring an exceptional viewing experience.
  High Native Contrast Ratio


  Bright, Compact, Durable
  The LS901HD incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.
  3rd Generation Laser Phosphor Technology


  Ultra-Large Screen with Lower Cost-per-Inch
  This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.​
  Up to 300”


  Enhanced Installation Flexibility
  Equipped with a 1.7x optical zoom, the projector allows users to choose the most ideal set-up location within a range, getting the desired image size without needing to change the existing interior design. ​
  1.7x Optical Zoom


  Convenient Placement Setup
  The tool-free lens shift control knobs allow you to adjust the projection up and down without moving the projector. It provides flexible installation options with an adjustable range (V: – 21%) and minimal placement restrictions.
  V Lens Shift


  Get ​​Perfectly-Shaped Images Effortlessly
  Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.
  H/V Keystone Correction, 4-Corner Adjustment


  Centralized Control for Management Efficiency
  The LS901HD is compatible with Crestron, AMX, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency​.
  Comprehensive LAN Control


  HDMI 2.0b Supporting 4K/HDR/HLG
  The projector comes with an HDMI 2.0b/ HDCP 2.2 port, providing you access to original 4K quality content with HDR/HLG supported at a 60Hz frame rate from external devices (e.g. Roku stick, 4K Blu-ray player), producing the brightest whites, deepest blacks, and more detailed visuals.


  Brilliant Colors for an Authentic Golf Experience
  Powered by ViewSonic’s advanced color-tuning technology, the projector features a dedicated Golf Mode that enhances colors, especially greens and blues, more vivid and brings fairways and putting surfaces to life with striking realism, creating a golf experience that feels as close to reality as possible.
  Golf Color Mode


  Upgrade Your Projector with Wireless Content Casting
  Enhance your projector with the ViewShare Wireless Screen Casting Kit for seamless wireless content sharing. The projector’s built-in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power charging without adapters.
  ViewShare​, USB-A Power Supply


  Reliable Long-Term Performance with DLP Projection Technology​
  With DLP technology, the LS901HD maintains consistent color performance over time, free from any yellowing issues. Featuring a sealed engine design, it is filter-free, preventing dust from affecting internal components and ensuring minimal maintenance. Moreover, it offers crisp and seamless image quality, displaying remarkable contrast and eliminating the noticeable screen-door effect.


  Versatile Creative Application​s​
  The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors. Its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.
  360° Projection, 90° Portrait Mode


  A Simpler Way to Update Projector Software
  Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop. This efficient solution, developed exclusively by ViewSonic, ensures optimal performance without the hassle.


  Dimensions & I/O Ports​

  1-Front IR
  2-Lens
  3-Focus Ring
  4-HDMI 1.4/HDCP 1.4
  5-HDMI 2.0/HDCP 2.2
  6-USB-A (5V/1.5A, Service)
  7-Audio Out
  8-RJ45
  9-RS232
  10-Zoom Ring
  11-Lens Shift Control Knob
  12-Power Button
  13-Keypad
  14-Top IR

• Specification	Details
  Projection System	0.65″ 1080p
  Native Resolution	1920×1080
  Brightness	6000 ANSI Lumens
  Brightness (Center Lumens)	6600
  Contrast Ratio	3000000:1
  Display Color	1.07 Billion Colors
  Light Source Type	Laser Phosphor
  Light Source Life (Normal Mode)	20,000 hours
  Light Source Life (SuperEco Mode)	30,000 hours (Eco)
  Lens	F=2.3-3.0, f=17.63-27.9mm
  Projection Offset	154% +/- 10%
  Throw Ratio	1.2-2.04
  Optical Zoom	1.7X
  Digital Zoom	0.8x-2.0x
  Image Size	30″-300″
  Throw Distance	0.80-13.55m (100”@2.66m)
  Keystone	H:+/-30° , V:+/-30°
  Lens Shift V. Range	0%, -21%
  Audible Noise (Normal)	31dB
  Audible Noise (Eco)	25dB
  Input Lag	16ms
  Resolution Support	VGA(640 x 480) to 4K UHD(3840 x 2160)
  HDTV Compatibility	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
  Horizontal Frequency	15K-135KHz
  Vertical Scan Rate	23-120Hz
  Inputs and Outputs	Description
  HDMI	2 (HDMI 2.0/ HDCP 2.2, HDMI 1.4/ HDCP 1.4)
  Audio-out (3.5mm)	1
  Speaker	15W x2
  USB Type A (Power)	1 (5V/1.5A)
  Control	RS232 (DB 9-pin male): 1, RJ45 (LAN control): 1, USB Type A (Services): 1 (share with USB A Output)
  Others	Description
  Power Supply Voltage	100-240V +/- 10%, 50/60Hz (AC in)
  Power Consumption	Normal: 245W, Standby: <0.5W
  Operating Temperature	0~40℃
  Carton	Brown
  Net Weight	4.77kg
  Gross Weight	6.7kg
  Dimensions with Adjustment Foot	337x280x132mm
  Packing Dimensions	496x387x195mm
  OSD Language	27 languages including English, French, German, etc.
  User Guide Language	20 languages including English, S-Chinese, etc.
  Standard Accessory	Power Cord, Remote Control, QSG, Warranty Card (CN Only)
  Optional Accessory	Wall/Ceiling Mount: PJ-WMK-007

• Description	Downloads
  Datasheet	Downloads
