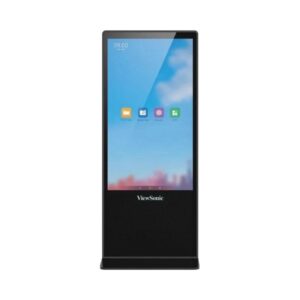

ViewSonic EP5540T 55″ All-in-One Digital ePoster

ViewSonic EP5540T

55 inch All-in-One Digital ePoster

• Description
• Specifications
• Warranty
• Downloads

• Product Overview
  The ViewSonic® EP5540T is a 10-point interactive, 55” 4K Ultra HD all-in-one free-standing digital ePoster kiosk with a sleek, slim design. Great for grabbing attention in busy, high-traffic areas, the EP5540T comes with a scratch-proof tempered glass faceplate for added durability. Featuring an IPS-type panel, 4K Ultra HD resolution, 178°/178° wide-angle viewing, 400-nit brightness, 1,200:1 contrast ratio, and dual 10W stereo speakers, the EP5540T delivers customized multimedia messaging with vivid clarity. Photo and video files can be played back using the embedded Quad-core media player and 16GB of internal memory, or add your own media player using the convenient media player cradle inside the lockable security door.

  Ultra HD Resolution
  With four-times the resolution of Full HD, this Ultra HD 3840×2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.

  Interactive On-Demand Messaging
  This display delivers on-demand interactive messaging with 10-point multi-touch capability. This display is the perfect e-catalog display solution for use as retail, information, and wayfinding kiosks in high-traffic areas.

  Interactive On-Demand Messaging
  This display delivers on-demand interactive messaging with 10-point multi-touch capability. This display is the perfect e-catalog display solution for use as retail, information, and wayfinding kiosks in high-traffic areas.

  Built-in Quad-core Media Player
  A powerful quad-core media player enables photo and video playback, while 16GB of onboard memory provides ample storage for files and multimedia content.

  Internal Scheduler
  An efficient, user-friendly scheduling interface is available via the on-screen display (OSD). Setup features include time and date scheduling, ensuring that messaging, images, and videos run smoothly and on time.

  Free Bundled vSignage CMS
  Great for updating content on ViewSonic ePosters* across an enterprise, vSignage Content Management System software lets users remotely transfer multimedia content from any Windows PC or laptop. This software also enables content scheduling and broadcasting cues, allowing you to effectively reach your target audience.

  *Compatible with ViewSonic ePosters (EP4320-2, EP5540 and EP5540T)

  Media Player Cradle with Lockable Security Door
  A convenient media player cradle can accommodate a PC or an additional mounted media player, while a lockable door keeps things secure and out of sight. The ePoster stand also features an integrated power supply, eliminating the need to find alternative outlets for add-on devices.

  Dual Integrated Speakers
  Designed with dual integrated speakers, this display combines incredible screen performance with stereo sound.

  Easy LAN Control
  This display has an integrated RJ45 connection that allows you to remotely set up and manage display content from a PC or laptop. You can also remotely turn the display on or off, or adjust the volume and other settings, via a user-friendly on-screen interface.

  Anti-scratch, Anti-glare Glass Faceplate
  This display features 7H scratch-resistant surface hardness that ensures a durable, consistent, high-quality viewing experience. In addition, an anti-glare film improves screen visibility in bright environments.


• Feature	Specification
  Screen Size	55 inches
  Viewable Area (in.)	54.6 inches
  Display Resolution	3840 x 2160
  Light Source	DLED
  Orientation	Portrait
  Static Contrast Ratio	1,200:1
  Brightness	400 cd/m²
  Viewing Angles	178º horizontal, 178º vertical
  Backlight Life (Hours)	30,000
  Response Time (Typical GTG)	6ms
  Panel Surface	7H/5mm Tempered glass
  Panel Type	IPS-Type
  Aspect Ratio	16:9
  Operation Rating	16/7
  Image Formats	BMP, JPG, PNG
  Video Formats	AVI, DAT, MKV, MOV, MP4, MPEG, MPG, RM, RMVB, TS
  Audio Formats	AAC, MP3
  Internal Speakers	10W (x2)
  3.5mm Audio In	1
  3.5mm Audio Out	1
  Ethernet LAN (RJ45)	1
  HDMI 2.0 In	2
  HDMI CEC	1
  VGA	1
  RS232 In	1
  USB 2.0 Type A	1
  USB 2.0 Type B	1
  USB 3.0 Type A	2
  Storage Capacity	16GB
  Storage Type	eMMC
  Touch Technology	Infrared
  Touch Points	10-Point Touch
  Voltage	100-240 VAC
  Consumption (max)	150W
  Consumption (typical)	117W
  Stand-by	<0.5W
  Temperature	32-104º F (0 – 40º C)
  Humidity (non-condensing)	20-80%
  Weight (lbs)	Gross: 187.4, Net: 154.3
  Weight (kg)	Gross: 85.0, Net: 70.0
  Packaging (in.)	38.7 x 79.3 x 24.3
  Physical (in.)	32.2 x 74.8 x 17.7
  Packaging (mm)	983.0 x 2016.0 x 618.0
  Physical (mm)	820.0 x 1900.0 x 450.0
  On Screen Display	Picture Mode, Contrast, Brightness, Hue, Sharpness, Saturation, Anti-Flicker, Backlight, Screen, Color temperature, Bluelight Filter, Zoom Mode, OverScan, Image NR
  Remote Control	Sound Mode, Bass, Treble, Balance, Surround, Alone, MHL Auto Switch, Menu Timeout, Date/Time, Off Timer, On Timer, Sleep Time, Set Password, System ID, Lock Keypad, Lower Power Standby, Restore To Default
  Regulations	FCC/cTUVus/BSMI
  Package Contents	EP5540T Kiosk, Power Cord, Remote Control with Battery, Quick Start Guide, User’s Guide, Door Key
  Recycle/Disposal	Please dispose of in accordance with local, state, or federal laws.
  Warranty	One-year limited warranty on parts, labor, and backlight
  Classification	Discontinued

• Warranty

  ViewSonic provides customers with the security of a manufacturer’s warranty against defected products. We are keen to provide our customers with great peace of mind and confidence in our product. With that in mind, we are now providing 3 years limited warranty on selected*
  ViewSonic Interactive ViewBoards.



• Document	Downloads
  EP5540T Datasheet	Download
  EP5540T User Guide	Download
