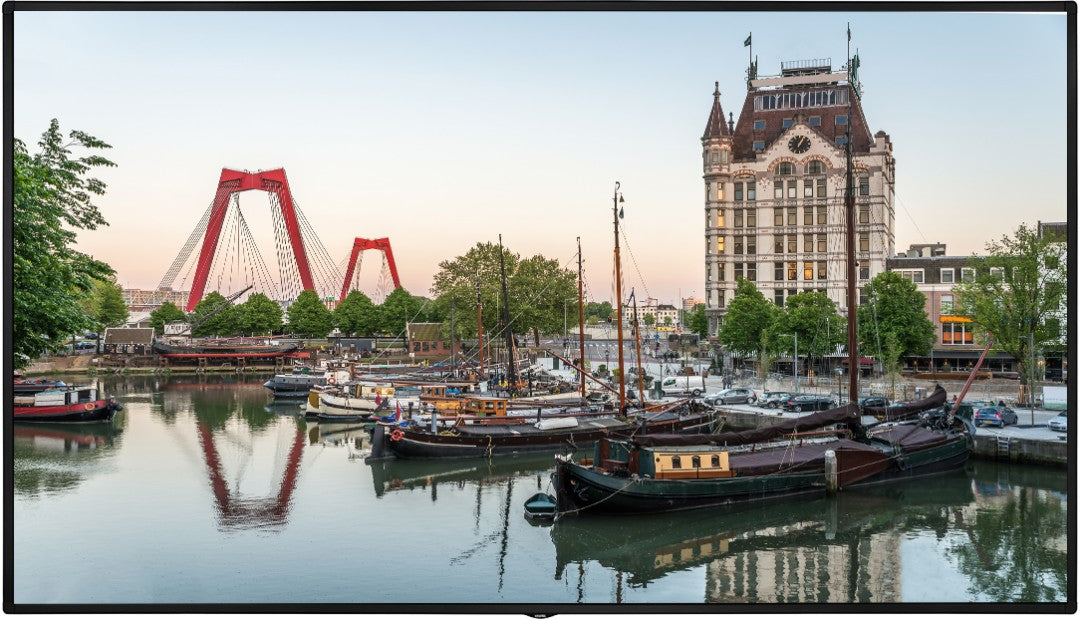

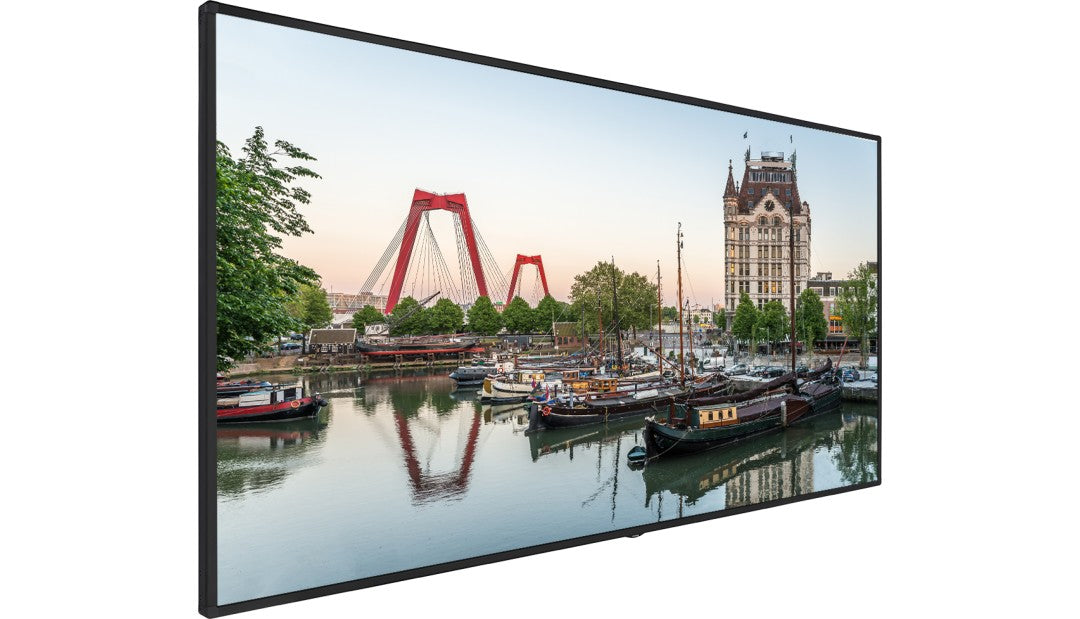

Vestel XN98D-4H 98″ 4K Ultra HD Android Digital Signage Display
Vestel XN98D-4H 98″ Ultra HD Android Digital Signage Display
High-Brightness 500 cd/m2 – 24/7 Operation Hours
- Description
- Specifications
- Warranty
- Downloads
-
Daisy Chain
The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.
Usb Security
This series lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.
Usb Auto-Play
You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.
Subtle Design
This series’ displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb cover, OPS-slot, detachable power plug, carrying handles and IR extender.
Signal Failover
Our displays have a protection for “No Signal”. If the source is disconnected, the display will either show your customized banner or search for any other signal from video sources. Since blank screen is the worst case scenario for advertisement, failover is one of the critical feature in our signage displays.
Pixel Shifting
The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.
Open Platform Support
Our SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on our displays.
External Device Connections
You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, our monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.
Display Control
Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time. -
Category Details Panel Screen Size 98″ Panel Technology IPS Backlight Type DLED Brightness (typical) 500 cd/m² Native Resolution 3840 x 2160 (16:9) – UHD Contrast Ratio (typ.) 1200:1 (typ.) Dynamic Contrast Ratio 50000:1 Panel Life Time (Min.) 50000 Hrs Response Time (typ.) 8 ms Active Area (H x V) 2158.8 (H) x 1214.4 (V) mm Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 Color Value 1.07G (8 bit + FRC) Color Gamut 72% NTSC Haze Level 25% Refresh Rate 60 Hz Orientation Landscape / Portrait Operation Hours 24/7 Area of Usage Indoor Built-in System Mainboard Model 17MB400VS Operating System Custom OS (built on Android AOSP) Memory 2 GB DDR4 Storage 16 GB eMMC Additional Storage Micro SD (up to 1TB) CPU Quad-Core ARM Cortex-A55 GPU ARM Mali-G31 MP2 Wired Ethernet 10/100/ Mbps Ethernet, IEEE 802.1X Authentication WiFi WiFi 5 (802.11 a/b/g/n/ac) – (via USB Dongle), IEEE 802.1X Authentication Bluetooth BT 5.1 – (via USB Dongle) HTML5 Browser Vewd Wireless Display Miracast Monitor Connectivity Video Input 4xHDMI2.0, 1xUSB-A 3.0, 1xUSB-A 2.0, 1xUSB-A 2.0 (Internal), 1x Micro USB Video Output 1xHDMI2.0 Audio Output Headphone, Optic SPDIF External Control RS232 (3.5mm jack green), Fast Ethernet (RJ45), Service (RJ12) External Sensor RJ12 Mechanical Product Dimensions (WxDxH) 2216 x 98 x 1292 mm Package Dimensions (WxDxH) 2423 x 380 x 1563 mm Product Weight 102.2 kg Package Weight 126.6 kg Vesa Mounting 800 (W) x 400 (H) mm M8 Bezel Width B/T/L/R: 21.4 mm Environmental Conditions Operating Temperature 0-40°C Operating Humidity 10-90% Power Power Supply 110 VAC – 240 VAC – 50/60 Hz Power Consumption Typical: 550 W Maximum: 600 W Deep Standby: ≤0.5 W Features Main Features HTML5 CMS Launcher, Android CMS Launcher, Open Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Wakeup, Auto-switch on Failover, Panel Lock, OSD and UI Rotation, Video Rotation, NoSignalPowerOff, Pixel shift, Scheduler, Videowall support, Remote control via LAN, Real Time Clock, SNMP Mechanical Features Joystick, Rocker Switch, Detachable Power Cable, Detachable Logo, Internal USB Cover Speaker 2×12 W Accessory Standard QSG, IB, Power cord, Remote control unit, RC battery, Mounting kit, IR extender cable, WiFi/BT Dongle Certification Safety Yes EMC Yes CE Yes -
Warranty Period: 3-year on-site swap out
UK Mainland De-Install/Re-Install Warranty.Vestel Digital Signage Displays offer a large range of large format displays for use in commercial applications from reception, and conference rooms to classrooms backed by a 3 Year On-Site UK Mainland Warranty.
They have displays operating from 16 hours per day to non-stop usage displays ideal for the transport industry.
If you need to discuss your warranty period, please contact us.
-
Description Downloads Specification Sheet Downloads Commercial Datasheet Downloads Detailed Mechanical Drawing Downloads Wall Mount Drawing Downloads
