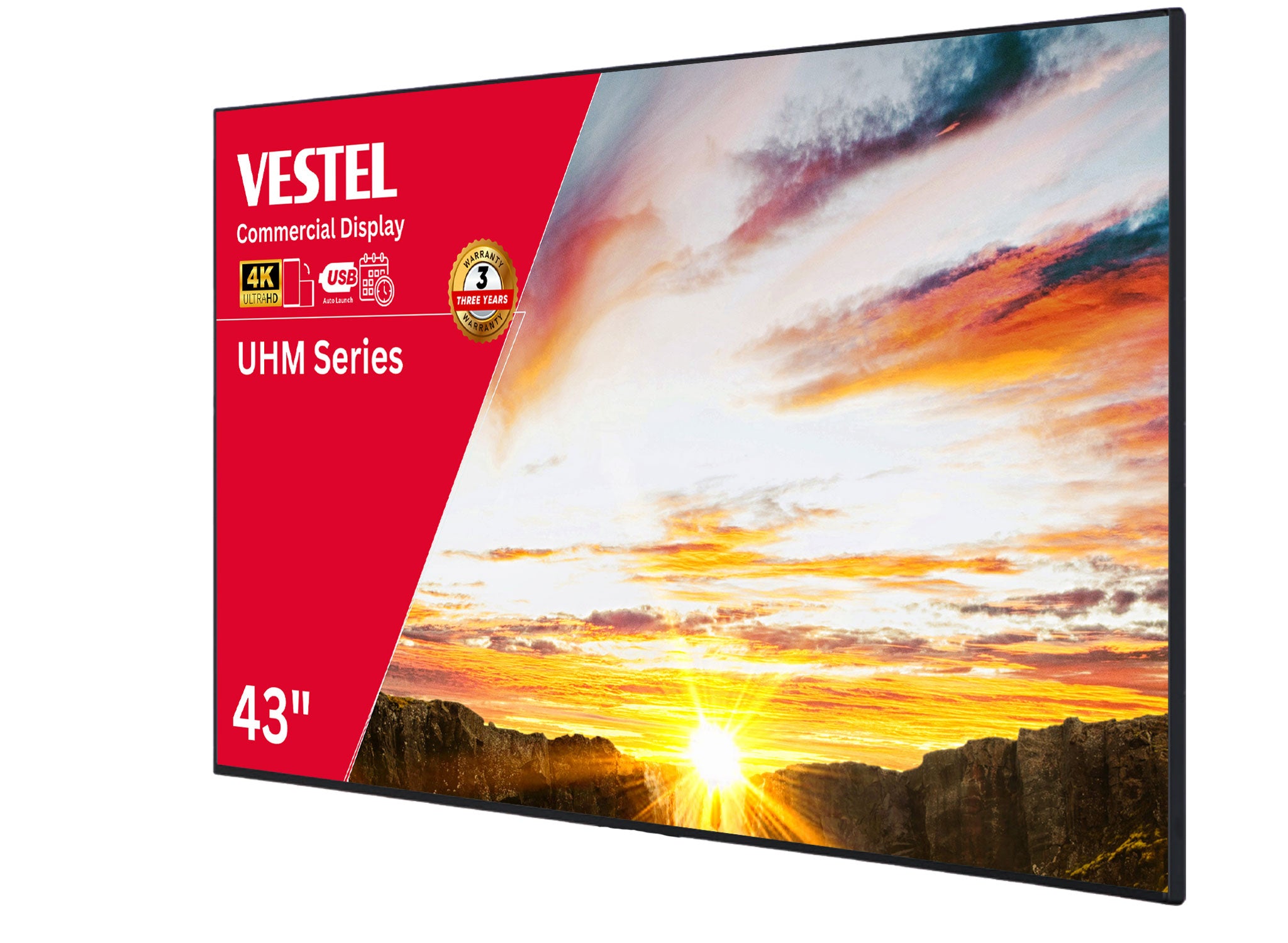

Vestel 43″ UHM43 Series 4K Professional Digital Signage Display
Vestel UHM43UH82/4 43″ UHM Series Digital Signage Display
High-Brightness 400 cd/m2 – 16/7 Operation Hours
- Description
- Specifications
- Warranty
- Downloads
-
Display Control
Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.
Daisy Chain
The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.
Built-in Connectivity
This series features wired and wireless connectivity such as embedded WiFi and Bluetooth. Due to the wireless capabilities, the displays can easily gather its content without any external device. Moreover, WiFi allows screen sharing to be enjoyed with Miracast.
Auto Launch
We have made it easy to give any HTML5-based application link to the display within the SoC software. Upon this, the display will start with the given link. The application can either be an offline or an online application, allowing the customers to execute their own application.
Usb Auto-Play
You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.
Scheduler
The built in scheduler is one of the many important included features. The scheduler allows you to plan daily routines of when the display is powered on or off, along with selection of different sources or USB playlists. -
Specification Value Screen Size 43″ Panel Technology IPS Backlight Type Direct-Type LED Brightness (typical) 400 cd/m² Native Resolution 3840 x 2160 (16:9) – UHD Contrast Ratio (typical) 1200:1 Dynamic Contrast Ratio 40000:1 Response Time (typical) 8 ms Active Area (H x V) 941 x 529 mm Pixel Pitch (H x V) 0.2451 x 0.2451 mm Color Value 1.07G (8bits + FRC ) Screen Treatment 3H Haze Level 1% Refresh Rate 60 Hz Orientation Landscape Operation Hours 16/7 Area of Usage Indoor Viewing Angle 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 Mainboard Model Indoor 17MB135VS RGB Input VGA(DE-15F) RGB Output N/A Video Input 4xHDMI2.0, 2xUSB2.0, USB2.0(Internal) Video Output HDMI2.0 Audio Input Line In L/R Audio Output Headphone, Optic SPDIF External Control RS232(DE-9F), Ethernet(RJ45), Service(RJ12) External Sensor RJ12 Product Dimensions (WxDxH) 966 x 106 x 557 mm Package Dimensions (WxDxH) 1050 x 178 x 718 mm Product Weight 10.3 kg Package Weight 13.65 kg Vesa Mounting 200 x 200 mm – M6 Bezel Width B:13 | T:9 | L/R:10 mm Operating Temperature 0-40°C Operating Humidity 10-90% Power Consumption Typical 96 W Maximum 160 W Deep Standby ≤0.5 W Main Features Open Content Management Support, Scheduler, USB-Autoplay, AutoLaunch, HDMI-CEC, HDMI-Wakeup, Auto-switch on Failover, Panel Lock Mechanical Features Joystick, IR Extender Support, Rocker Switch, Detachable power cable, Carrying slots, Detachable logo positioning, Internal usb cover, Cable Holder Optional Features OPS Compliance, IR Overlay Touch Speaker 2 x 8 W Certification Safety YES, EMC YES, CE YES -
Warranty Period: 3-year on-site swap out
UK Mainland De-Install/Re-Install Warranty.Vestel Digital Signage Displays offer a large range of large format displays for use in commercial applications from reception, and conference rooms to classrooms backed by a 3 Year On-Site UK Mainland Warranty.
They have displays operating from 16 hours per day to non-stop usage displays ideal for the transport industry.
If you need to discuss your warranty period, please contact us.
-
Specification Sheet Downloads Commercial Datasheet Downloads Detailed Mechanical Drawing Downloads Wall Mount Drawing Downloads
