• Veracity PINPOINT Setup/Focus Adaptor for POE-Powered IP Cameras

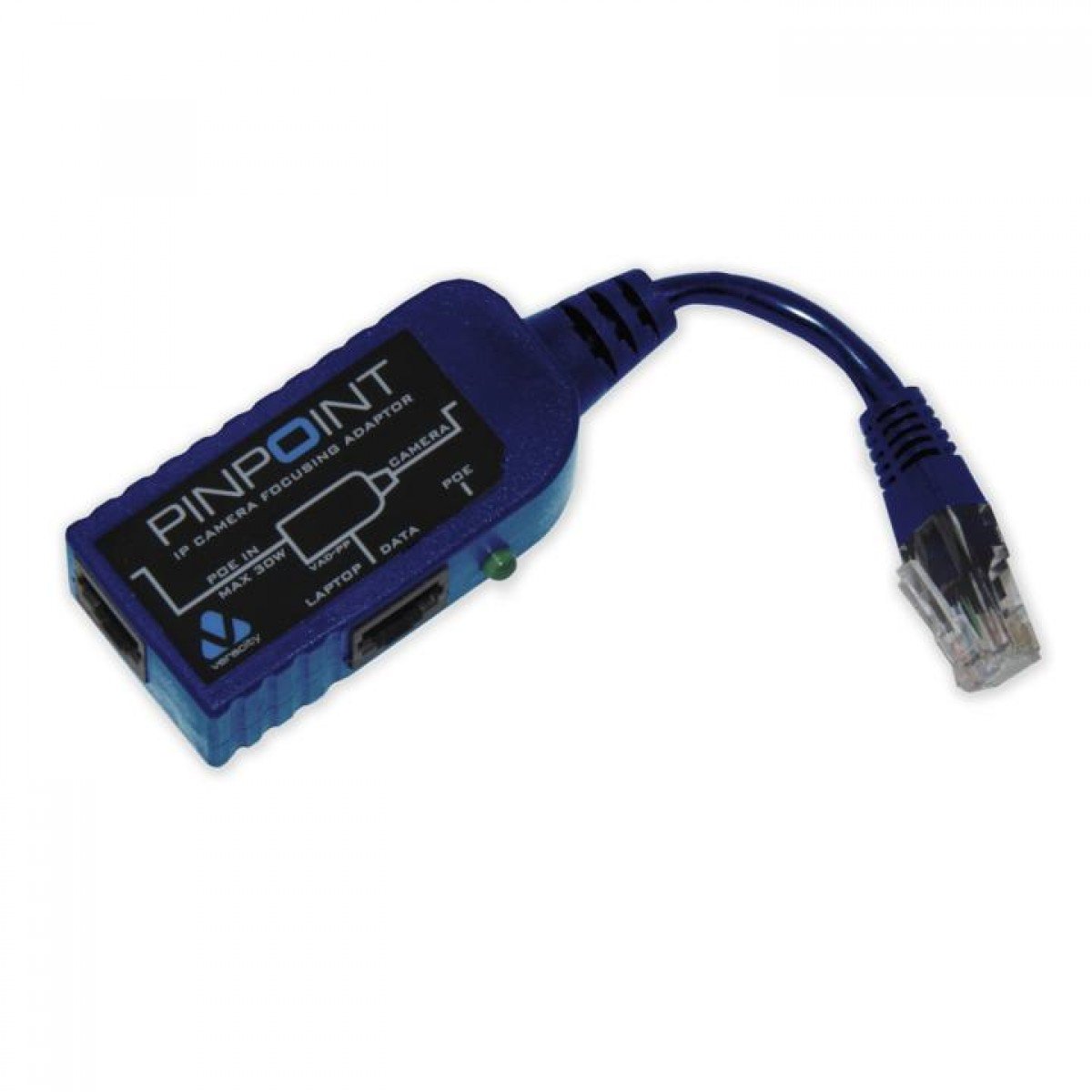

  PINPOINT Setup/focus adaptor for POE-powered IP cameras
  The Veracity Pinpoint IP Camera Setup Adaptor is an IP video installation tool for viewing and configuration of IP PoE cameras using a laptop or other portable device, without removing the camera from the network and losing PoE power. Compared to the trial-and-error process where an installer works with a partner in the control room communicating via phone or radio, the adaptor can be installed by a single installer in less time enabling precise camera configuration for the best image possible.

  Universally compatible, the Pinpoint IP Camera Setup Adaptor supports IEEE 802.3af PoE, POE Plus, non-standard types of PoE up to 30W, 10BASE-T and 100BASE-TX Ethernet. The compact adaptor (65 x 32 x 20 mm) also features an LED that indicates PoE.
  – IP video installation tool for viewing and configuration of an IP PoE camera using a laptop or other portable device
  – Installation without removing camera from the network and losing PoE power
  – Time-saving method for accurately focusing IP PoE cameras with a standard Cat5E patch cable
  – IEEE 802.3af PoE, POE Plus, non-standard types of PoE up to 30W, 10BASE-T and 100BASE-TX Ethernet
  – Compact adaptor (65 x 32 x 20 mm)
  – LED indicator for PoE

• Category	Details
  Design	External, LED Indicators: Yes
  Certification	CE, FCC, RoHS Compliant
  Internal	No
  Legal Information	EU ECCN Code: N/A
  	UNSPSC Code: 43201404
  	US ECCN Code: 5A992
  Network	Cabling Tech: 10/100BaseT(X)
  	Ethernet LAN: Yes
  	Max Data Rate: 100 Mbit/s
  	Standards: IEEE 802.3/802.3af/802.3at/802.3u
  Operational Conditions	Temperature: -10 to 70°C
  Other Features	Connectors: 2 x PoE RJ-45, 1 x RJ-45
  	LED Indicators: Link/Act, Power
  Package Dimensions	Depth: 13.6 cm
  	Width: 19.5 cm
  	Height: 4.1 cm
  	Gross Weight: 0.124 kg
  Ports & Interfaces	Connectivity: Wired
  	Ethernet Ports: 3 x RJ-45
  	Host Interface: RJ-45
  	Interface: Ethernet
  Product Dimensions	Depth: 3.2 cm
  	Width: 6.5 cm
  	Height: 2 cm
  	Net Weight: 0.094 kg
  Sustainability	Certificates: RoHS
  Vendor Information	Brand: Veracity
  	Warranty: 2 Years
  Categories	Surveillance & Security, Recorders & Servers, Accessories, Networking Cards

• Description	Downloads
  Veracity PINPOINT Setup/Focus Adaptor for POE-Powered IP Cameras | VAD-PP DataSheet	Downloads
