Veracity Fast Ethernet and POE Over Coax Converter | VHW-HWPS-C

• Description
• Specifications
• Downloads

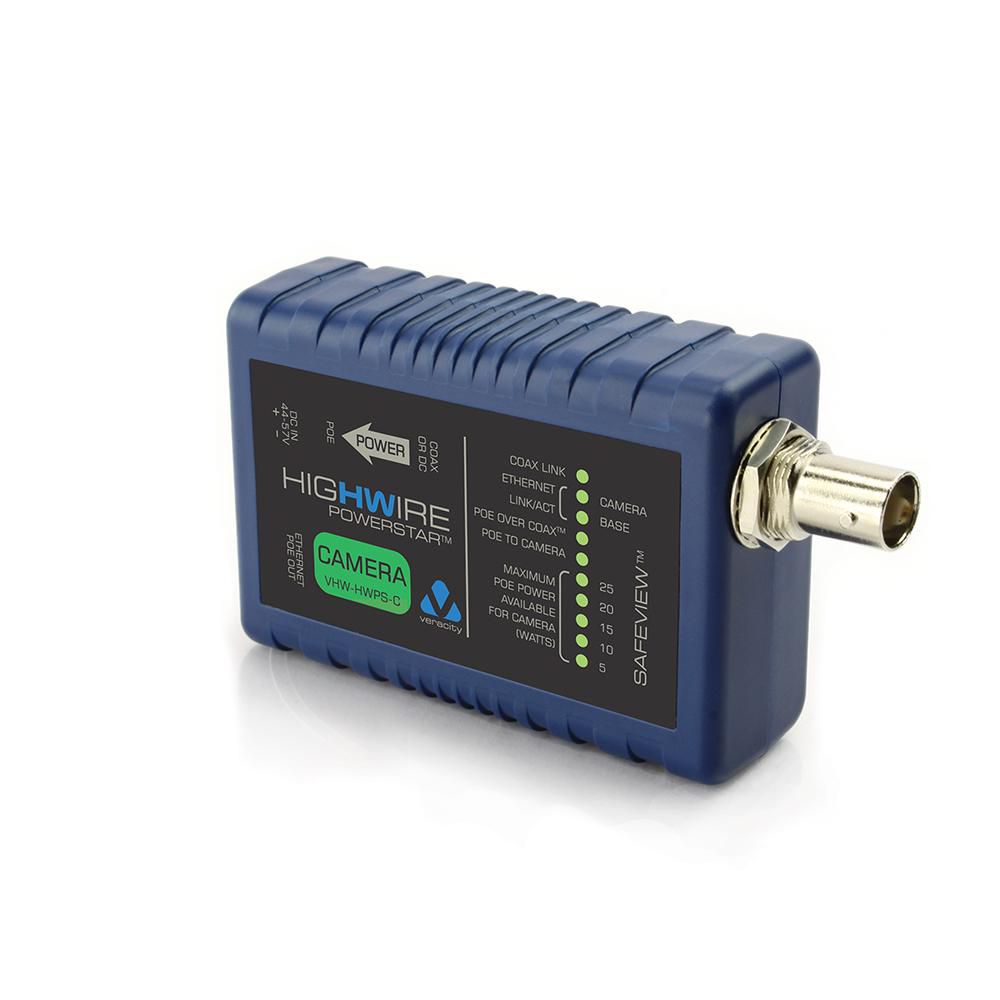

• Veracity Fast Ethernet and POE Over Coax Converter


  Fast Ethernet and POE over coax converter
  HIGHWIRE Powerstar Ethernet & PoE Over Coax Camera Unit. HIGHWIRE PowerStar lets you install IP cameras easily, quickly, and reliably, without the disruption and expense of installing new cable. Support for your camera is assured, thanks to HIGHWIRE’s unique full-rate Ethernet over Coax technology.

  – Veracity’s unique SafeView ™ display provides an instant and easy-to-understand confirmation of network and power status.
  – HIGHWIRE Powerstar lets you install IP cameras easily, quickly & reliably with no disruption and new cable costs, with up to 25W POE power over coax to the camera without using local power supplies.
  – Veracity’s unique SafeView display provides instant, easy-to-understand confirmation of network and power status right across the cable, with no need to access remote equipment to check connections.

• Category	Specification
  Certificates	Certification: FCC, CE, RoHS
  	Compliance: RoHS
  Design	Certification: FCC, CE, RoHS
  	Internal: Yes
  	LED Indicators: Yes
  	Product Colour: Blue
  Legal Information	EU ECCN Code: N/A
  	US ECCN Code: 5A992
  	UNSPSC Code: 43201553
  Logistics Data	HS Code: 85176990
  Network	Auto-Negotiation: Yes
  	Converter Input: 100Base-T
  	Duplex System: Full
  	Ethernet LAN Data Rates: 100 Mbps
  	Max Data Transfer Rate: 100 Mbps
  	Standards: IEEE 802.3af/at
  Operational Conditions	Temp (Op): -10 to 50°C
  	Storage Humidity: 0 – 85%
  Package Dimensions	Depth: 7.5 cm
  	Gross Weight: 0.118 kg
  	Height: 3.5 cm
  	Width: 12.8 cm
  Packaging Content	Manual: Yes
  	Quick Installation Guide: Yes
  Performance	Max Transfer Distance: 500 m
  Ports & Interfaces	BNC Ports: 1
  	Connectivity: Wired
  	Ethernet Ports: 1 (RJ-45)
  Power	Max Power Consumption: 25 W
  	Typical Power Consumption: 1.5 W
  	Power over Ethernet (PoE): Yes
  Product Dimensions	Net Weight: 0.091 kg
  	Depth: 10.3 cm
  	Height: 2.5 cm
  	Width: 5.4 cm
  Technical Details	HS Code: 85176990
  Sustainability	RoHS Certified
  Vendor Information	Brand: Veracity
  Categories	Main: Surveillance & Security
  	Subcategory: Infrastructure
  	Subcategory: Network Media Converters

• Description	Downloads
  Veracity Fast Ethernet and POE Over Coax Converter | VHW-HWPS-C DataSheet	Downloads
