V7 86” 4K Ultra HD Education Interactive Touchscreen With Android 11 – IFP8601-V7HM
- Description
- Specifications
- Downloads
-

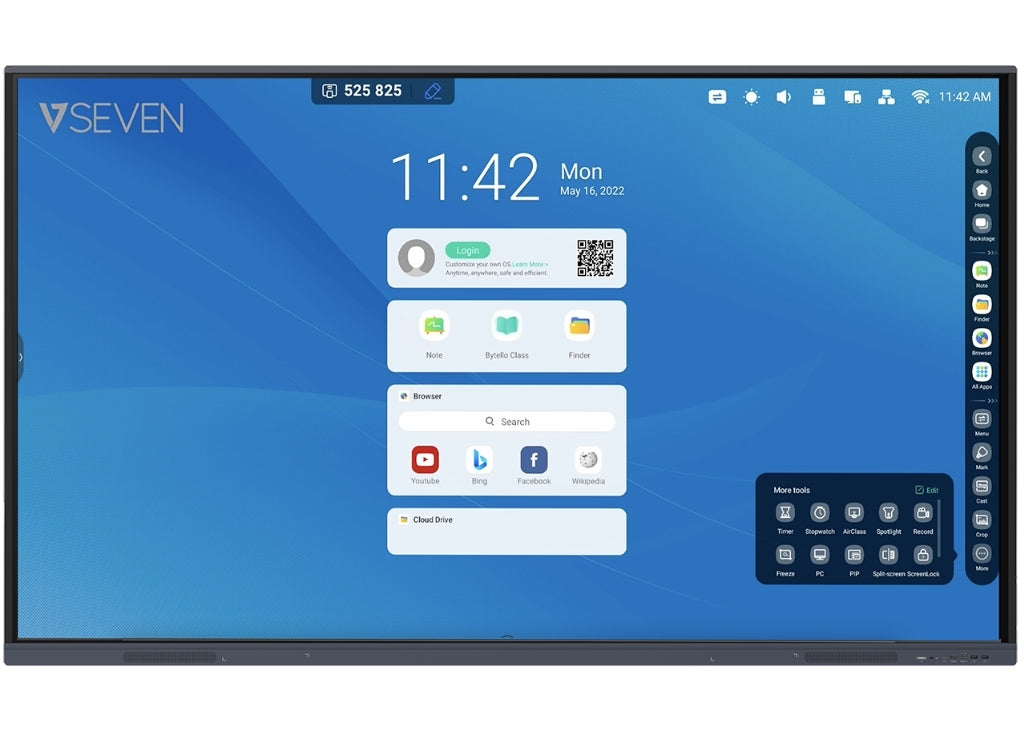

V7 86” 4K Ultra HD Education Interactive Touchscreen With Android 11
V7 Interactive 4K displays allow users to easily collaborate, save and share ideas interactively and digitally in meeting rooms and classrooms. It is optimal for leading classrooms or meetings including whiteboard, note taking, web browser, screen sharing and recording, and more. With Bytello Share, you can share and receive content between the Interactive Display and Windows, Mac OS, Chrome OS, Android, and iOS Devices using the included application or using Miracast, ChromeCast or AirPlay (up to 9 devices split screen at one time). Bytello DMS software included for bulk remote management, status monitoring, volume control, broadcasting and more. With one USB-C cable users can share content, allow 2-way touch, and charge your device with 65W Power Delivery. Connect to a variety of resources and provide a great interactive multimedia environment with 20 point touch, two 16 watt speakers, and a multitude of ports including USB, video, Bluetooth and wired/wireless networking. This model includes HDMI Out.
Key Features
Android 11 system with easy to use built in applications for leading classrooms and meetings interactively with the audience
4K Interactive Touch Display with 20 point touch
Wired and Wireless Networking included with Internet access and screen sharing to and from almost any device
USB-C connection allows screen sharing, 2-way touch, and charges your device with 65W Power Delivery with one cable
2 x 16W Speakers and Bluetooth wireless Connectivity
5 year subscription of Bytello DMS software included for bulk remote management

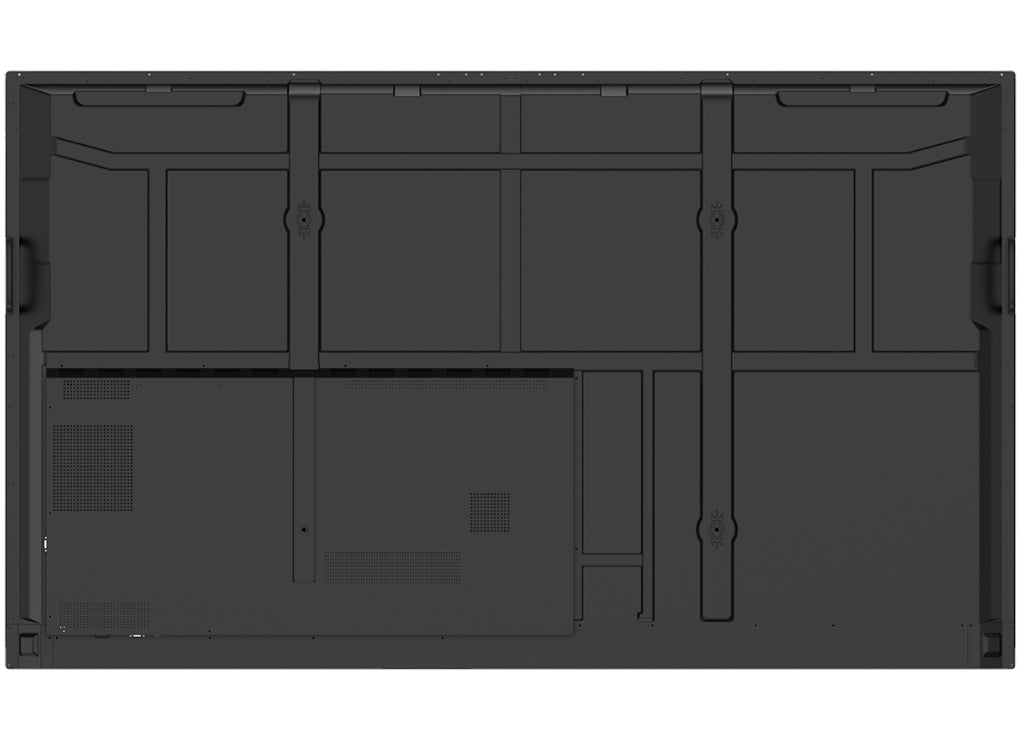

Includes heavy duty wall mount for fast deployment
Includes 8 GB RAM, 64 GB ROM and HDMI Out
https://www.youtube.com/watch?v=svKwXKfAXLw -
Category Specification Technical Specifications TECHNICAL Aspect Ratio 16:9 Dynamic Contrast Ratio 4000:1 Input Port Audio 35mm, USB, USB-C, VGA, HDMI Power Input AC 100V-240V 50-60Hz Pixel Pitch (H/V) 493.5 x 493.5 Power Consumption Maximum 520W, Energy Star 123.12W, Standby ≤0.5W Speaker 2 x 16W Operating Humidity 10% – 90%RH Operating Temperature 0℃ – 40℃ Package Type One Color Brightness 400 nits Viewable Screen Size 86 in Panel Type IPS Response Time 8 ms Speaker Output Power 2 x 16W Contrast Ratio 1200:1 Storage Humidity 10% – 90%RH Storage Temperature -20℃ – 60℃ VESA Mount 800 x 600 mm Viewing Angle 178°H / 178°V Power Delivery 65 Watts DESIGN Color Black GENERAL INFO Compliance CE, Energy Star, FCC, RoHS, UL, TUV, WEEE Country Of Origin China EAN 662919115871 Model IFP8601-V7HM Package Includes Interactive Display, 3m US power cord, 3m Schuko power cord, 3m UK power cord, 1.8m USB-C Cable, 3m HDMI cable, 2 Writing Pens, 1 Remote Control with 2 AAA batteries, Quick Start Guide, Heavy Duty Wall Mount, 802.11ac (2T2R) Wi-Fi Module Warranty 5 years PACKAGE DIMENSIONS Package Dimensions (L/W/H) 83.07 x 8.86 x 50.51 in (2110 x 225 x 1283 mm) Package Weight 167.33 lbs (75.9 kg) PRODUCT DIMENSIONS Product Dim (L/W/H) 77.05 x 3.94 x 45.67 in (1957 x 100 x 1160 mm) Product Weight 129.08 lbs (58.55 kg) ANDROID SYSTEM Android Version Android 11.0 4K UI CPU A55 x 4 GPU ARM Mali G52 MP 2 RAM 8 GB DDR3 ROM 64 GB SPECIFICATIONS Surface Treatment Haze 25%; Anti-glare treatment Light Sensor Automatic brightness adjustment Backlight Unit D-LED Connectors HDMI Input x 3, HDMI Output x 1, USB 2.0 x 1 (for Software update only), USB 3.0 x 4 – 2 front (with passthrough in/out) + 2 rear, USB-C – x 1 (65W PD, DP 1.4, Touch) pass through), VGA In x 1, Touch out – USB 3.0 x 2, Audio in/out – 3.5mm x 1, SPDIF x 1, WIFI – 802.11ac (2T2R) Wi-Fi Module Included with Hotspot, LAN(RJ45) – 10/100/1000Mbps LAN both in & out auto switch, RS232 – DB9 x 1, OPS Slot -80 Pins, Bluetooth 5.0 TOUCH SYSTEM SOFTWARE Sensing Type Infrared Recognition OS Compatibility Windows, Linux, Mac OS, Android, Chrome Bonding 0 Gap Touch Tool Finger, Passive infrared pen Touch Accuracy ±1mm 90% area Touch Point 10 Writing, 20 Touch Touch Height 1.5mm Touch Drive Free drive Simultaneous Writing With Two Pens Yes, with two different colors Response Time 8 ms Writing Height 2mm Glass Type G1S Anti-Glare Glass Thickness 3 mm Glass Hardness 9H Interpolation Resolution 32767 x 32767 SOFTWARE OVERVIEW Features Advanced interactive multimedia presenting platform, Screenshare Pro, Finder & Cloud Drive, WPS Office, Mark, Web Browser, Screen Recording, Air Class, Crop, Timer, Spotlight, Stopwatch, Freeze, Screenlock, Palette, Keeper, OTA Software Update, Remote Management ADDITIONAL INFO Included Accessories Interactive Display, 3m US power cord, 3m Schuko power cord, 3m UK power cord, 1.8m USB-C Cable, 3m HDMI cable, 2 Writing Pens, 1 Remote Control with 2 AAA batteries, Quick Start Guide, Heavy Duty Wall Mount, 802.11ac (2T2R) Wi-Fi Module -
