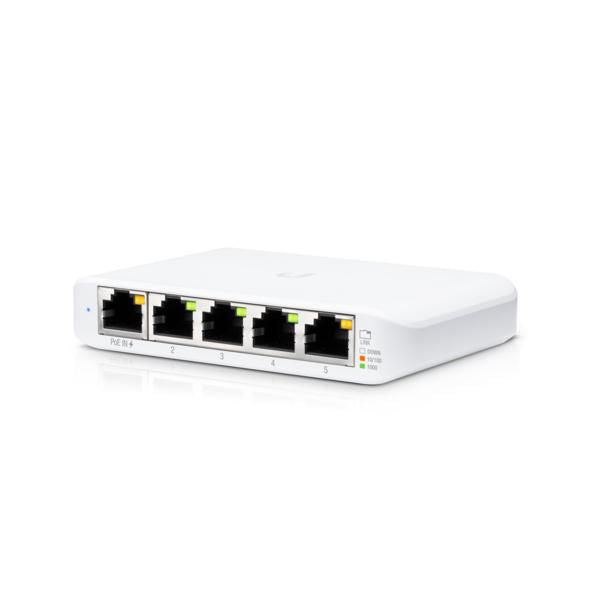

Ubiquiti USW-FLEX-MINI-3 Flex Mini Managed Switches

• Description
• Specifications

• Ubiquiti USW-FLEX-MINI-3 Flex Mini Managed Switches


  A compact, 5-port, Layer 2 switch that can be powered with PoE or a 5V USB-C adapter.
  (4) GbE ports
  (1) GbE PoE input port for power
  Optional powering with included 5V, 1A USB-C adapter

• Mechanical	Specifications
  Dimensions	107.2 x 70.2 x 21.2 mm (4.2 x 2.8 x 0.8 inches)
  Weight	150 g (5.3 oz)
  Enclosure material	Polycarbonate

  Hardware	Specifications
  Management interface	Ethernet In-Band
  Networking interface	(5) GbE RJ45 ports
  Total non-blocking throughput	5 Gbps
  Switching capacity	10 Gbps
  Forwarding rate	7.44 Mpps
  Power method	USB Type C, 5V
  PoE/PoE+	44—57V DC, 0.05—0.04A
  Power supply	5V, 1A power adapter*
  Supported voltage range	USB Type C: 4.7—5.3V DC
  	PoE/PoE+: 44—57V DC
  Max. power consumption	2.5W
  ESD/EMP protection	Air: ± 16kV, contact: ± 12kV
  Button	Factory reset
  Operating temperature	-5 to 45° C (23 to 113° F)
  Operating humidity	10 to 90% noncondensing
  Certifications	CE, FCC, IC

  LEDs	Specifications
  System	Status
  Ethernet	Speed/link/activity

  Application Requirements
  UniFi Network	Version 5.12.5 and later
