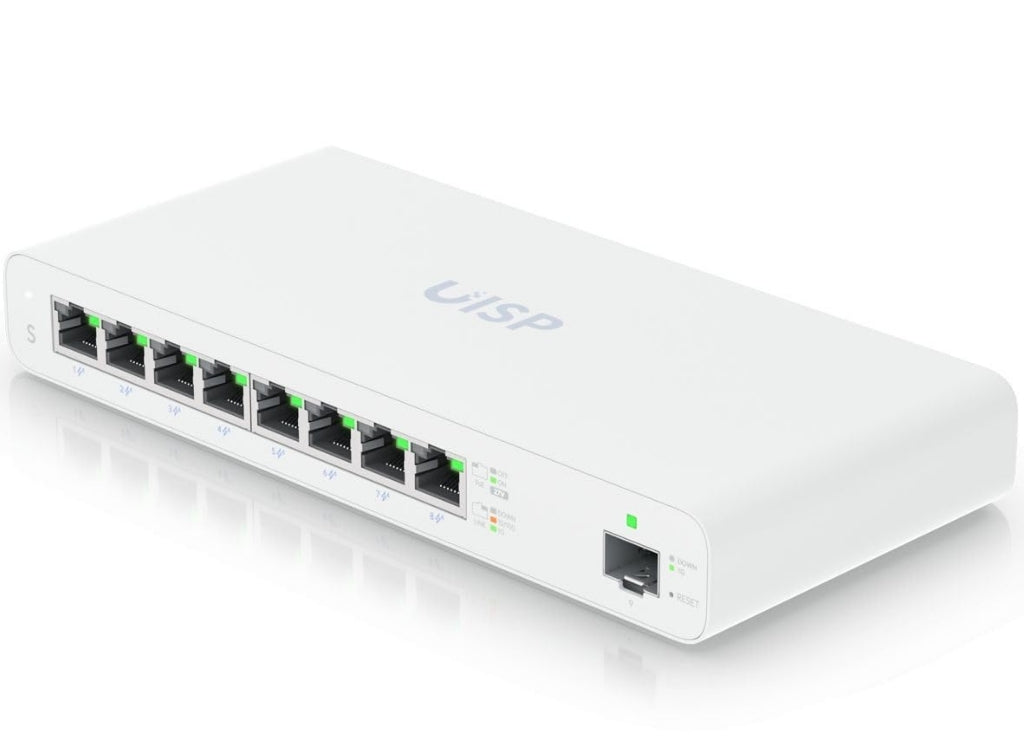

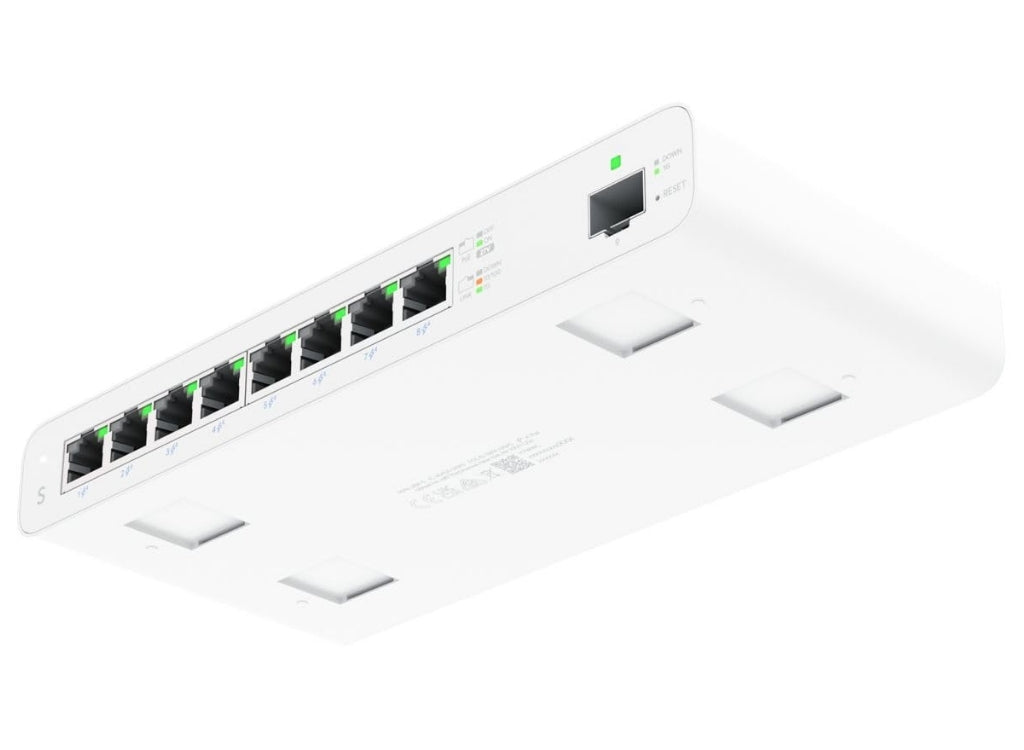

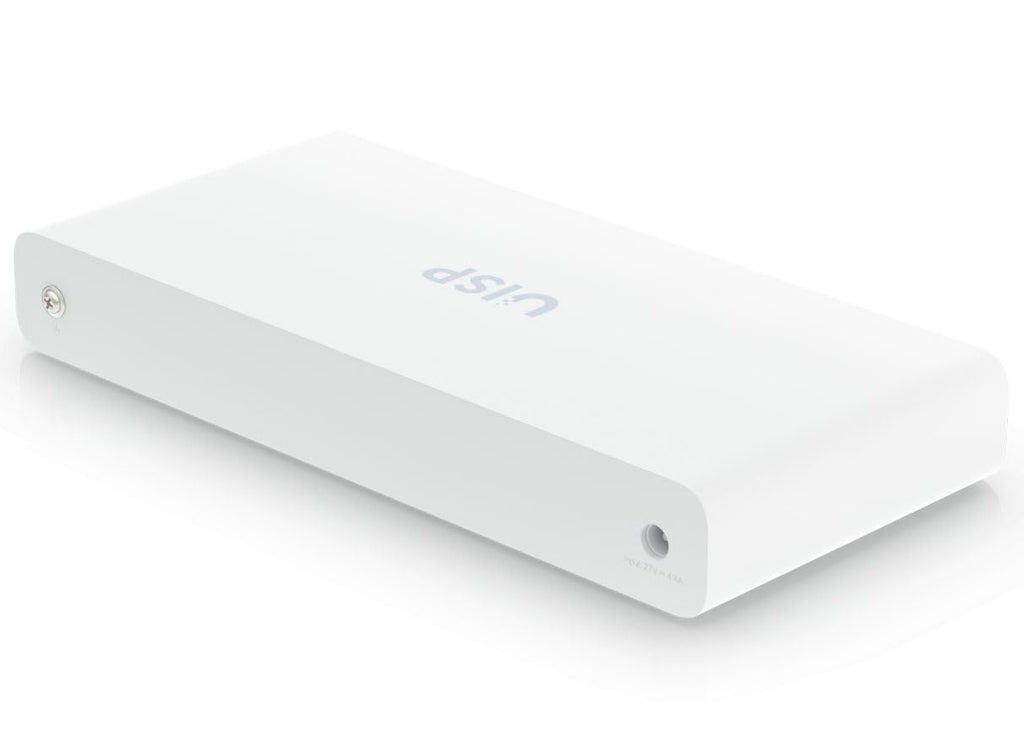

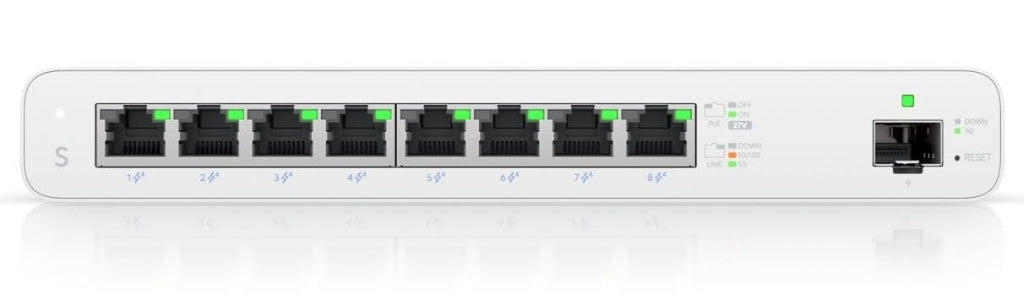

Ubiquiti UniFi UISP Switch Gigabit PoE Switch
Gigabit PoE switch for MicroPoP applications.
Ideal for wireless ISP (WISP) deployments, the UISP™ Switch is a fanless, Layer 2 PoE switch with GbE RJ45 ports and 1G SFP port for an additional fiber uplink option. The UISP Switch is a cost-effective solution for WISPs looking to quickly and inexpensively deliver Gigabit wireless speeds to their customers. With its hefty 110W total PoE supply, the UISP Switch delivers substantial power to every radio in your service network. For larger deployments, pair it with the UISP Console to create a cohesive routing and switching hub. The UISP Switch is managed with the UISP application, a centralized platform where you can monitor and manage all of your UISP devices.Works with the Ubiquiti Internet Service Provider (UISP™) Application
Centrally manage your networks and customers with ease
Organize your subscription plans, setup billing and invoicing, and grow your customer base
View your network’s topology, advanced analytics, and more
Set up devices quickly and manage them on the go with powerful mobile app support -
Category Specification Mechanical Dimensions 210.4 x 95 x 29 mm (8.3 x 3.7 x 1.1″) Weight 610 g (1.3 lb) Enclosure material Polycarbonate Hardware Total non-blocking throughput 9 Gbps Switching capacity 18 Gbps Forwarding rate 13.392 Mpps Networking interface (8) GbE RJ45 ports (1) 1G SFP port Management interface Ethernet In-band Bluetooth BLE Power method External AC/DC adapter Power supply 27V DC, 4.4A power adapter (included) Supported voltage range 24—28V DC Max. power consumption 8W (Excluding PoE output) ESD/EMP protection Air: ± 15kV, contact: ± 8kV Ambient operating temperature -10 to 50° C (14 to 122° F) Ambient operating humidity 5 to 95% non-condensing Certifications CE, FCC, IC PoE PoE interface (8) 27V passive PoE: 2-pair or 4-pair Total available PoE 110W Max. passive PoE wattage per port 30W/27V DC Passive PoE voltage range 27V DC LEDs RJ45 data ports PoE Speed/link/activity SFP data ports Link/activity Software Management application UISP: Version 1.4.0 and later -
Description Downloads Ubiquiti UniFi UISP Switch Gigabit PoE Switch DataSheet Download Ubiquiti UniFi UISP Switch Gigabit PoE Switch User Manual Download
