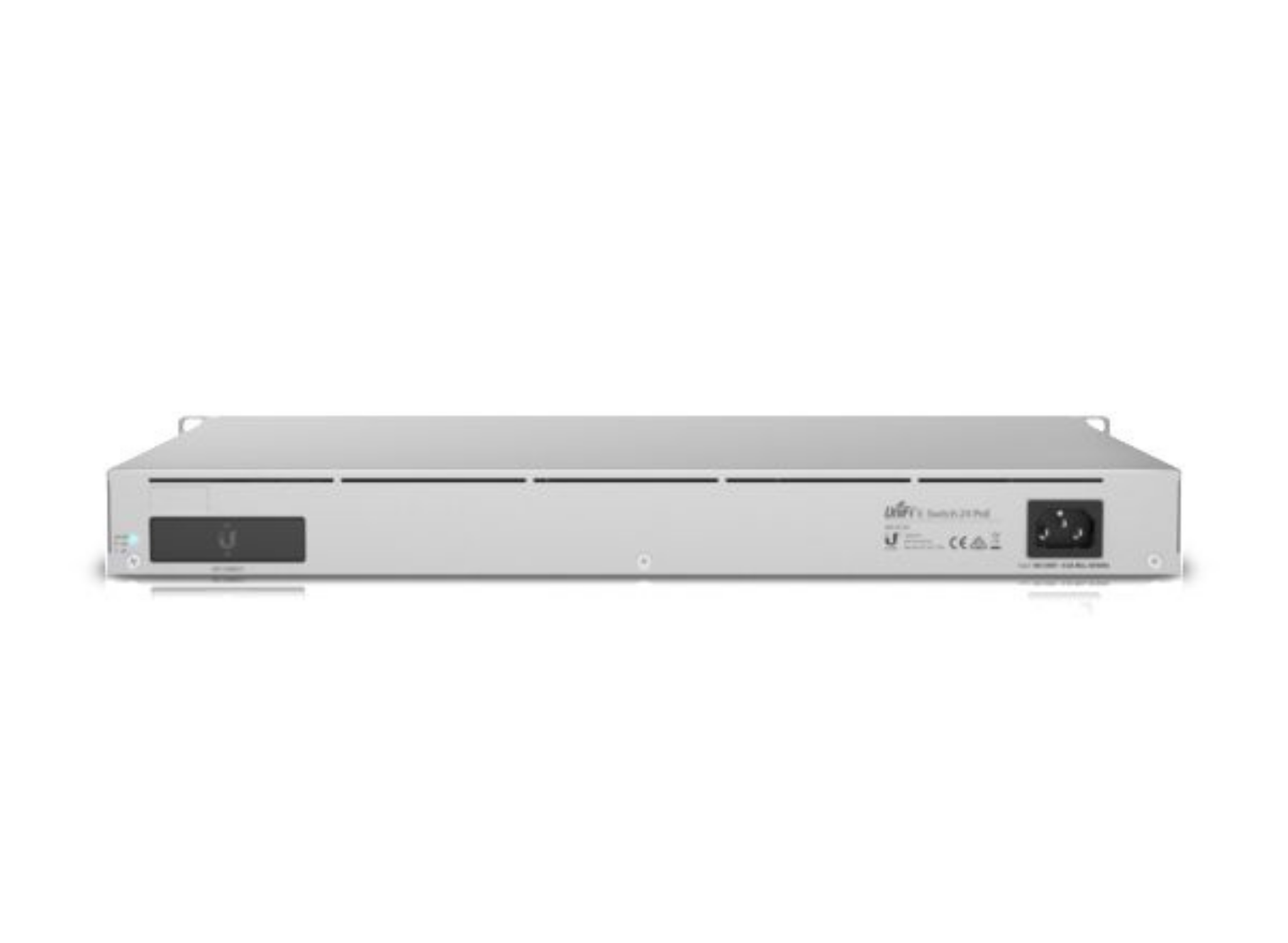

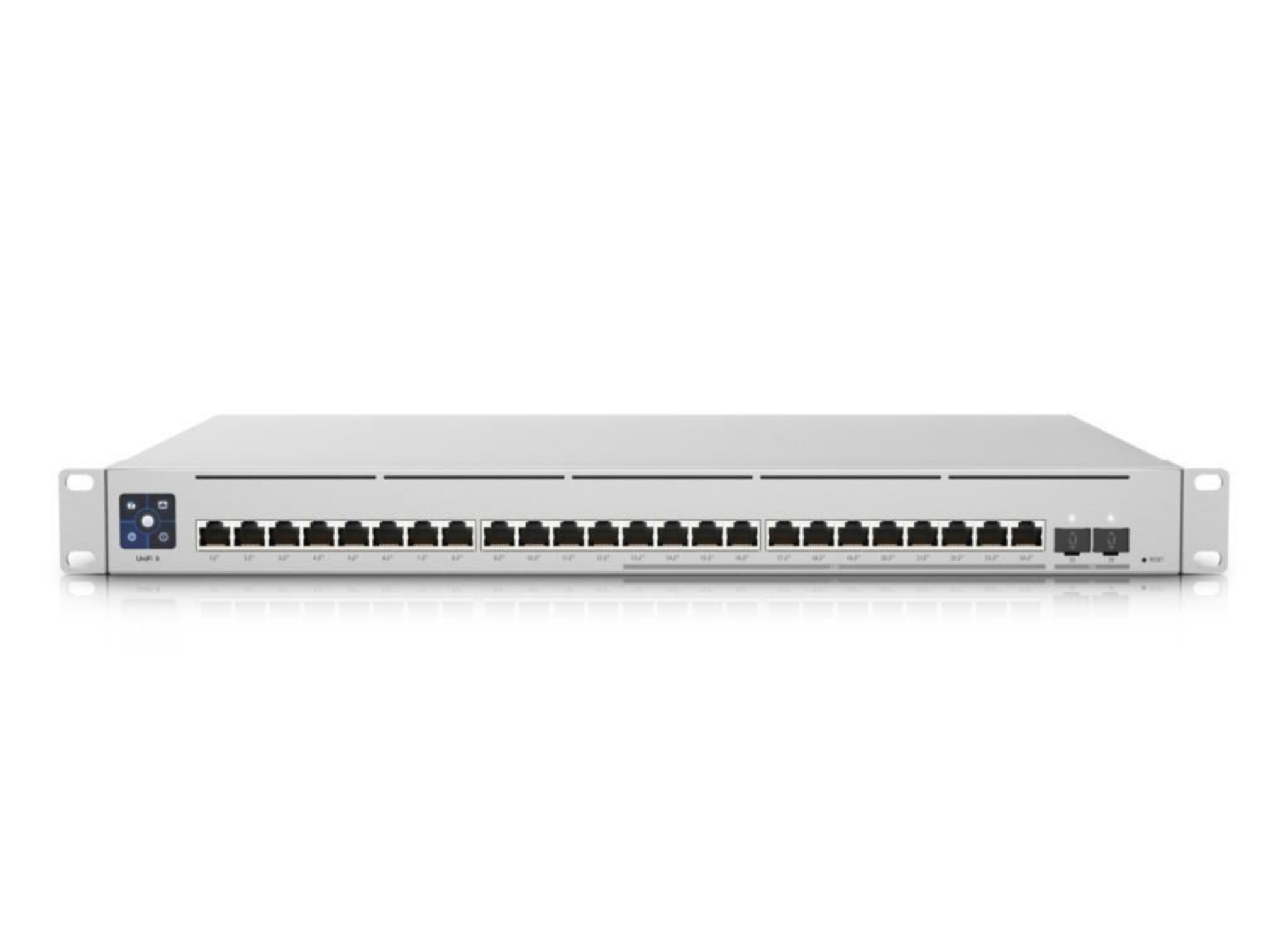

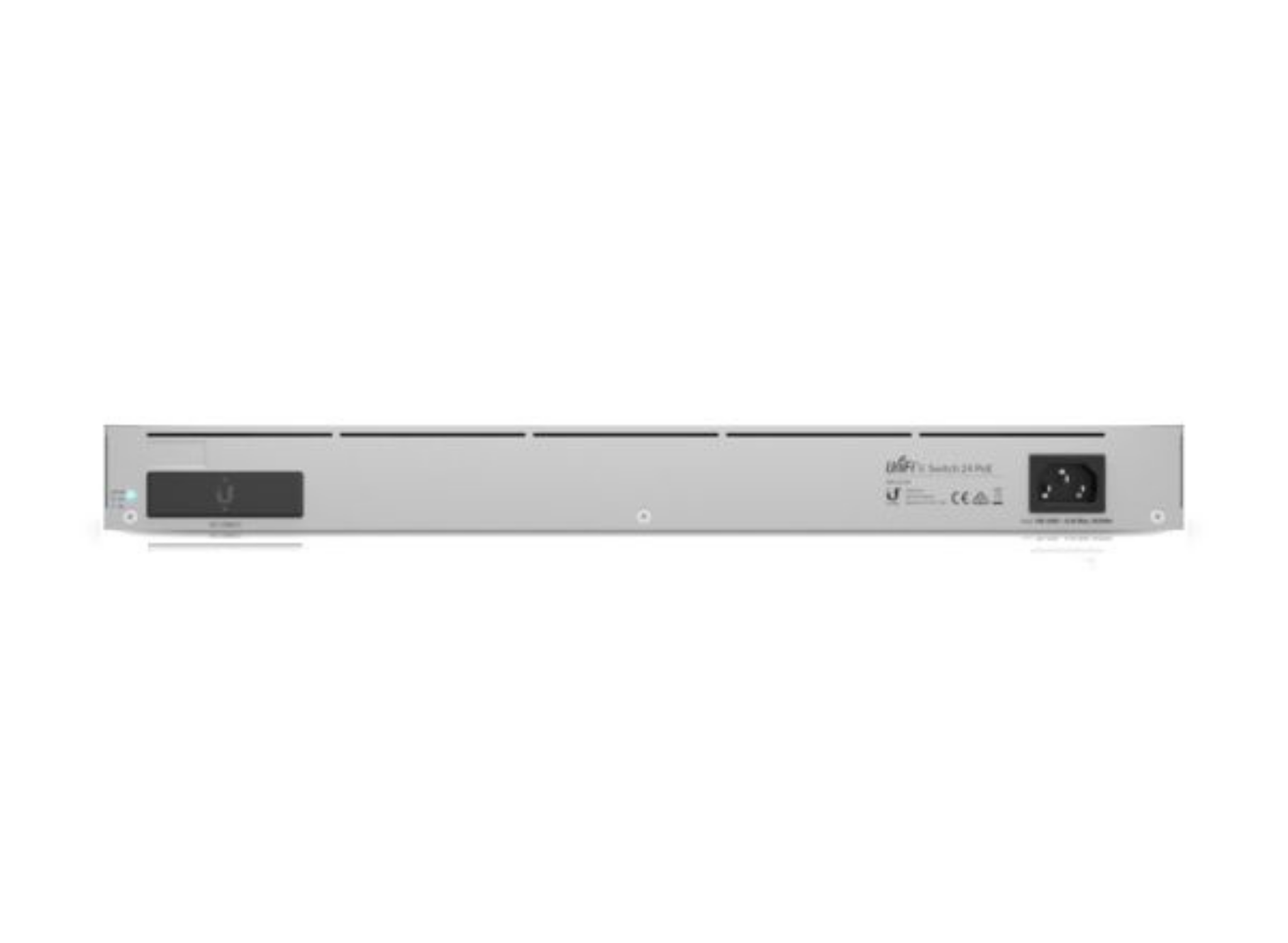

Ubiquiti UniFi Switch Enterprise 24-port PoE+ Network Switch | USW-ENTERPRISE-24-POE

• Description
• Specifications
• Downloads

• Ubiquiti UniFi Switch Enterprise 24-port PoE+ Network Switch | USW-ENTERPRISE-24-POE

  Configurable Gigabit Layer 3 switch with auto-sensing 802.3at PoE+. It offers (12) 2.5G RJ45 Ethernet ports, (12) 1G RJ45 Ethernet ports, and (2) 10G SFP+ ports, providing 2.5G PoE links to your WiFi 6 APs and 10G fiber uplinks to your network. Features include a 1.3″ touchscreen, single-row RJ45 port layout for easy patch panel cable management, and UniFi SmartPower Redundant Power System* (USP-RPS) support for intelligent protection from internal PSU interruption or failure.

• Category	Specification
  Data transmission
  Forwarding rate	92.25 Mpps
  Switching capacity	124 Gbit/s
  Throughput	62 Gbit/s
  Design
  Certification	CE, FCC, IC
  Housing material	Galvanized steel
  LED indicators	Activity/Link/System
  Product colour	Silver
  Rack mounting	Yes
  Legal Information
  UNSPSC Code	43222612
  Logistics data
  Harmonized System (HS) code	85176990
  Management features
  Switch layer	L3
  Switch type	Managed
  Network
  10G support	Yes
  Ethernet LAN data rates	10/100/1000/2500 Mbit/s
  Networking standards	IEEE 802.3af/IEEE 802.3at
  Operational conditions
  Operating relative humidity (H-H)	10 – 95 %
  Operating temperature (T-T)	-5 – 40 °C
  Storage temperature (T-T)	10 – 95 °C
  Package dimensions
  Gross Weight (Package, kg)	6.90875 kg
  Packaging data
  Rack mount kit	Yes
  Performance
  Harmonized System (HS) code	85176990
  Ports & interfaces
  Basic switching RJ-45 Ethernet ports quantity	24
  Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
  Console port	RJ-45
  Installed SFP+ modules quantity	2
  Power
  AC input frequency	50 – 60 Hz
  AC input voltage	100 – 240 V
  DC input voltage	11.5 – 52 V
  Input current	8.5 A
  Power consumption (max)	550 Watt
  Power consumption (typical)	34.2 Watt
  Power supply included	Yes
  Power over Ethernet (PoE)	Yes
  Power over Ethernet (PoE) power per port	34.2 Watt
  Power over Ethernet (PoE) type supported	Active PoE
  Power over Ethernet plus (PoE+) ports quantity	24
  Product dimensions
  Net Weight (Product, kg)	5.2 kg
  Product Depth	32.5 cm
  Product Height	4.37 cm
  Product Width	44.24 cm
  Vendor information
  Brand Name	Ubiquiti
  Warranty	2 Year(s)
