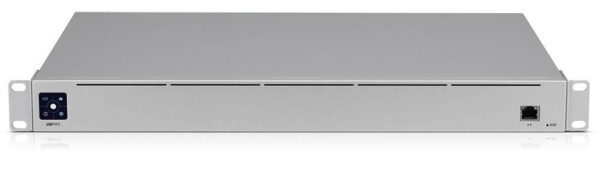

Ubiquiti UniFi SmartPower RPS Redundant Power Supply
The UniFi® SmartPower Redundant Power System, model USP-RPS, is a proprietary redundant power system designed to protect up to six UniFi SmartPower supported devices from sudden power supply module failure. The USP-RPS continually monitors all attached devices. In the event of an internal AC/DC power supply failure, failover is automatic so your network continues to operate with no interruption in service. With a 950W DC power budget, the USP-RPS can protect a variety of high-power devices, including UniFi PoE switches. An integrated 1.3″ color touchscreen LCM displays system information for convenient monitoring.
-
Category Specification Mechanical Dimensions 442.4 x 325.6 x 43.7 mm (17.4 x 12.8 x 1.7″) Weight Without mount brackets: 5.5 kg (12.1 lb) With mount brackets: 5.6 kg (12.3 lb) Enclosure material SGCC steel Hardware Networking interface (1) GbE RJ45 port Management interface Ethernet In-Band Power output (6) RPS DC ports Power method (1) Universal AC input, 100—240V AC Max. power consumption 995W Power supply Internal 350W AC/DC Internal 645W AC/DC Supported voltage range 100—240V AC Total output power 52V DC: 11.54A (600W) 11.5V DC: 30.44A (350W) Max. output power per RPS 52V DC: 11.54A (600W) port 11.5V DC: 30.44A (350W) Display 1.3″ touchscreen ESD/EMP protection Air: ± 16kV, contact: ± 12kV Ambient operating -5 to 45° C (23 to 113° F) temperature Ambient operating 10 to 90% noncondensing humidity Certifications CE, FCC, IC LEDs System Status Ethernet Link/activity USP RPS Activity
