Ubiquiti UniFi Security Gateway Lite – Advanced Router And Gateway | UXG-LITE
- Description
- Specifications
-
Ubiquiti UniFi Security Gateway Lite – Advanced Router And Gateway
Key Features
Up to 10x routing performance increase over UniFi USG
Managed with a Cloud Key, Official UniFi Hosting, or UniFi Network Server
1 x GbE WAN port
1 x GbE LAN port
Compact footprintThe Ubiquiti UniFi UXG-Lite is a compact yet powerful gateway, equipped with a comprehensive suite of advanced routing and security features. It significantly boosts routing performance, offering up to 10 times the capability of its predecessor, the UniFi USG, especially when tested with IPS/IDS, QoS, and Smart Queues. The device can be managed using a Cloud Key, Official UniFi Hosting, or a UniFi Network Server.

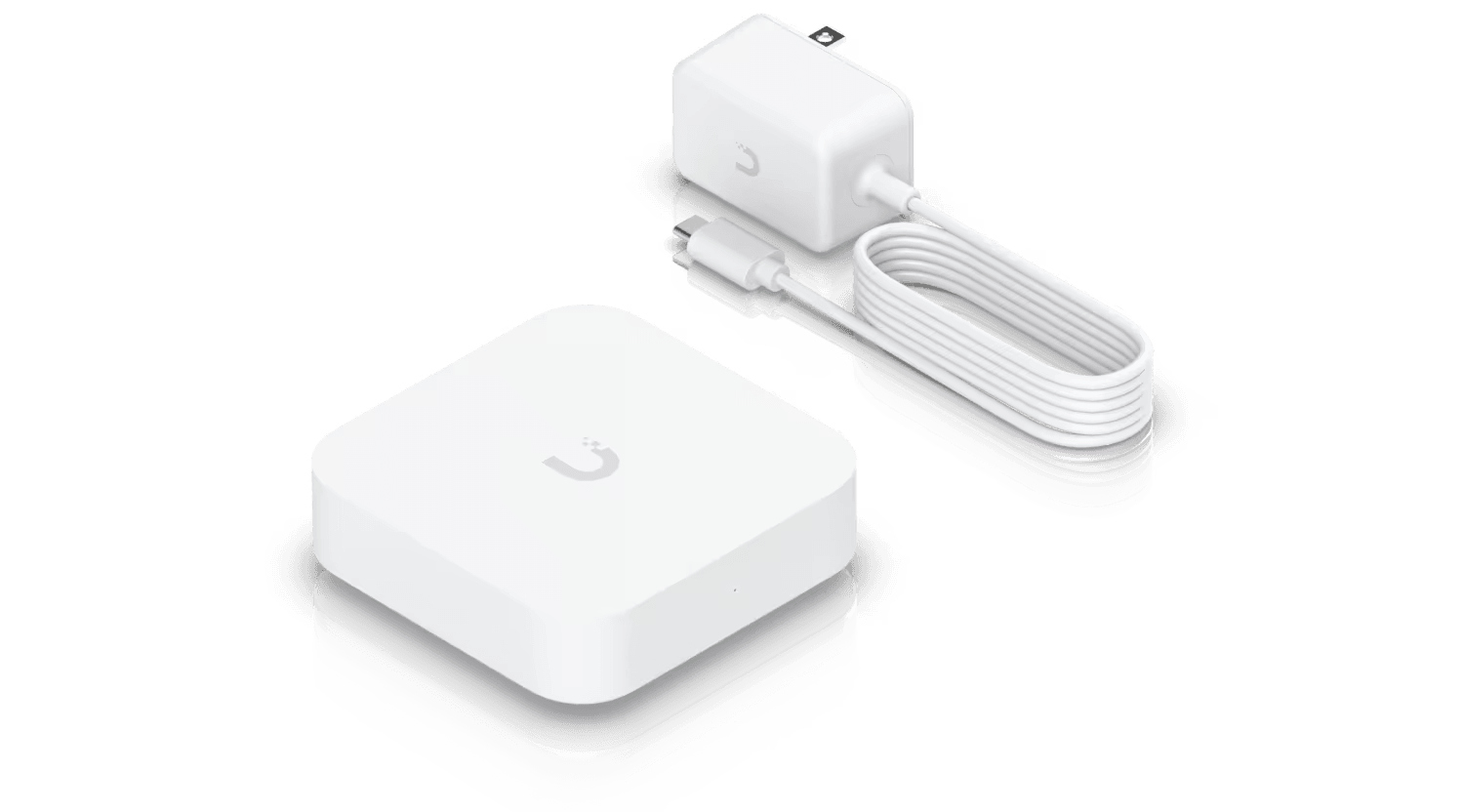

The UXG-Lite’s hardware consists of a dual-core ARM Cortex-A53 processor at 1 GHz and 1 GB DDR3L memory. For connectivity, it includes one Gigabit Ethernet (GbE) WAN port and one GbE LAN port. It also supports Bluetooth 5.1, and is USB-C powered (with an adapter included), supporting a voltage range of 100–240V.
UXG-Lite offers performance WiFi QoS with UniFi APs, application, domain, and country-based QoS, and application and device type identification. It also provides additional internet quality and outage reporting, and next-generation security with application-aware firewall rules and signature-based IPS/IDS threat detection.
The UXG-Lite also supports VLAN/subnet-based traffic segmentation, a full stateful firewall, and advanced networking options including license-free SD-WAN, WireGuard, L2TP and OpenVPN server, and more.
-
Technical Specifications Details Mechanical Dimensions 98 x 98 x 30 mm (3.9 x 3.9 x 1.2″) Weight 320 g (11.3 oz) Enclosure material Polycarbonate Hardware Processor Dual-core ARM® Cortex®-A53 at 1 GHz Memory information 1 GB DDR3L Management interface Ethernet Bluetooth 5.1 Networking interface LAN: (1) GbE RJ45 port WAN: (1) GbE RJ45 port Power method USB type C (5V/3A) Supported voltage range 100–240V Max. power consumption 3.83W Ambient operating temperature -10 to 40° C (14 to 104° F) Ambient operating humidity 5 to 95% noncondensing Certifications CE, FCC, IC Gateway Features Performance WiFi QoS with UniFi APs, Application, domain, and country-based QoS, Application and device type identification, Internet quality and outage reporting Next-generation security Application-aware firewall rules, Signature-based IPS/IDS threat detection, Content, country, domain, and ad filtering, VLAN/subnet-based traffic segmentation, Full stateful firewall Advanced networking License-free SD-WAN* WireGuard, L2TP and OpenVPN server, OpenVPN client, OpenVPN and IPsec site-to-site VPN, One-click Teleport* and Identity Enterprise VPN**, Policy-based WAN and VPN routing, DHCP relay, Customizable DHCP server, IPv6 ISP support
