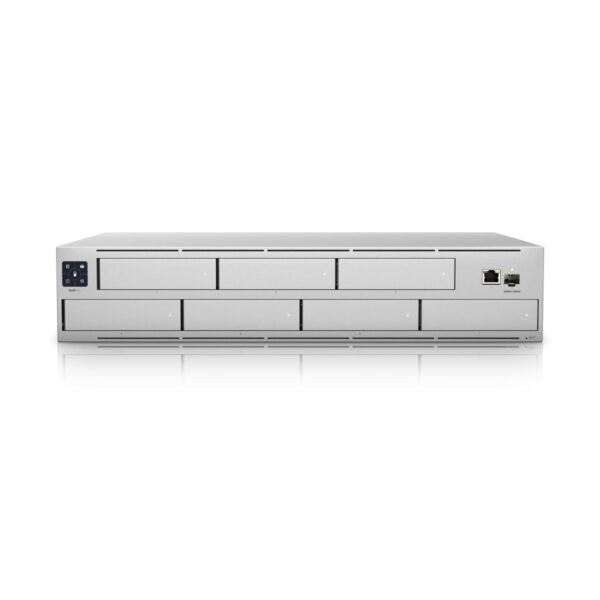

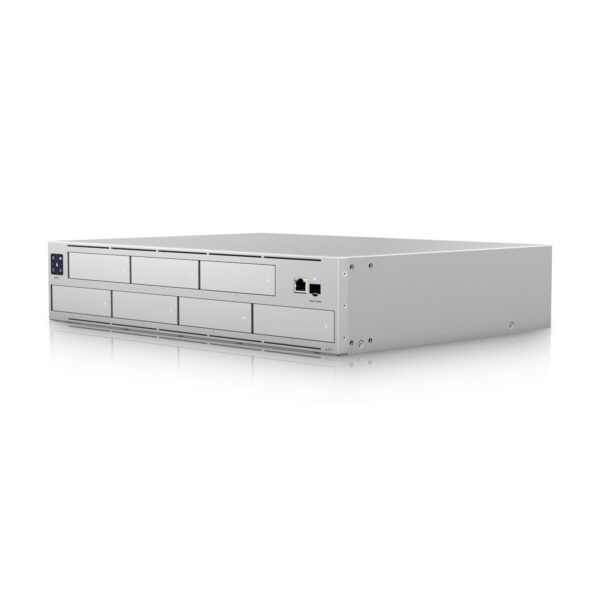

Ubiquiti UniFi Protect 7-Bay Network Video Recorder Pro
The Network Video Recorder Pro (UNVR Pro) is a business-grade network video recorder that provides data redundancy and long-term storage capabilities (up to 60 days of storage for 20 4K cameras or 60 1080p cameras)
The UNVR Pro is a UniFi OS Console that runs the pre-installed UniFi Protect application and has a 7-drive hard disk drive (HDD) bay that offers the greatest storage capacity of any UniFi OS Console. The powerful, easy-to-use UNVR Pro can be deployed in minutes and support systems with up to 60 cameras. Combining the best features of Cloud and onsite surveillance systems, UniFi Protect gives you centralized, local, low-latency access to all of your live camera feeds and recordings, as well as remote access from anywhere in the world via unifi.ui.com and the Protect mobile app.
The UNVR Pro also offers expanded RAID configuration options for enhanced data protection, applying either RAID 1, 5, or 10 based on the number of HDDs installed. It’s also equipped with a 1.3″ touchscreen display for concise, convenient video event previewing.Features
(7) 2.5″/3.5″ HDD bays
(1) 10G SFP+ port
(1) GbE RJ45 port

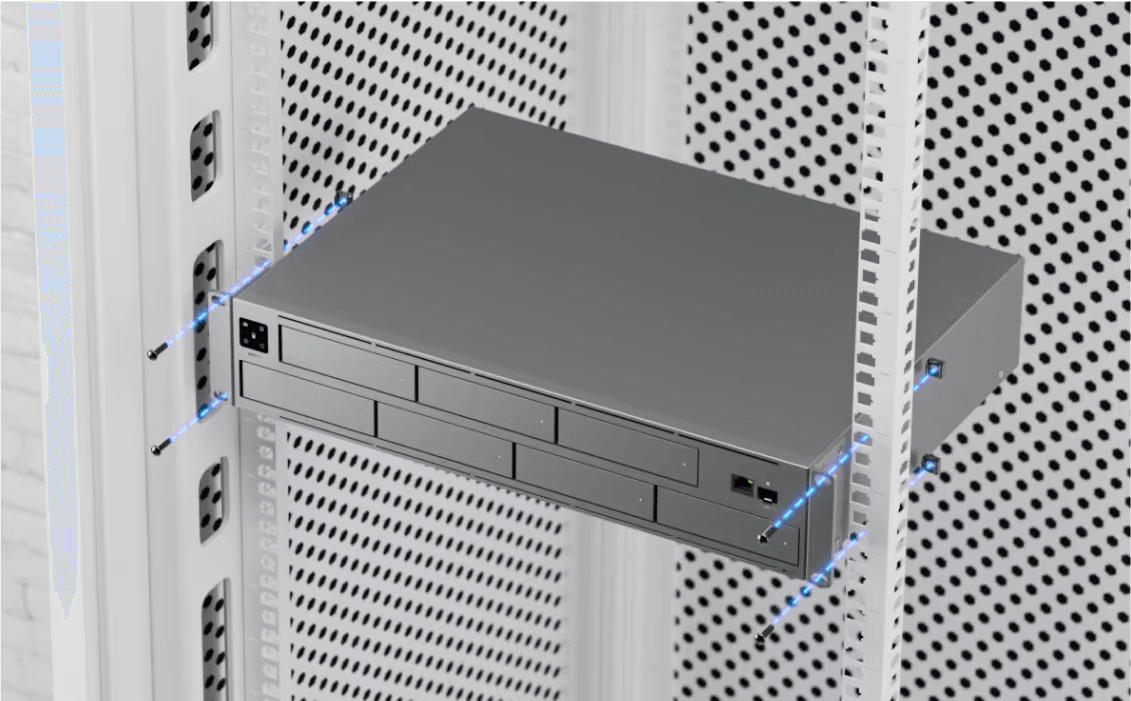

2U-sized, rack-mountable console (kit Included)
1.3″ touchscreen with video event previewing
Pre-installed UniFi Protect application
Simple, Bluetooth-powered setup via the UniFi Protect mobile app
Automated RAID 1, 5, or 10 HDD configuration
Can be connected to the USP RPS (sold separately) for enhanced power supply failover protection -
Technical Specifications Mechanical Dimensions 442 x 325 x 87 mm (17.4 x 12.8 x 3.4″) Weight Without mounting brackets: 9.2 kg (20.3 lb) With mounting brackets: 9.5 kg (20.8 lb) Enclosure material SGCC steel Mount material SGCC steel Hardware Management interface Ethernet In-Band Networking interface (1) GbE RJ45 port (1) 1/10 GbE SFP+ port RF interface Bluetooth 4.1 Power method (1) Universal AC input, 100—240V AC, 3A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 13.91A Power supply AC/DC, internal, 200W Supported voltage range 100—240V AC Max. power consumption 160W Max. power budget for Drives 135W ESD/EMP protection Air: ± 12kV, contact: ± 8kV LCM display (1) 1.3″ touchscreen Ambient operating temperature -5 to 40° C (23 to 104° F) Ambient operating humidity 5 to 95% noncondensing Certifications FCC, CE, IC LEDs System (1) Power: blue/white Flashing white: bootup in progress Flashing blue: firmware upgrading Steady white: factory defaults, awaiting adoption Steady blue: device is adopted Ethernet Green: 1 Gbps Amber: 10/100 Mbps SFP+ White: 10 Gbps Green: 1 Gbps HDD White: disk detected Amber: disk error RPS Blue: ready
