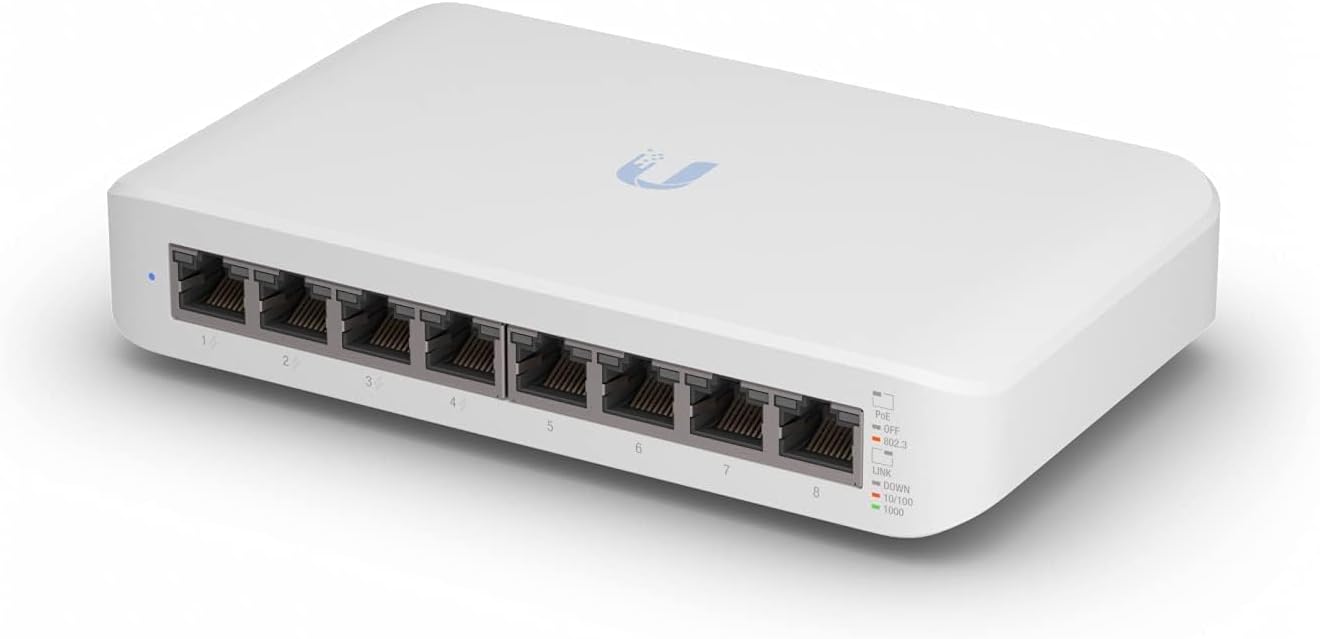

Ubiquiti UniFi Lite 8-Port PoE Switch
Layer 2, 8 x RJ45, 4 x 802.3at PoE+, Gigabit Ethernet, 99.6 x 163.7 x 31.7 mm
The USW-Lite-8-PoE is a fully managed Layer 2 switch with eight Gigabit Ethernet ports for your RJ45 Ethernet devices. Four ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 52W for UniFi Access Points or other PoE devices.Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-Lite-8-PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
-
Technical Specifications Mechanical Dimensions 99.6 x 163.7 x 31.7 mm (4 x 6.4 x 1.3″) Weight 295 g (10.4 oz) Enclosure material Polycarbonate Hardware Management interface Ethernet In-Band Networking interface (8) GbE RJ45 ports PoE interface (4) PoE/PoE+ (Pins 1, 2+; 3, 6-) Total non-blocking throughput 8 Gbps Switching capacity 16 Gbps Power method 54V DC, 1.1A power adapter Power supply 54V, external, 60W Supported voltage range 50—57V DC Max. power consumption 8W (Excluding PoE output) Total available PoE 52W* Max. PoE wattage per port by PSE PoE+: 30W Button Factory reset Ambient operating temperature -15 to 40° C (5 to 104° F) Ambient operating humidity 10 to 90% noncondensing Certifications CE, FCC, IC Switching Features Layer 2 features IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs Layer 3 features – LEDs System Status Ethernet PoE Speed/link/activity PoE Link/activity Application Requirements UniFi Network Version 7.2.94 and later
