Ubiquiti UniFi In-Wall Tri-Band WiFi 6E Access Point | U6-ENTERPRISE-IW
- Description
- Specifications
-

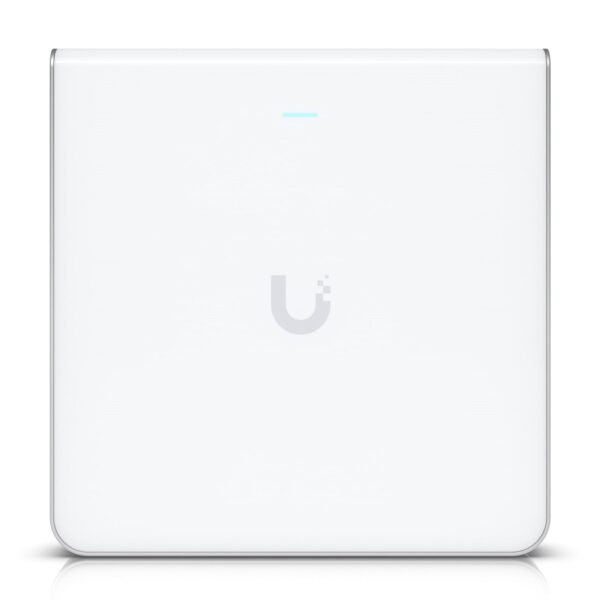

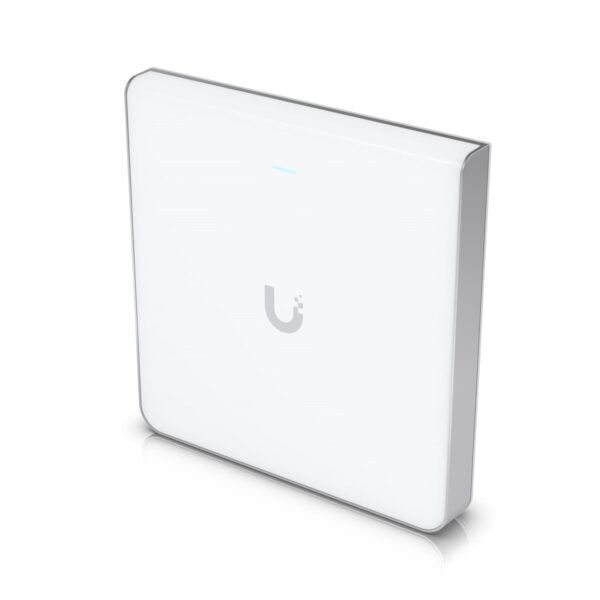

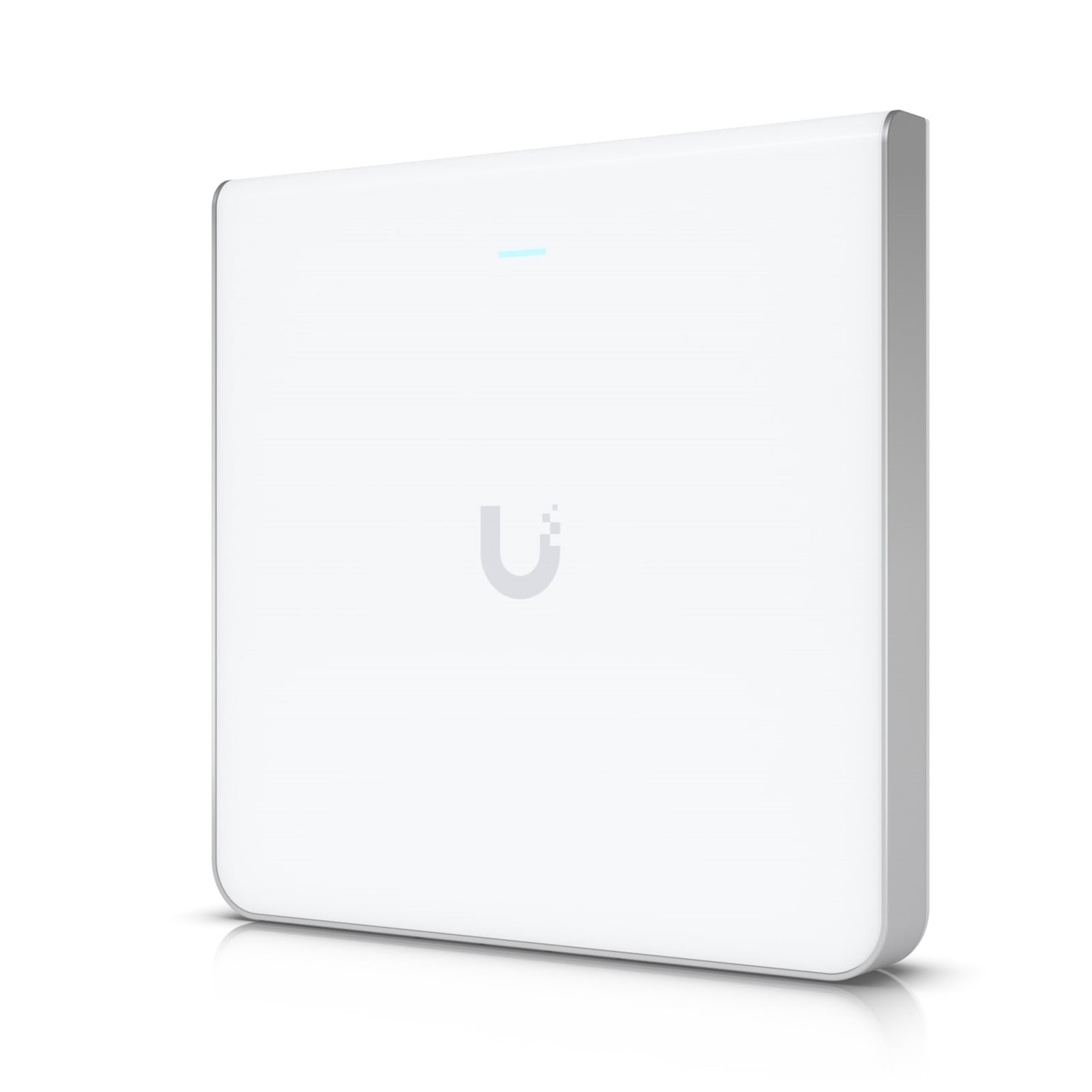

Ubiquiti UniFi In-Wall Tri-Band WiFi 6E Access Point
Ubiquiti UniFi U6 Enterprise In-Wall WiFi 6 Tri-Band Access Point
Ubiquiti UniFi U6-Enterprise offers cutting-edge, tri-band WiFi 6 coverage in your home or business. Offering up to 10.2 Gbps aggregate throughput and support for 2.4Ghz, 5Ghz and 6Ghz bands – this is a truly flexible, future-proof access point for high traffic environments.
Featuring a 2.5Gb Ethernet LAN connection, for the ultimate in high-speed connection and transfer rates. The U6-Enterprise-IW can also be powered by PoE+ giving users convenience and ease-of-use.
The UniFi U6-Enterprise-IW is housed in a sleek, minimalist white plastic enclosure for low profile installs in-wall.Key Features
WiFi 6 support (2.4/5/6 GHz bands)
10.2 Gbps aggregate throughput rate
1 x 2.5GbE RJ45 port (PoE In)
Powered with PoE+ -
Category Specification Mechanical Dimensions 159.7 x 156.7 x 33.8 mm (6.3 x 6.2 x 1.3″) Weight 884 g (1.9 lb) Enclosure material Polycarbonate, aluminum Mount material Aluminum Hardware Networking interface (1) Data in: 2.5 GbE RJ45 port (4) Data out: GbE RJ45 ports Management interface Ethernet, Bluetooth PoE interface (1) PoE+ input, (1) PoE output Power method PoE+, PoE++ (Required for PoE output) Power supply UniFi PoE switch Max. power consumption 21W (Excluding PoE output) Max. PoE wattage per port 15.4W Supported voltage range 44—57V DC Max. TX power 2.4 GHz 22 dBm 5 GHz 26 dBm 6 GHz 26 dBm MIMO 2.4 GHz 2 x 2 (UL MU-MIMO) 5 GHz 4 x 4 (DL/UL MU-MIMO) 6 GHz 4 x 4 (DL/UL MU-MIMO) Throughput rate 2.4 GHz 573.5 Mbps 5 GHz 4.8 Gbps 6 GHz 4.8 Gbps Antenna gain 2.4 GHz 4 dBi 5 GHz 5.8 dBi 6 GHz 5.8 dBi LED White/blue Button Factory reset Mounting Wall (Included) Ambient operating temperature -30 to 60° C (-22 to 140° F) Ambient operating humidity 5 to 95% noncondensing Certifications CE, FCC, IC Software WiFi standards 802.11a/b/g/n/ac/ax (WiFi 6/6E) Wireless security protocols WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) BSSID 8 per radio VLAN 802.1Q Advanced QoS Per-user rate limiting Guest traffic isolation Supported Concurrent clients 600+ Zero-wait DFS Yes* Supported Data Rates 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11ax (WiFi 6/6E) 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) Application Requirements UniFi Network Version 7.2.85 and later
