Ubiquiti UniFi In-Wall HD Access Point | UAP-IW-HD
- Description
- Specifications
-

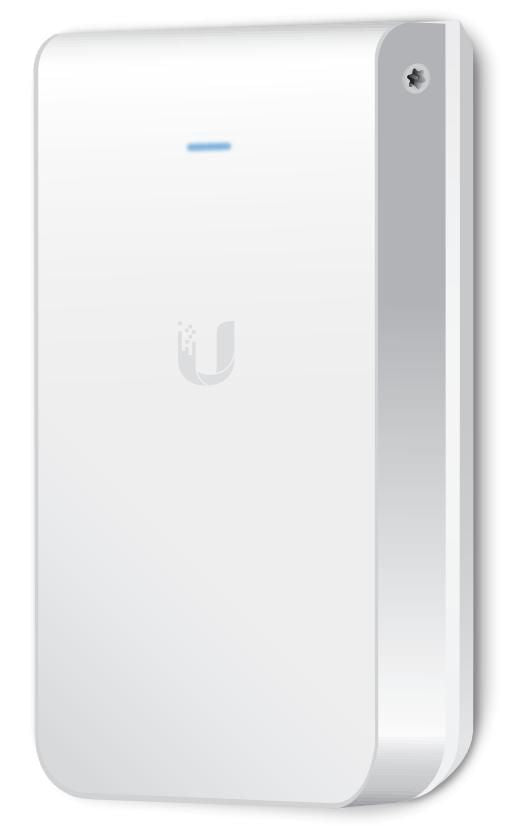

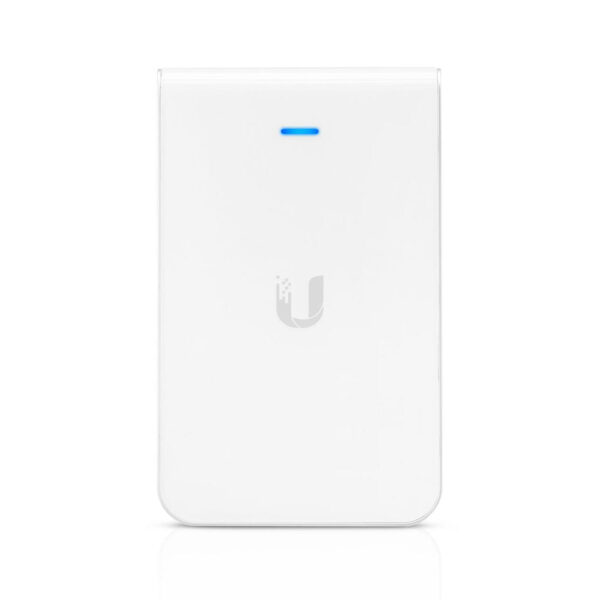

Ubiquiti UniFi In-Wall HD Access Point
Integrated Gigabit Switch
Four ports are available for bridging – one of which offers PoE passthrough when the AP is powered by an 802.3at PoE+ switch.Superior Processing Power
The UniFi IW HD AP is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser-equipped AP.Power over Ethernet (PoE) Standard
The UniFi IW HD AP can be conveniently powered by an 802.3af or 802.at compliant switch. We recommend powering your UniFi devices with a UniFi PoE Switch.Quick and Simple Installation
The UniFi IW HD AP has a refined industrial design and can be easily installed using the included mounting hardware.Customizable with Various Skins
Optional skins (sold separately) allow the UniFi IW HD AP to discreetly blend into its setting.UniFi Controller
Use the UniFi Controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs. -
Technical Specifications Details Mechanical Dimensions 139.7 x 86.7 x 25.8 mm (5.5 x 3.4 x 1″) Weight 210 g (7.4 oz) Hardware Networking interface (5) GbE RJ45 ports Management interface Ethernet PoE interface (1) PoE/PoE+ in (1) PoE out Power method PoE Power supply UniFi PoE switch PoE out 48V pass-through (Pins 1, 2+; 3, 6-) Supported voltage range 44—57V DC Max. power consumption 11W (Excluding PoE output) Max. PoE wattage per port by PSE 23W* Max. TX power 2.4 GHz: 23 dBm 5 GHz: 26 dBm MIMO 2.4 GHz: 2 x 2 5 GHz: 4 x 4 Throughput rate 2.4 GHz: 300 Mbps 5 GHz: 1733 Mbps Antenna gain 2.4 GHz: 1.8 dBi 5 GHz: 6 dBi Button Factory reset Mounting 1-Gang electrical wall box (Optional) Ambient operating conditions Operating temperature -10 to 60° C (14 to 140° F) Operating humidity 5 to 95% noncondensing Certifications CE, FCC, IC, cULus Software WiFi standards 802.11 a/b/g/n/r/k/v/ac/ac-wave2 Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF BSSID Up to 8 per radio VLAN 802.1Q Advanced QoS Per-user rate limiting Guest traffic isolation Supported Power save Supported Beam-forming Supported WMM Voice, video, best effort, and background Concurrent clients 200+ Supported Data Rates (Mbps) 802.11a 6, 9, 12, 18, 24, 36, 48, 54 802.11b 1, 2, 5.5, 11 802.11g 6, 9, 12, 18, 24, 36, 48, 54 802.11n 6.5 Mbps to 300 Mbps (MCS0 -MCS15, HT 20/40) 802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80) 58 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 160)
