• Ubiquiti UniFi Express Gateway & Controller 1000 Mbit/s

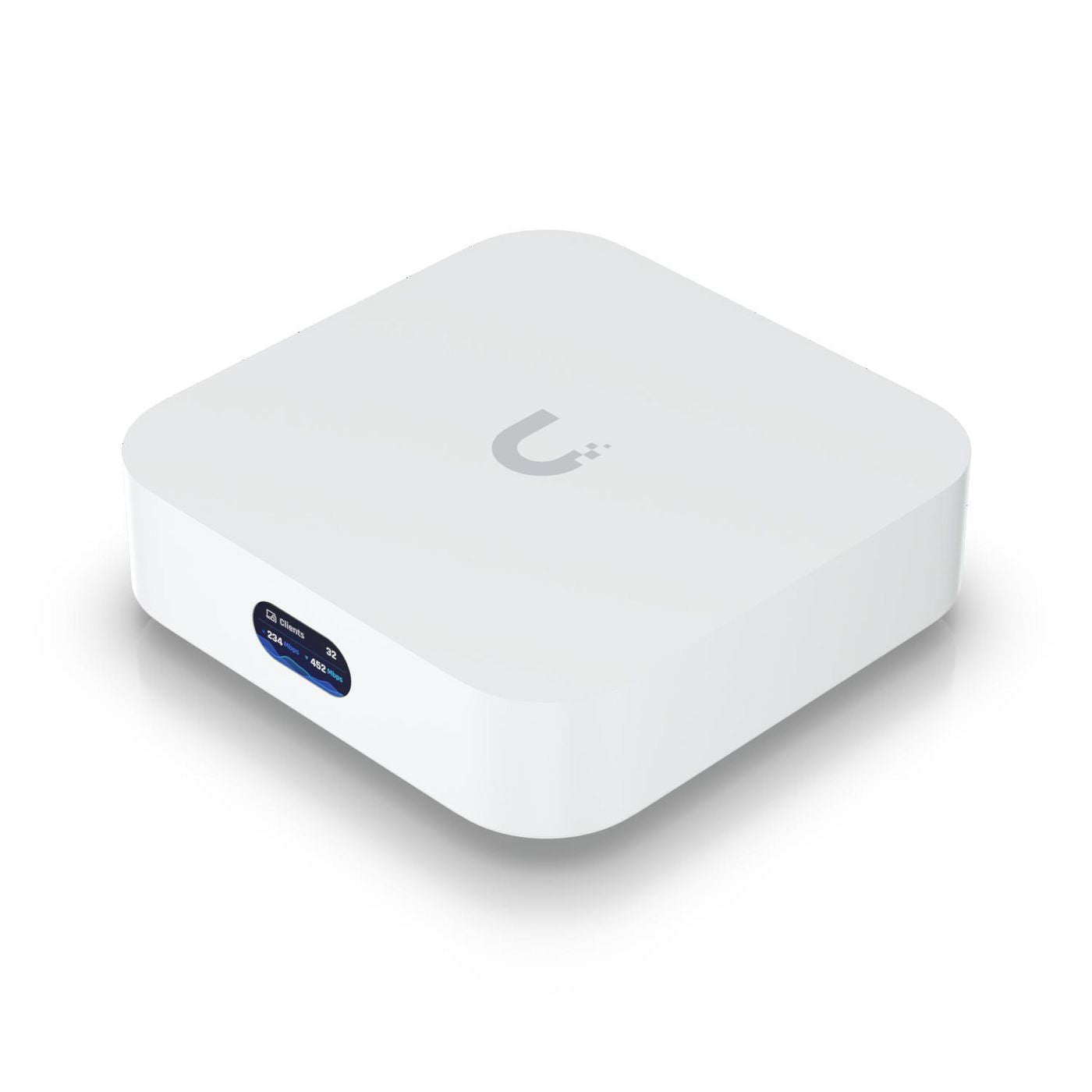

  Ubiquiti UniFi Express (UX)
  The Ubiquiti UniFi Express (UX) is a compact networking solution that combines the power of a UniFi Cloud Gateway and a WiFi 6 access point in one unit. Operating as a versatile mesh access point, it delivers high-performance wireless connectivity with built-in WiFi 6 technology (2×2 MIMO). Despite its small size, it covers 140 m² (1,500 ft²) and supports over 60 connected WiFi devices, making it ideal for home and small office environments.

  Ubiquiti UniFi Express (UX) Key Features
  Built-in WiF6 (2×2 MIMO)
  140 m² (1,500 ft²) single-unit coverage
  60+ connected WiFi devices

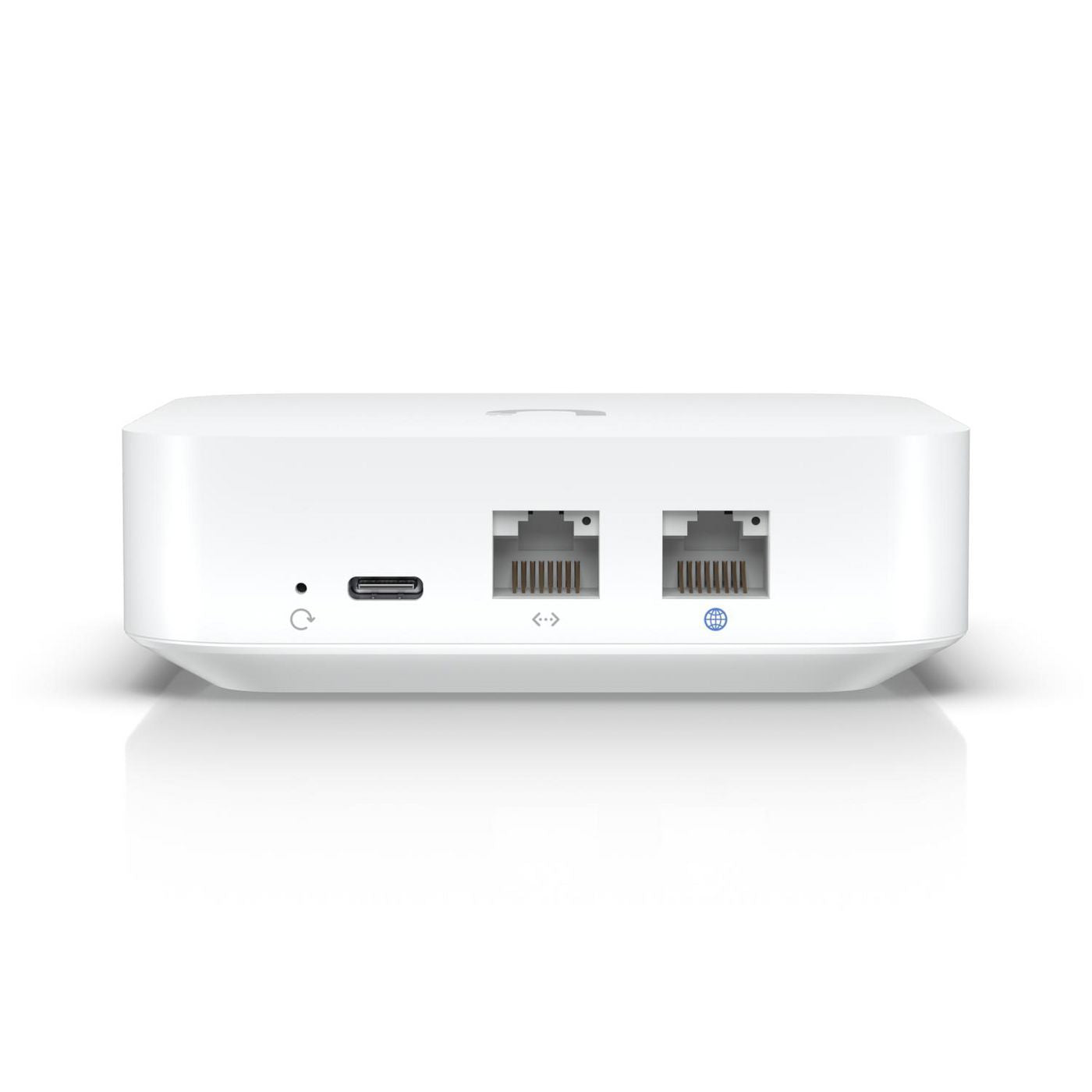

  (1) GbE RJ45 WAN port
  (1) GbE RJ45 LAN port to extend network

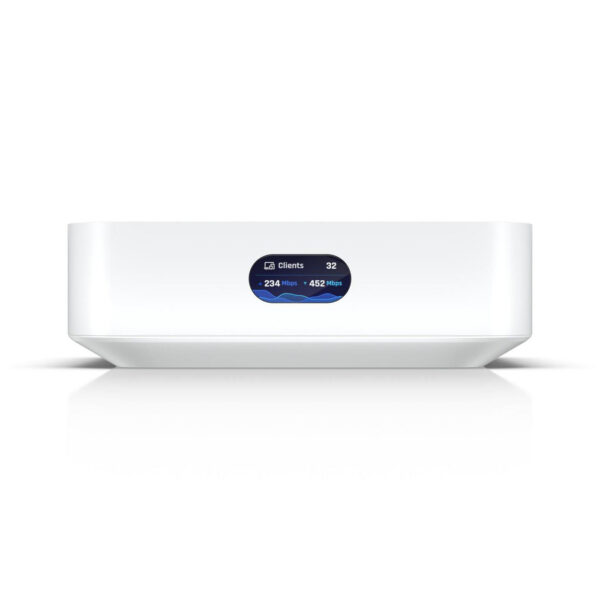

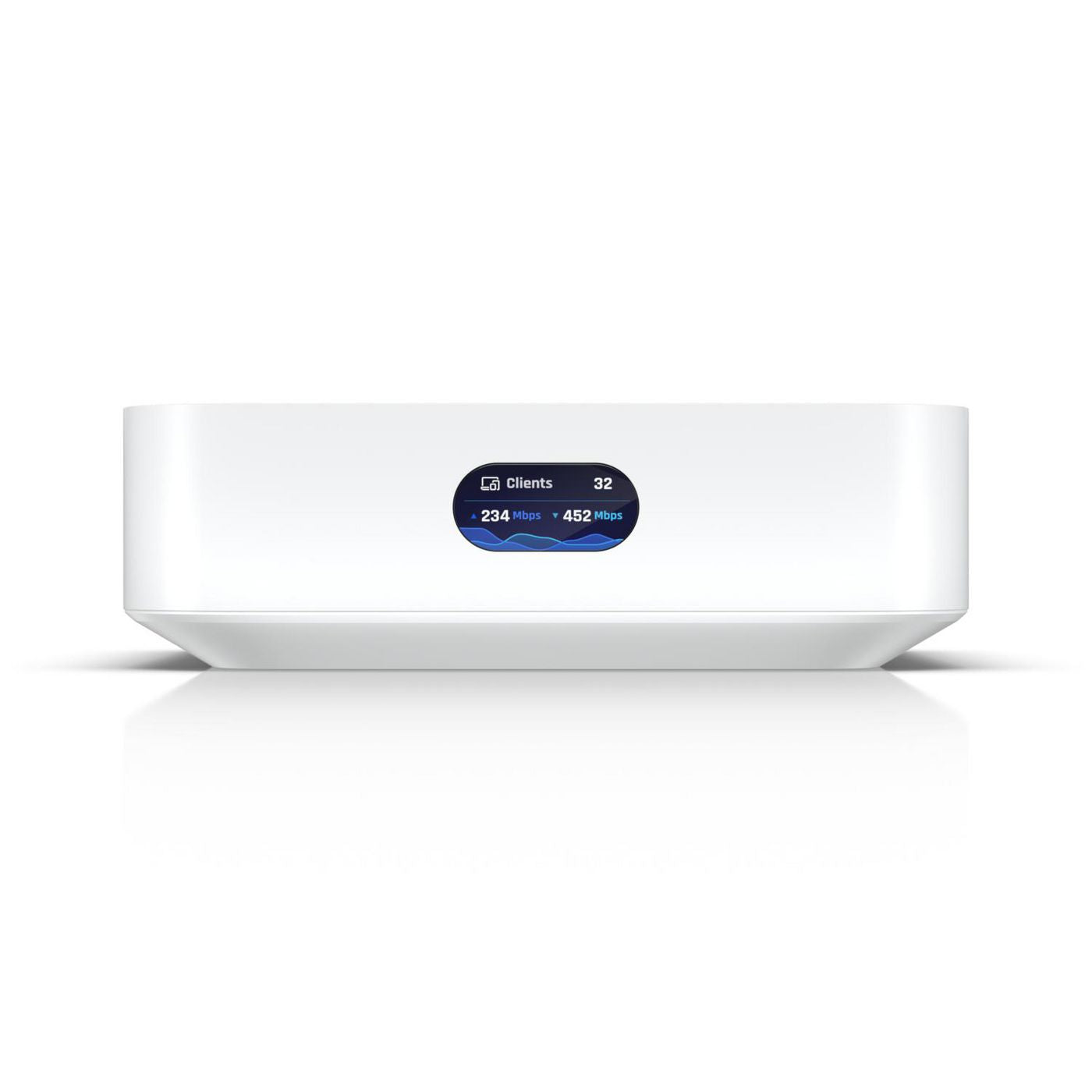

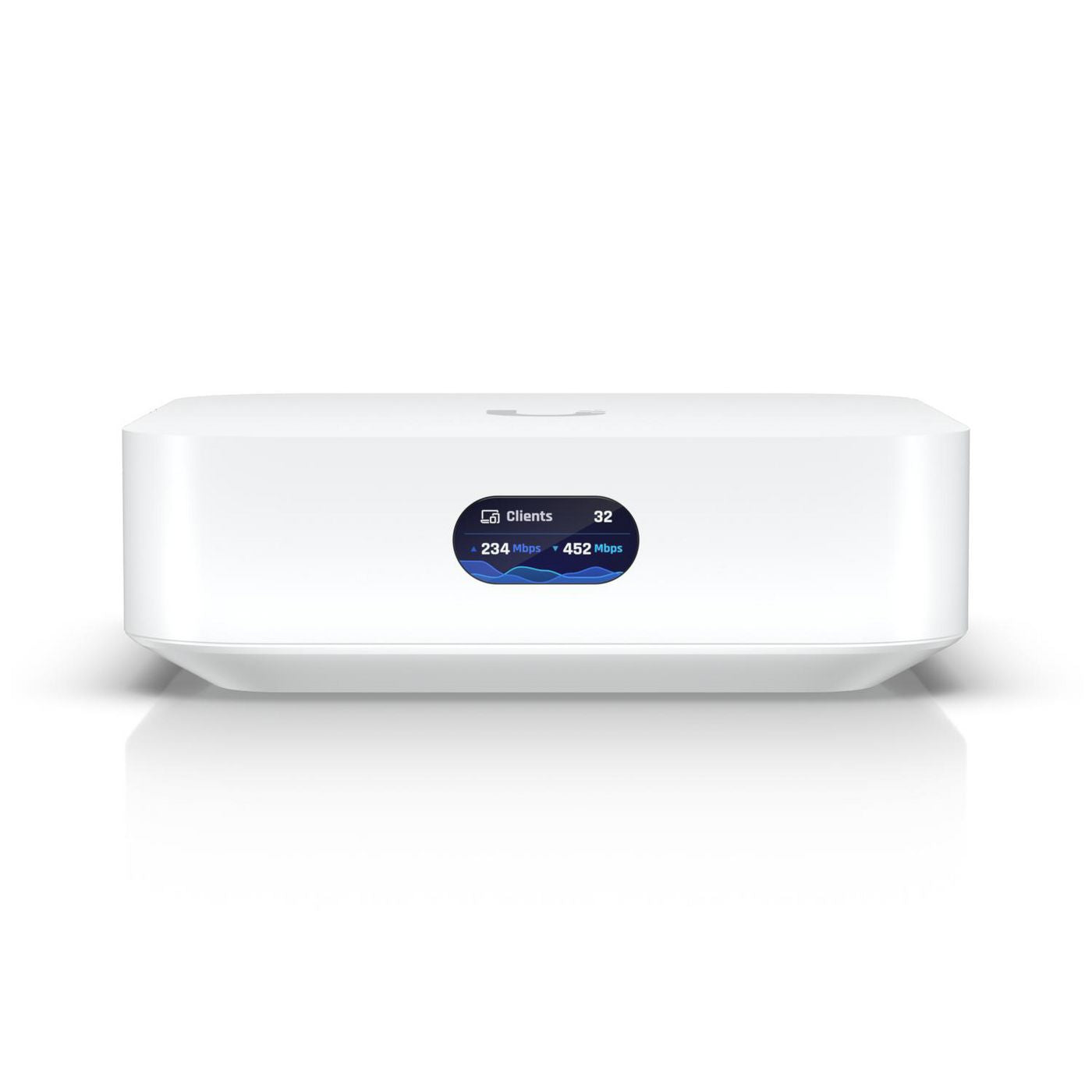

  0.96″ LCM status display

  Equipped with essential networking interfaces, the UniFi Express provides seamless integration into various setups. The inclusion of a GbE RJ45 WAN port ensures reliable connectivity to the wider internet, while the GbE RJ45 LAN port allows for easy network extension, enhancing its versatility in diverse networking scenarios. The device’s 0.96″ LCM status display adds a user-friendly dimension, providing at-a-glance information about the network’s status and performance.

• Category	Specification
  Mechanical
  Dimensions	98 x 98 x 30 mm (3.6 x 3.6 x 1.2″)
  Weight	302 g (10.7 oz)
  Enclosure material	Polycarbonate
  Hardware
  Management interface	Ethernet, Bluetooth
  Networking interface	LAN: (1) GbE RJ45 port
  	WAN: (1) GbE RJ45 port
  Power method	USB type C (5V DC/3A)
  Max. power consumption	10W
  Wireless
  Max. TX power	2.4 GHz: 22 dBm
  	5 GHz: 25 dBm
  MIMO	2 x 2 (DL/UL MU-MIMO) for both 2.4 GHz and 5 GHz bands
  Throughput rate	2.4 GHz: 573.5 Mbps
  	5 GHz: 2.4 Gbps
  Antenna gain	2.4 GHz: 4 dBi
  	5 GHz: 5.15 dBi
  Gateway Features
  Performance	Internet quality and outage reporting
  	Next-generation security
  	Application-aware firewall rules
  	Content, country, domain, and ad filtering
  	VLAN/subnet-based traffic segmentation
  	Full stateful firewall
  Software
  WiFi standards	802.11a/b/g/n/ac/ax
  Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
  BSSID	Console mode: 3 per band, Standard AP: 8 per band
  VLAN	802.1Q
  Advanced QoS	Per-user rate limiting
  Guest traffic isolation	Supported
  Concurrent clients	50+*
  Supported Data Rates	See supported data rates for 802.11a/b/g/n/ac/ax
  Application Requirements	UniFi Network Version 8.0.7 and later
