Ubiquiti UniFi AP AC PRO Wireless AC1750 Dual Band PoE Access Point 5 Pack – UAP-AC-PRO-5
- Description
- Specifications
-

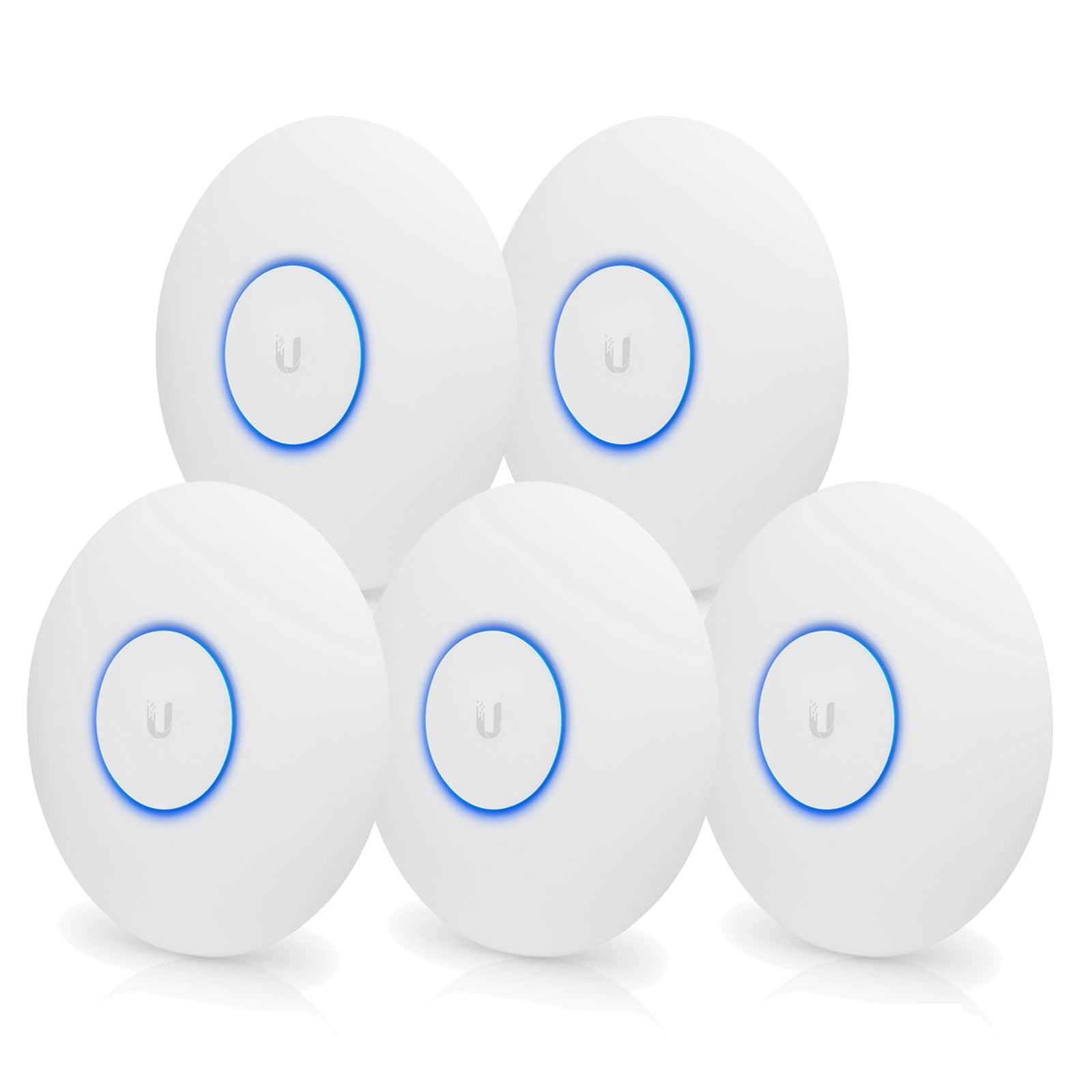

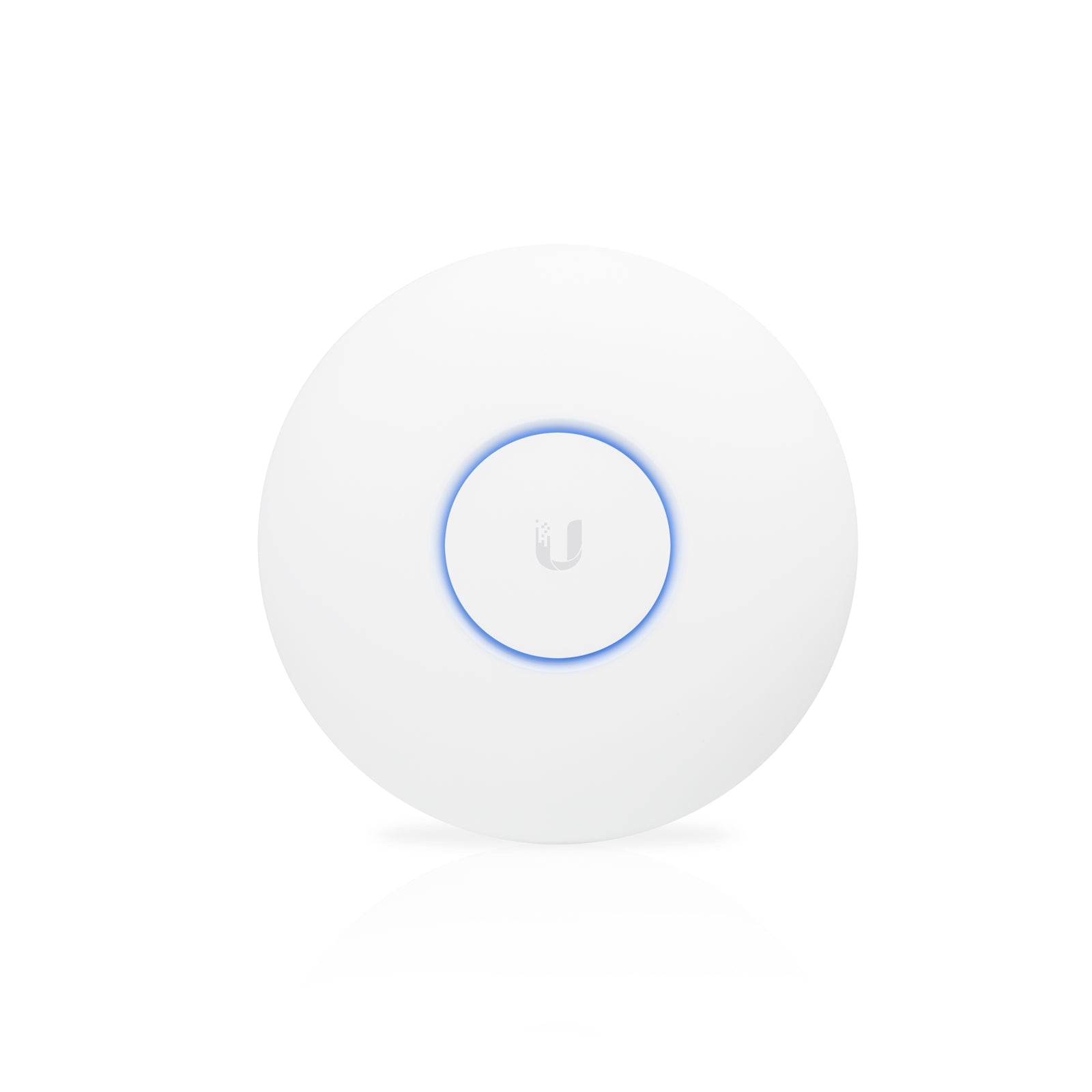

Ubiquiti UniFi AP AC PRO Wireless AC1750 Dual Band PoE Access Point 5 Pack
Please note, the Ubiquiti multipack models such as this one do not include the POE Injector. If you need this item please be aware you need to order it separately alongside the multipacks. codes are NPUBI-POE4824WG and NPUBI-POE4824W
802.11ac PRO Access Point (5 PACK)
The UniFi AC Pro AP features the latest Wi-Fi 802.11ac, 3×3 MIMO technology in a refined industrial design and is ideal for deployment of maximum-performance wireless networks.
Up to 5X Faster with Dual-Radio 3×3 11AC MIMO Technology
The UniFi AC Pro AP supports simultaneous dual-band, 3×3 MIMO technology in the 5 and 2.4 GHz radio bands.Designed for Optimal RF Performance
The newly redesigned UniFi Controller optimizes RF performance:Versatile Design
The UniFi AC Pro AP is a gigabit, 802.3af-powered access point suitable for indoor or outdoor use.Scalable Enterprise Wi-Fi Management
The UniFi Controller v5 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field. -
Technical Specifications Details Mechanical Dimensions Ø196.7 x 35 mm (Ø7.7 x 1.4″) Weight Without mount: 350 g (12.4 oz)<br>With mount: 450 g (15.9 oz) Hardware Networking interface (2) GbE RJ45 ports Management interface Ethernet Power method PoE, Passive PoE, 48V Power supply UniFi PoE switch<br>48V, 0.5A PoE adapter (Included)*<br>*5-packs do not come with PoE adapters. Supported voltage range 44—57V DC Max. power consumption 9W Max. TX power 2.4 GHz 22 dBm 5 GHz 22 dBm 6 GHz – MIMO 2.4 GHz 3 x 3 5 GHz 3 x 3 6 GHz – Throughput rate 2.4 GHz 450 Mbps 5 GHz 1300 Mbps 6 GHz – Antenna gain 2.4 GHz 3 dBi 5 GHz 3 dBi 6 GHz – Button Factory reset Mounting Wall, ceiling (Included) Ambient operating temperature -10 to 70° C (14 to 158° F) Ambient operating humidity 5 to 95% noncondensing Certifications CE, FCC, IC Software WiFi standards 802.11 a/b/g/n/ac Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) BSSID 4 per radio VLAN 802.1Q Advanced QoS Per-user rate limiting Guest traffic isolation Supported Power save Supported WMM Voice, video, best effort, and background Concurrent clients 250+ Supported Data Rates (Mbps) 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40) 802.11ac 6.5 Mbps to 1300 Mbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80)
