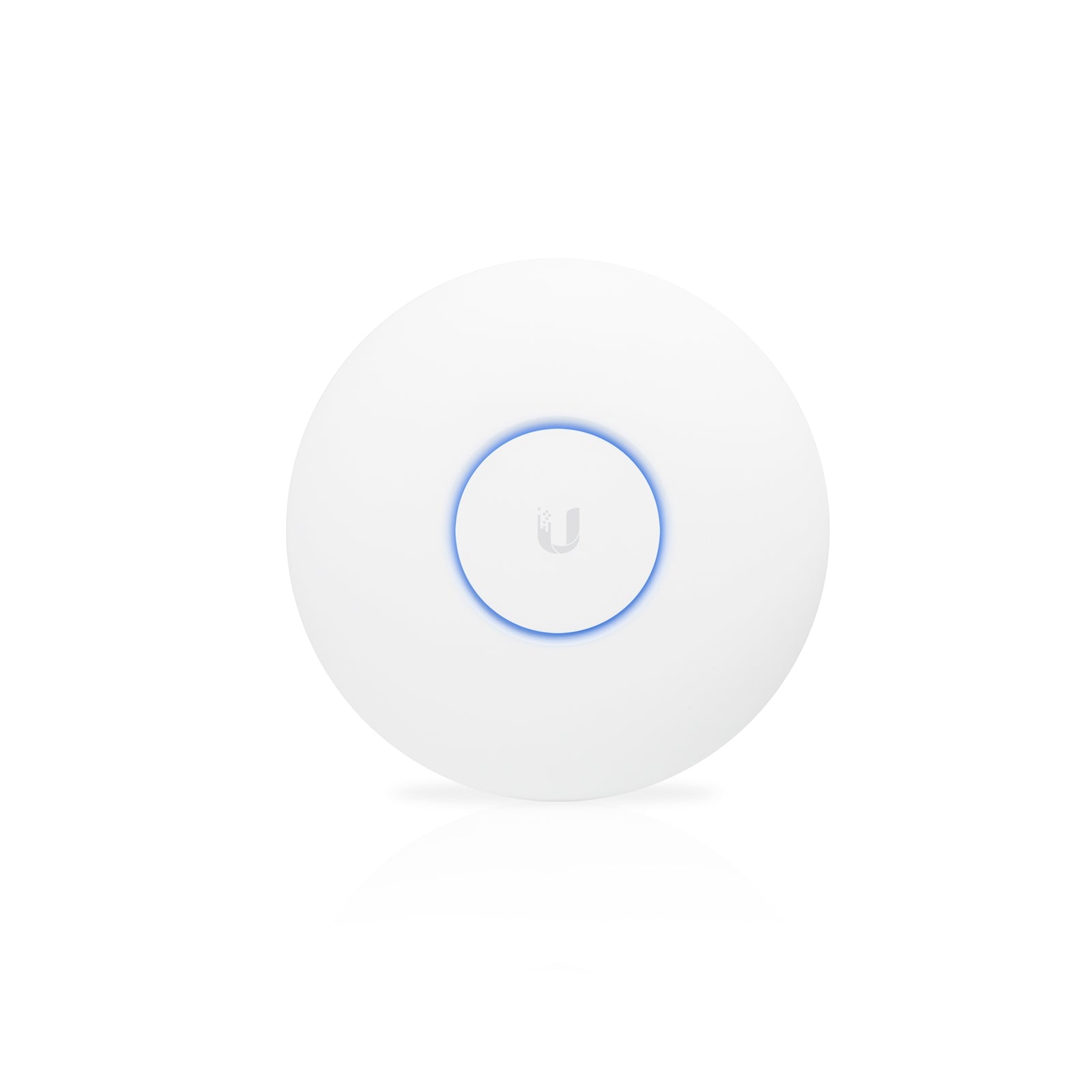

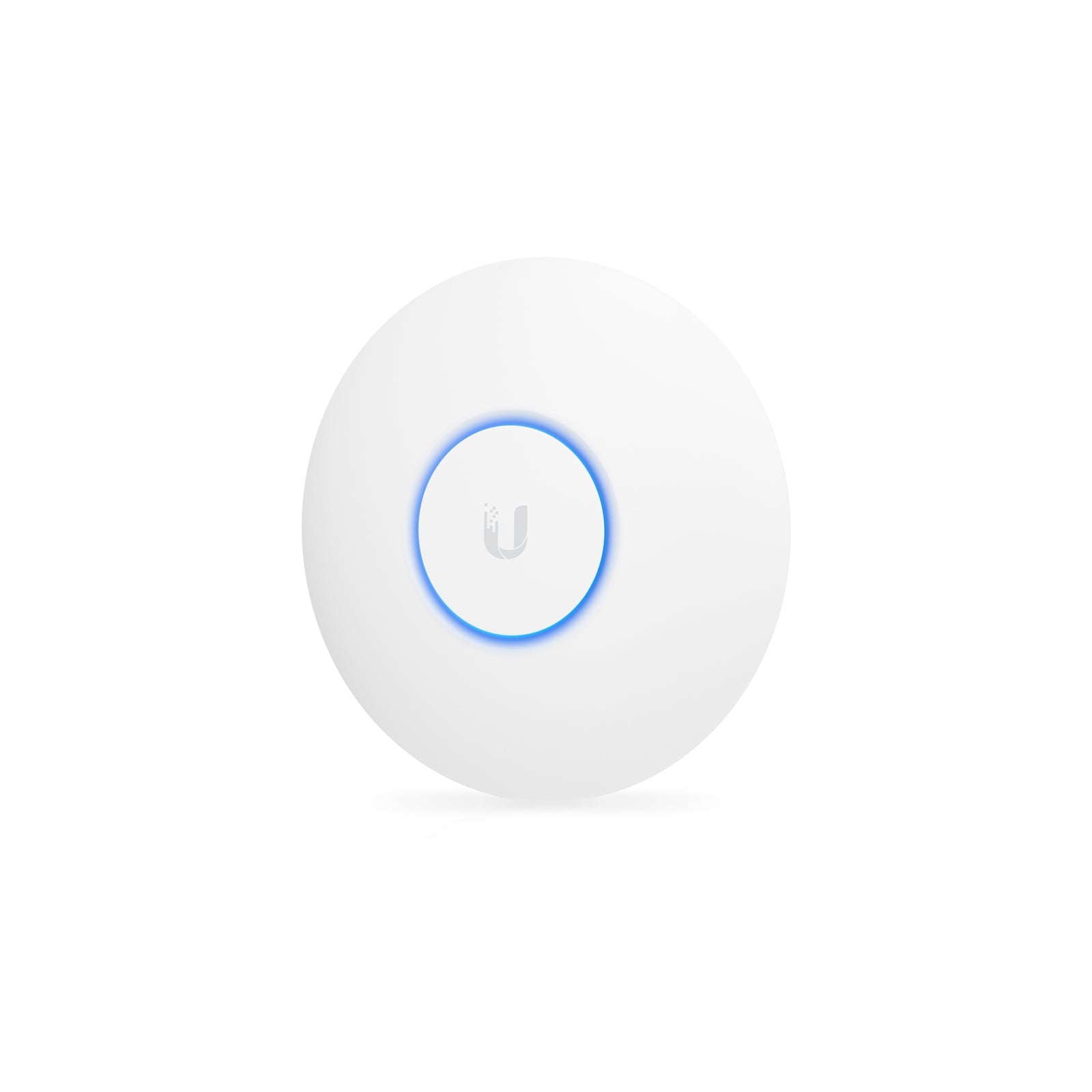

• Ubiquiti UniFi AP AC Lite Wireless AC1200 Dual Band PoE Access Point


  The UniFi AC Lite AP features the latest Wi-Fi 802.11ac technology in a refined industrial design and is ideal for cost-effective deployment of high-performance wireless networks.

  Dual-Radio Performance, Gigabit Speeds
  The UniFi AC Lite AP delivers 5x the performance of the first-generation UniFi AP while still maintaining Ubiquiti’s disruptive pricing strategy.

  Sleek, Ultra-Compact Design
  The UniFi AC Lite AP features a cleaner design in a reduced footprint half the size compared to the standard UniFi AP.

  Designed for Optimal RF Performance
  The newly redesigned UniFi Controller optimizes RF performance

  Scalable Enterprise Wi-Fi Management
  The UniFi Controller v5 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.

• Category	Specification
  Mechanical
  Dimensions	Ø160 x 31.45 mm (Ø6.3 x 1.2″)
  Weight	Without mount: 170 g (6 oz)
  	With mount: 185 g (6.5 oz)
  Hardware
  Networking interface	(1) GbE RJ45 port
  Management interface	Ethernet
  Power method	PoE
  	Passive PoE, 24V (Pairs 4, 5+; 7, 8 return)
  Power supply	UniFi PoE switch, 24V, 0.5A Gigabit PoE adapter*
  	*5-packs do not come with PoE adapters.
  Max. power consumption	6.5W
  Max. TX power
  	2.4 GHz: 20 dBm
  	5 GHz: 20 dBm
  	6 GHz: –
  MIMO
  	2.4 GHz: 2 x 2
  	5 GHz: 2 x 2
  	6 GHz: –
  Throughput rate
  	2.4 GHz: 300 Mbps
  	5 GHz: 867 Mbps
  	6 GHz: –
  Antenna gain
  	2.4 GHz: 3 dBi
  	5 GHz: 3 dBi
  	6 GHz: –
  Button	Factory reset

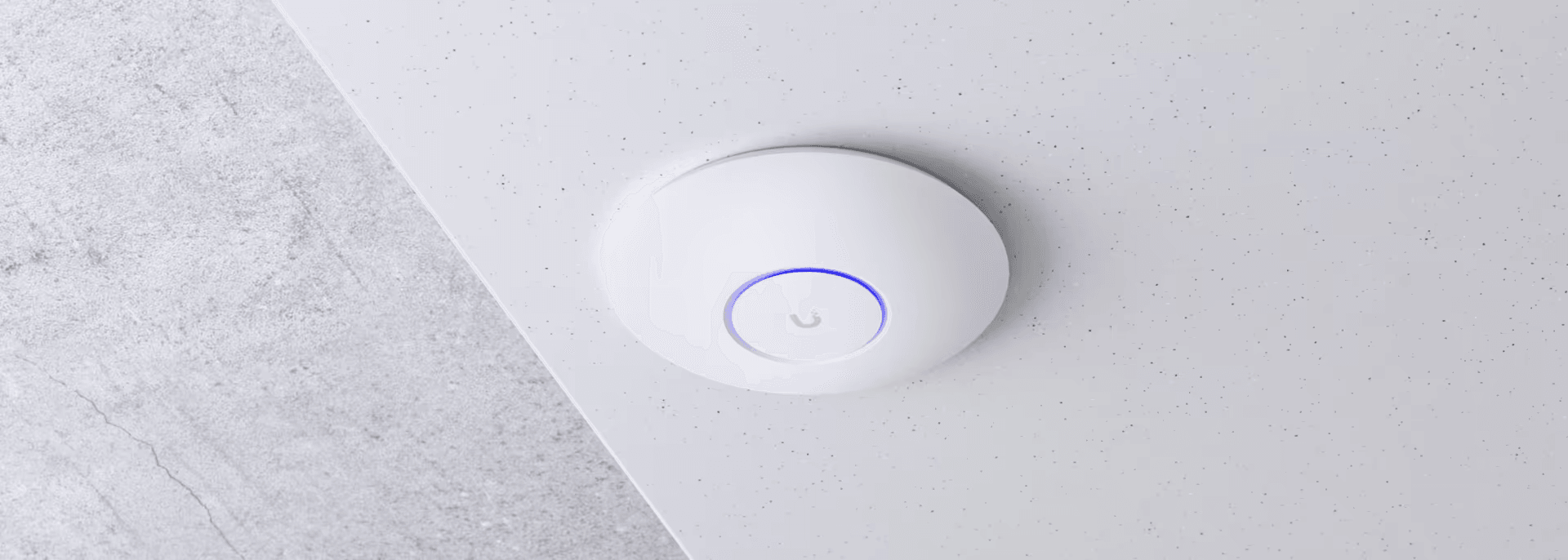

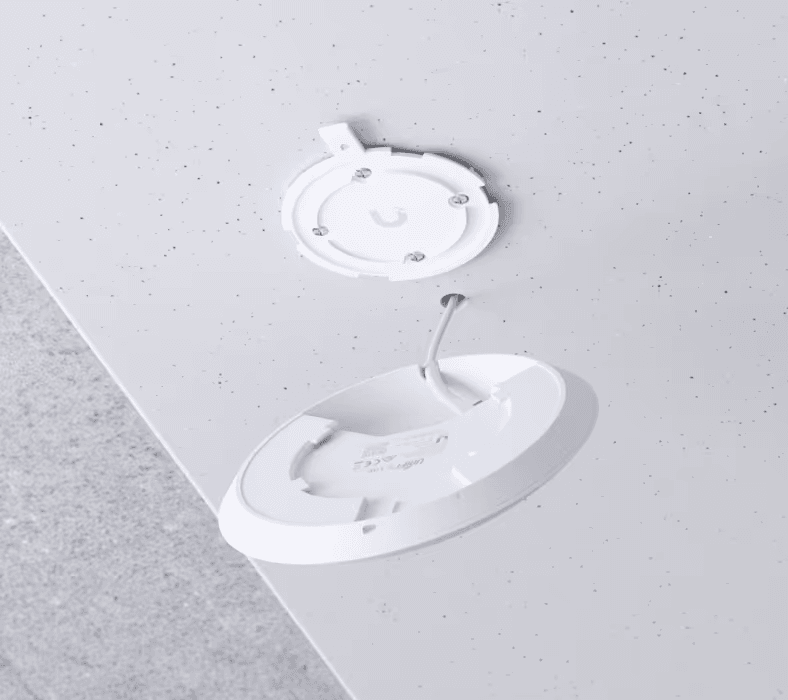

  Mounting	Wall, ceiling (Included)
  Ambient operating temp.	-10 to 70° C (14 to 158° F)
  Ambient operating humidity	5 to 95% noncondensing
  Certifications	CE, FCC, IC
  Software
  WiFi standards	802.11 a/b/g/n/r/k/v/ac
  Wireless security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
  BSSID	Up to 8 per radio
  VLAN	802.1Q
  Advanced QoS	Per-user rate limiting
  Guest traffic isolation	Supported
  Power save	Supported
  WMM	Voice, video, best effort, and background
  Concurrent clients	250+
  Supported Data Rates (Mbps)
  802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
  802.11b	1, 2, 5.5, 11 Mbps
  802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
  802.11n	6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
  802.11ac	6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
