Ubiquiti UniFi AI Theta Hub | UVC-AI-THETA-HUB Fashion

Ubiquiti UniFi AI Theta Hub | UVC-AI-THETA-HUB

• Description
• Specifications

• Ubiquiti UniFi AI Theta Hub

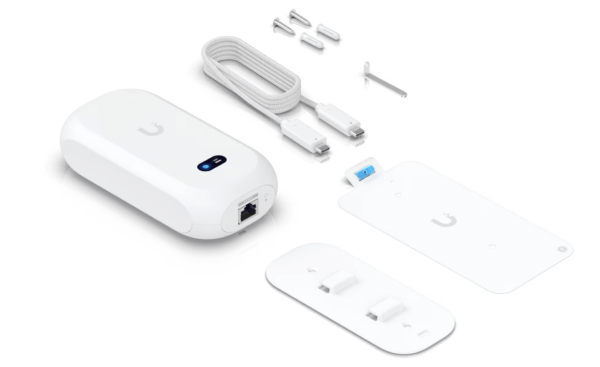

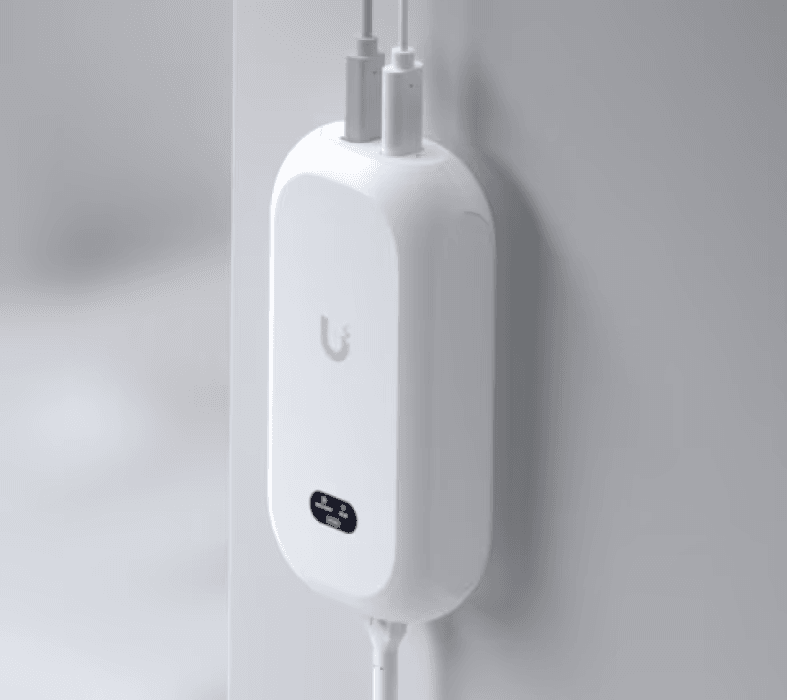

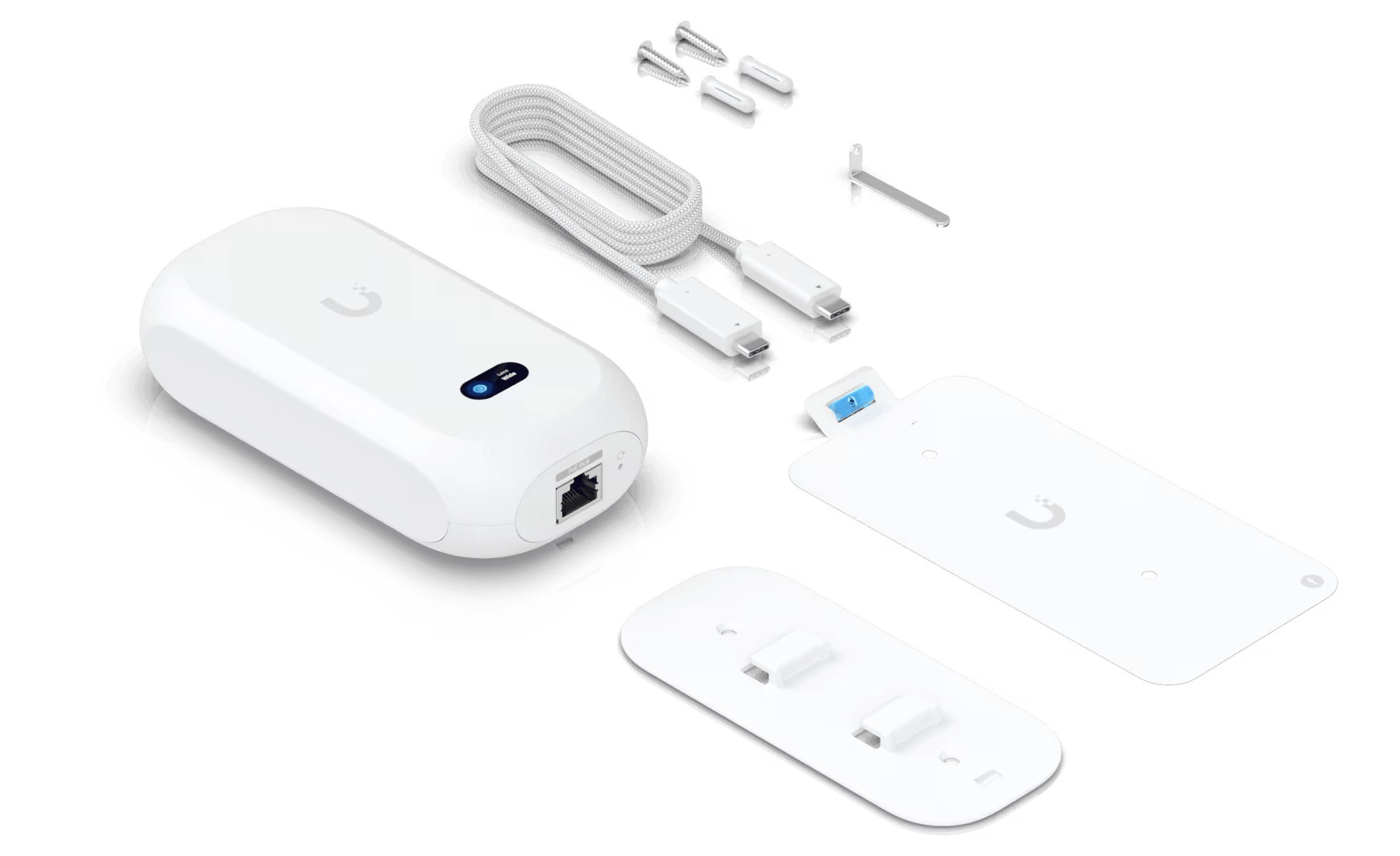

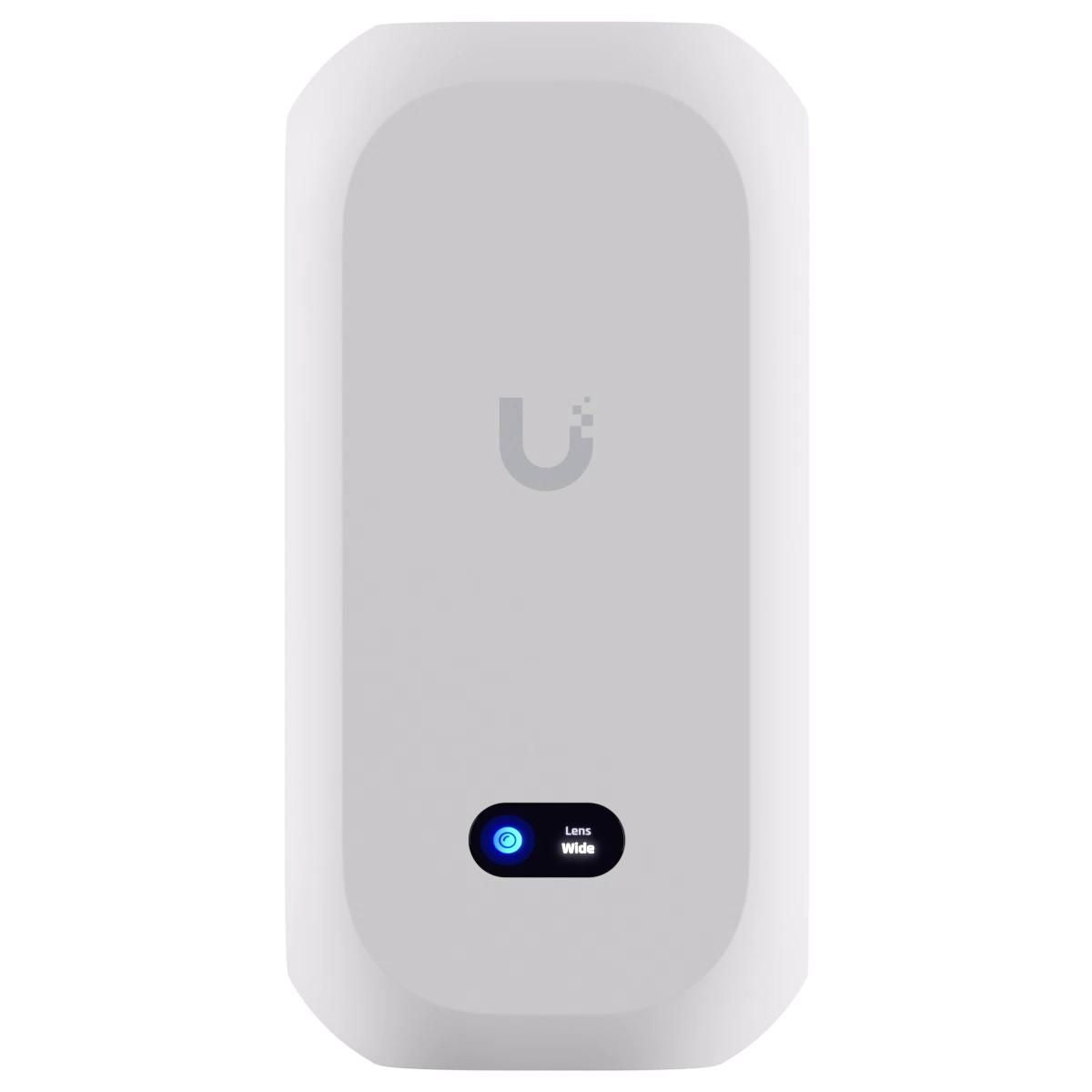

  Ubiquiti UniFi AI Theta Hub (UVC-AI-Theta-Hub)
  The Ubiquiti UniFi AI Theta Hub is a remote processing hub for any AI Theta deployment, compatible with any AI Theta Lens and AI Theta Audio.

  UVC-AI-Theta-Hub Key Features
  (1) video and (1) audio port for connecting a lens and audio module
  Supports AI Theta Standard and Professional Lenses, with  included cable for connecting a lens
  Advanced AI: Detect people, read license plates, and more
  0.96″ color display for device status and configuration
  Connect and power using PoE
  Supports optional AI Theta Audio module for two-way audio

• Technical Specifications
  Mechanical
  Dimensions	140 x 70 x 38 mm (5.5 x 2.8 x 1.5”)
  Weight	UVC-AI-Theta-Hub: 330 g (11.6 oz)<br>UVC-AI-Theta-Hub Mount: 35 g (1.2 oz)
  Enclosure material	Aluminum alloy
  Mount material	Aluminum alloy
  Video
  Video compression	H.264
  Image settings	Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
  System
  Processor	Quad-core Arm® Cortex®-A53 based chip
  Networking interface	GbE RJ45 port
  Max. power consumption	12.5W
  Power method	PoE
  Supported voltage range	37—57V DC
  Output power	5V DC, 1A per port
  Display	0.96″ color display
  Button	Factory reset
  Mounting	Wall, ceiling mount
  Ambient operating temperature	-20 to 40° C (-4 to 104° F)
  Ambient operating humidity	10 to 90% noncondensing
  Certifications	FCC, IC, CE
  Software
  UniFi OS application	UniFi Protect
  Mobile app	UniFi Protect iOS™ and Android™
