Ubiquiti UniFi AI DSLR Indoor / Outdoor 4K PoE Camera | UVC-AI-DSLR
- Description
- Specifications
-

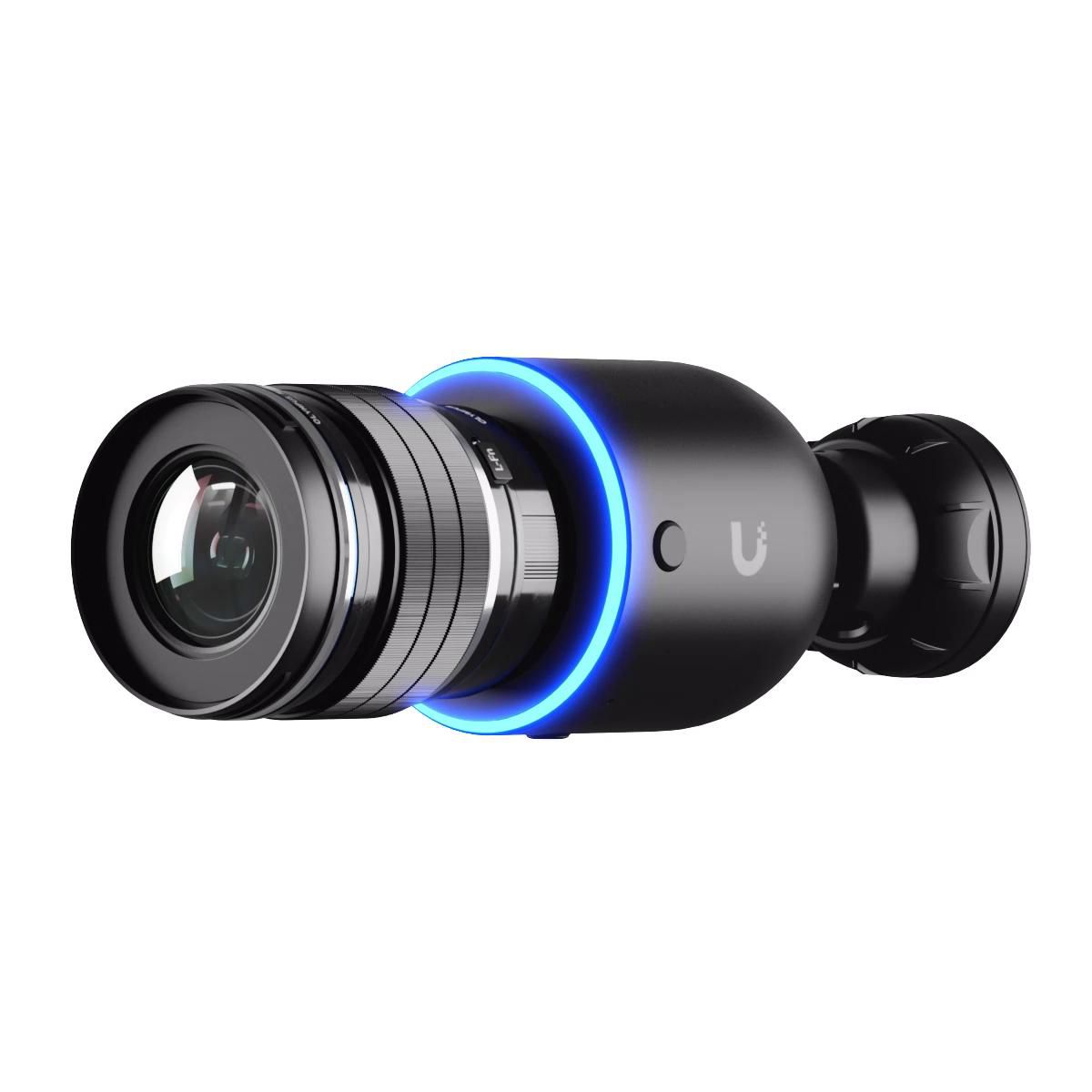

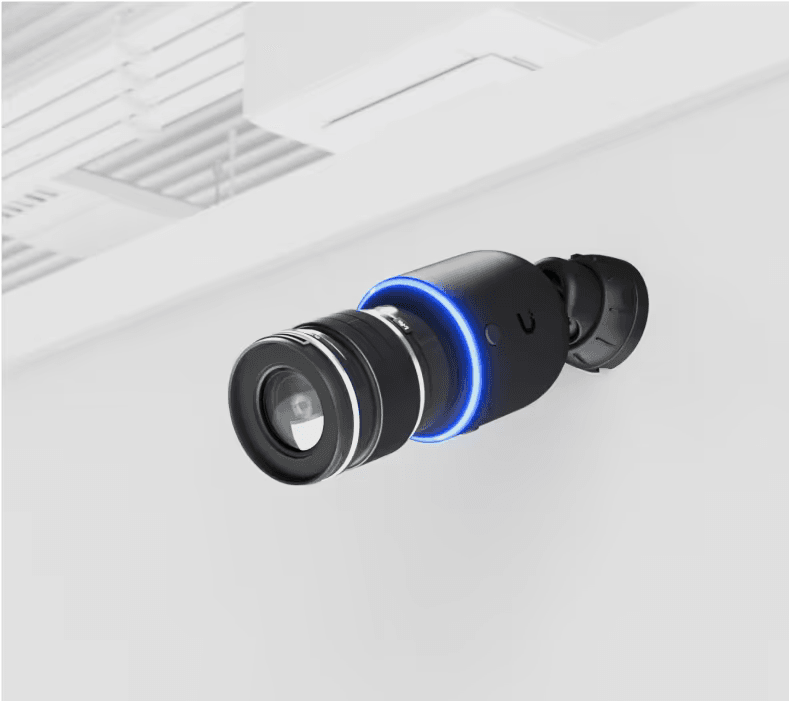

Ubiquiti UniFi AI DSLR Indoor / Outdoor 4K PoE Camera
Ubiquiti UniFi Camera AI DSLR (UVC-AI-DSLR)

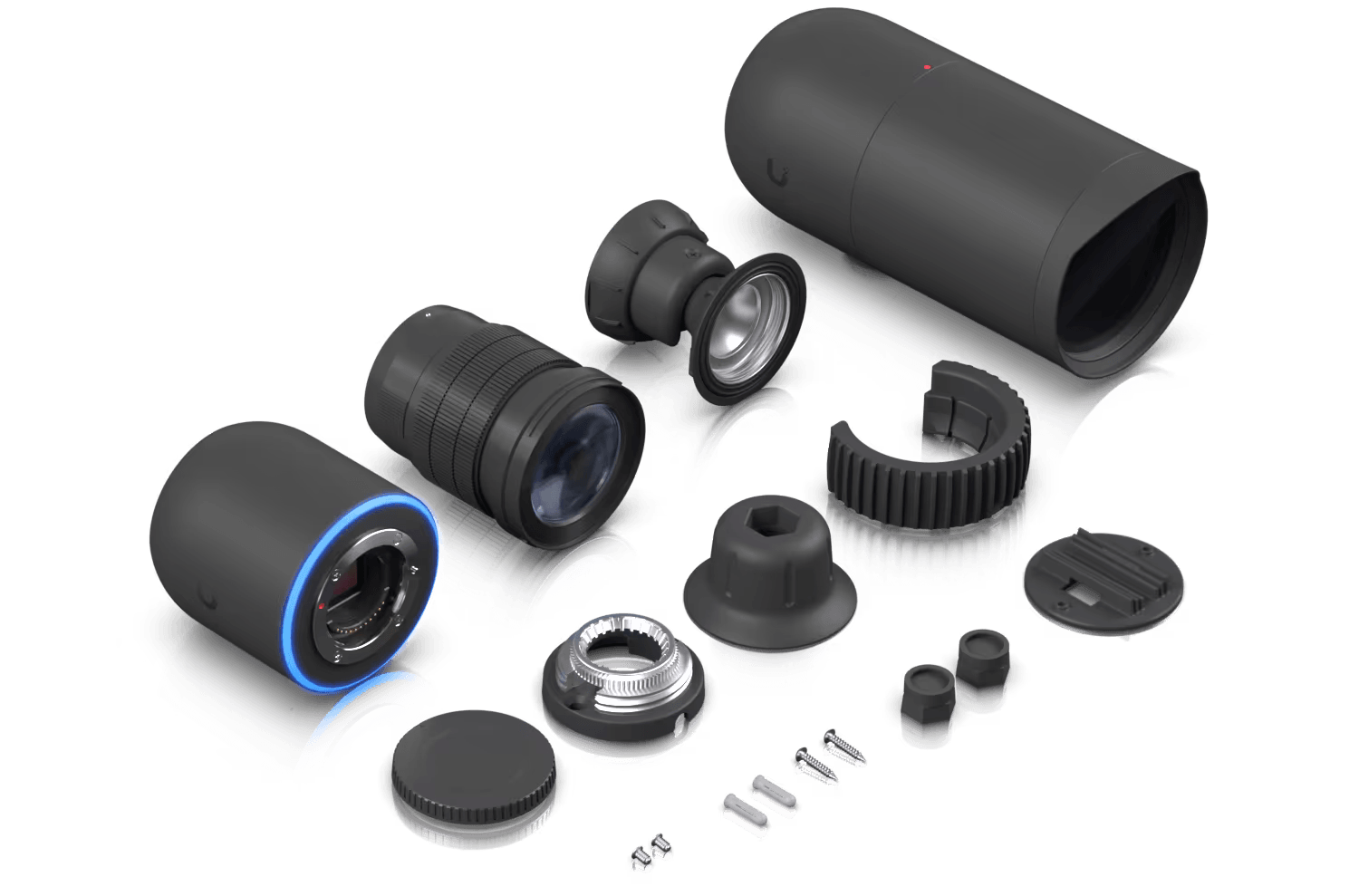

The Ubiquiti UniFi UVC-AI-Theta is a versatile and high-performance security camera built to meet a variety of surveillance needs. With an array of options for different mounting configurations, this camera’s dimensions vary depending on the setup, offering flexibility in deployment. Whether it’s the compact Ø80 x 89 mm without a mount or the outdoor case Ø91.6 x 196.3 mm, the camera’s aluminum alloy enclosure ensures durability. With a 4/3″ 10MP CMOS sensor and lens options such as the M. Zuiko Digital ED 17 mm f/1.2 PRO and the M. Zuiko Digital ED 45 mm f/1.2 PRO, it captures high-quality imagery with wide-angle and telephoto view angles.UVC-AI-DSLR Key Features
4K (8MP) video resolution
High-sensitivity imaging sensor
Wide aperture M4/3 f/1.2 prime lens included
Advanced AI: Detect people, read license plates, and more
Integrated 2-way audio*
Connect and power using PoE+
Weatherproof (outdoor exposed)In the realm of video, the UVC-AI-Theta impresses with H.264 compression, a 3840 x 2160 resolution, and a maximum frame rate of 30 FPS. Users have the ability to fine-tune image settings for optimal results, including colour, brightness, sharpness, contrast, white balance, exposure control, and various noise reduction options. The Quad-core Arm Cortex-A53 based chip powers the camera, and it’s equipped with a GbE RJ45 port for networking. With a power-efficient design, the camera consumes 17.77W when the lens is operational, and it can be powered using PoE+ with a supported voltage range of 37-57V DC. It’s easy to manage and control with UniFi Protect software and mobile apps for iOS and Android.
The UVC-AI-Theta offers a range of lens options, versatile image settings, and robust hardware, making it a valuable asset for various surveillance applications. With its durable aluminum alloy construction and adaptable mounting solutions, it’s suitable for both indoor and outdoor use. Its high-resolution video capabilities, efficient power consumption, and compatibility with UniFi Protect software make it a reliable choice for those seeking a versatile and feature-rich surveillance camera.
-
Specification Description Dimensions Without mount: Ø80 x 89 mm (Ø3.1 x 3.5″) With mount: Ø80 x 153 mm (Ø3.1 x 6″) M. Zuiko Digital ED 17 mm PRO: Ø68.2 x 87 mm (Ø2.7 x 3.4″) M. Zuiko Digital ED 45 mm PRO: Ø70 x 84.9 mm (Ø2.8 x 3.3″) Outdoor case: Ø91.6 x 196.3 mm (Ø3.6 x 7.7″) Weight Without mount: 660 g (1.5 lb) With mount: 820 g (1.8 lb) M. Zuiko Digital ED 17 mm PRO: 390 g (0.9 lb) M. Zuiko Digital ED 45 mm PRO: 410 g (0.9 lb) Outdoor case: 510 g (1.1 lb) Enclosure Material Aluminum alloy Mount Material Wall mount: aluminum alloy Pole mount: aluminum alloy Weatherproofing IPX5 (With the outdoor case) Sensor 4/3″ 10MP CMOS Lens UVC-AI-DSLR: M. Zuiko Digital ED 17 mm ƒ/1.2 PRO UVC-AI-DSLR-LD: M. Zuiko Digital ED 45 mm ƒ/1.2 PRO View Angle Wide: H: 52°, V: 39°, D: 65° (UVC-AI-DSLR) Telephoto: H: 21.6°, V: 16.2°, D: 27° (UVC-AI-DSLR-LD) Resolution UVC-AI-DSLR/UVC-AI-DSLR-LD: 8MP 3840 x 2160 (16:9) Max. Frame Rate 30 FPS Image Settings Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR/3DNR/NR by motion, masking, text overlay Processor Quad-core Arm® Cortex®-A53 based chip Networking Interface GbE RJ45 port Max. Power Consumption 17.77W (With lens working) Power Method PoE+ Supported Voltage Range 37—57V DC Buttons Factory reset Lens release key Mounting Wall, pole mount (Included) Tripod mount (Optional) Ambient Operating Temperature -20 to 40° C (-4 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing Certifications FCC, IC, CE Microphone Yes (Can be disabled) Audio function will be disabled when using its outdoor case. Speaker Yes Audio function will be disabled when using its outdoor case. Web Application UniFi Protect: Version 2.2.2 and later Mobile App UniFi Protect iOS™ and Android™: Version 1.7.0 and later
