Ubiquiti UniFi Access G2 Starter Kit Professional | UA-G2-SK-PRO

Ubiquiti UniFi Access G2 Starter Kit Professional | UA-G2-SK-PRO

• Description
• Specifications

• Ubiquiti UniFi Access G2 Starter Kit Professional


  The Ubiquiti Access Gen 2 Starter Kit Professional (UA-G2-SK-PRO) is the collective kit for a professional start-of-the-art access control system. The UniFi Access Pro Starter Kit is easy to install, and able to integrate with the majority of magnetic locks and electric bolt/strike mechanisms. With the use of the UniFi Access Controller providing a wide range of management tools, it’s never been simpler to manage users, visitors and access policies from a single interface.

  The UniFi Access Door Hub includes capabilities for PoE++ support, multiple input and output options and a 10/100/1000 Base-T networking interface, and the Access Reader G2 Pro features a robust polycarbonate enclosure, weatherproofed to IP55.

  Unlike the standard access starter kit, the UA-SK, the UniFi Access G2 Pro Starter Kit also comes with two pocket fobs for instant secure access. and a G2 reader 2 featuring a touch screen and camera.

  Key Highlights
  5 x 10/100/1000 Base-T Gigabit Ethernet ports
  IP55 rated UA-G2-Pro
  PoE-Out compatible with 20W PoE budget
  Door position sensor
  UL 294 level destructive attack: Level I
  LED status indicators

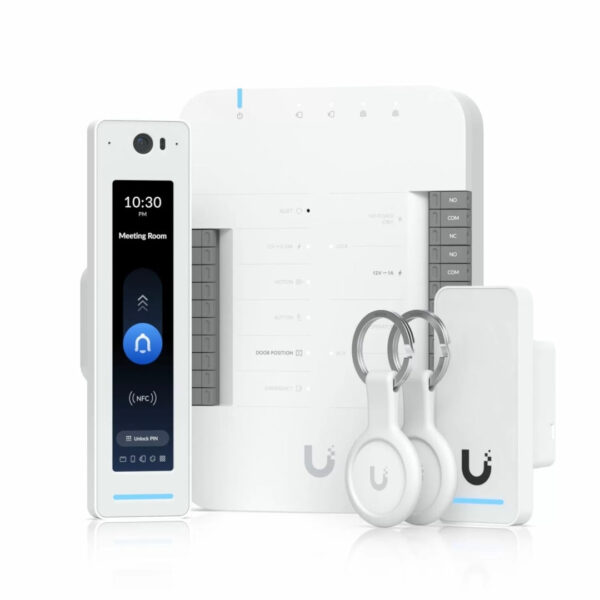

  What’s in the box?
  1 x UA-HUB
  1 x UA-G2-PRO
  1 x UA-G2
  2 x UA-POCKET

• Attribute	UA-Hub-Door	UA-G2-Pro	UA-G2	UA-Pocket
  Dimensions	174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3″)	160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6″)	93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4″)	84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29″)
  Weight	363 g (12.8 oz)	136 g (4.8 oz)	82 g (2.9 oz)	16 g (0.56 oz)
  Enclosure material	Polycarbonate	Polycarbonate, glass	Polycarbonate, glass	Polycarbonate, stainless steel
  Mount material	Polycarbonate	Aluminum alloy	–	–
  Mounting	–	Wall, gang box	In wall, gang box	–
  Weatherproofing	–	IP55	IP55	IP54
  Networking interface	(5) 10/100/1000 Base-T	(1) GbE RJ45 port	(1) 10/100 MbE RJ45 port	–
  Connectivity	–	BLE 4.2, NFC	BLE 4.1, NFC	NFC
  Power method	PoE++	PoE	PoE	–
  Max. power consumption	30W (without PoE), 50W (with PoE)	6W	5W	–
  PoE input	50V DC, 1A	–	–	–
  PoE output	PoE passthrough, (4) PoE, 50V DC, total 20W	–	–	–
  Sensor	–	Proximity sensor	Proximity sensor	–
  Camera	–	4000 x 3000, 12 MP, 30 FPS	–	–
  View angle	–	H: 96.67°, V: 123.15°, D: 153.11°	–	–
  Microphone	–	Yes	–	–
  Speaker	–	(1) 4 ohm, 1.5W	(1) 8 ohm, 0.7W	–
  LEDs	System: white/blue; Output relays: white	R/G/B/W, Flash	R/G/B/W	–
  Button	(1) Factory-reset	(1) Factory-reset	(1) Factory-reset	–
  NFC frequency	–	13.56 MHz	13.56 MHz	13.56 MHz
  NFC read range	–	< 30 mm	< 30 mm	–
  Operating environment	Indoor use only	Outdoor use	Outdoor use	–
  Ambient operating temperature	0 to 40° C (32 to 104° F)	Device: -30 to 45° C (-22 to 113° F), Display: -10 to 45° C (14 to 113° F)	-30 to 45° C (-22 to 113° F)	-10 to 45° C (14 to 113° F)
  Ambient operating humidity	5 to 95% noncondensing	5 to 90% noncondensing	5 to 90% noncondensing	10 to 90% noncondensing
  Certifications	CE, FCC, IC, UL 294, CAN/ULC-60839-11-1	CE, FCC, IC, UL 294, CAN/ULC-60839-11-1	CE, FCC, IC, UL 294, CAN/ULC-60839-11-1	CE
  UL 294 level	Level I (Destructive attack, Line security, Endurance, Standby power)	Level I (Destructive attack, Line security, Endurance, Standby power)	Level I (Destructive attack, Line security, Endurance, Standby power)	–
  Digital input	Request to exit/enter, remote release, sensor	–	–	–
  Dry output relay	Lock: 30V DC, 1A; Aux: 30V DC, 1A	–	–	–
  Powered output relay	Lock: 12V DC, 1A; Aux: 12V DC, 0.33A	–	–	–
  Wiring gauge requirements (AWG)	Total length to device: Output load current at 12V DC:	–	–	–
  6.1 m (20 ft)	100mA: 22; 250mA: 22; 500mA: 22; 1A: 18	–	–	–
  15.2 m (50 ft)	100mA: 22; 250mA: 22; 500mA: 22; 1A: 18	–	–	–
  30.5 m (100 ft)	100mA: 22; 250mA: 22; 500mA: 18; 1A: 18	–	–	–
  PoE cabling requirements	Minimal conductor gauge permitted: 24 AWG (0.21 mm²)	Cable 5e minimum recommended; Minimal conductor gauge: 26 AWG (0.13 mm²)	Cable 5e minimum recommended; Minimal conductor gauge: 26 AWG (0.13 mm²)	–
  ESD/EMP protection	–	Air: ±15kV, contact: ±8kV	Air: ±15kV, contact: ±8kV	–
  Flash	–	Yes	–	–
