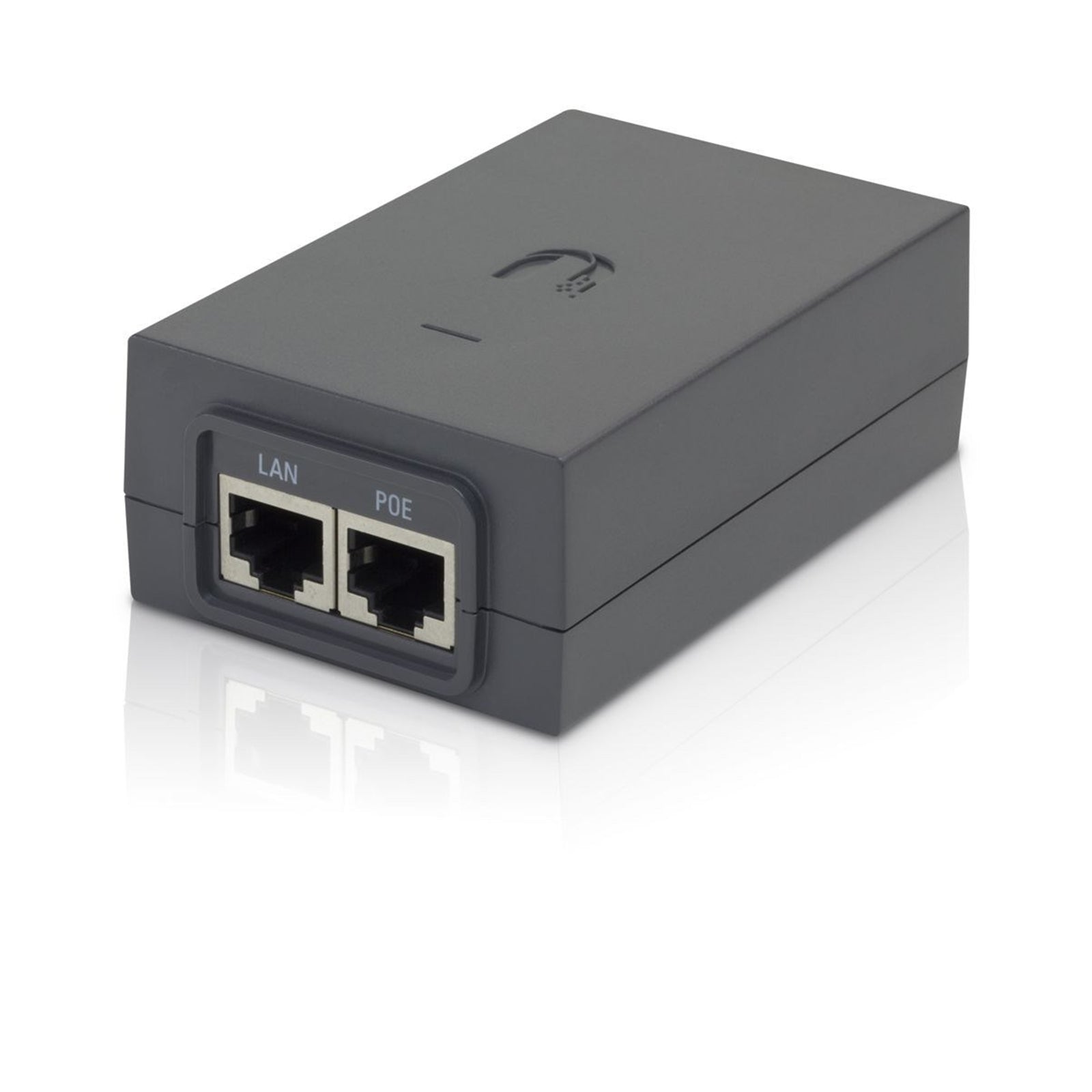

Ubiquiti PoE Adapter Gigabit Ethernet 48 V
Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices
Including
airFiber
airMAX
EdgeMAX
mFi
UniFi AP
UniFi Video / airVision
Check product specifications to verify PoE compatibility.Ubiquiti PoE Adapter Compatibility with the airGateway
Specific PoE Adapter models are designed to work with the airGateway. The airGateway is a compact CPE (consumer premises equipment) gateway with built-in Wi-Fi used to connect the subscriber’s local network to the WISP network.
The airGateway is available in three models
airGateway Standard model with an internal antenna
airGateway Pro Dual-Band Wi-Fi model with an internal antenna
airGateway-LR Long-range Wi-Fi model with an external antenna for extended range -
Technical Specifications Details Model POE-48-24W-G Dimensions 92 x 60 x 33 mm (3.6 x 2.4 x 1.3″) Weight 159 g (5.6 oz) Output voltage 48V DC @ 0.5A LAN activity indicator No Gigabit LAN port Yes Remote reset capability No Reset button No Rated voltage 100-240V AC @ 50/60Hz Input current 0.6A @ 120V AC, 0.4A @ 240V AC Inrush current <65A Peak @ 120V AC, <130A peak @ 230V AC Efficiency 80+% Output ripple 1% Max. Switching frequency 65 kHz Line regulation ≤ 3% Load regulation ≤ 5% 2-pair powering Pins 4, 5 (+) and Pins 7, 8 (-) 4-pair powering – Storage temperature -30 to 70°C (-22 to 158° F) Ambient operating temperature 0 to 40° C (32 to 104° F) Ambient operating humidity 35 to 95% noncondensing AC connector IEC-320 C6 Data IN / PoE RJ45 shielded socket Surge protection Difference and common mode Clamping protection 11V data, 60V power Max. surge discharge 1500A (8/20 μs) power Peak pulse current 36A (10/1000 μs) data Shunt capacitance <5 pF data Response time <1 ns Certifications CE, FCC, IC, UL
