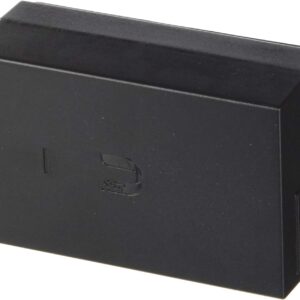

Ubiquiti Networks PoE Adapter Gigabit Ethernet 24 V | POE-24-24W-G-WH

Ubiquiti Networks PoE Adapter Gigabit Ethernet 24 V | POE-24-24W-G-WH

• Description
• Specifications
• Downloads

• Ubiquiti Networks PoE Adapter Gigabit Ethernet 24 V


  Device Protection
  PoE Adapters are highly reliable, and when used with Ubiquiti TOUGHCable, they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.

  Convenient Wall-Mounting
  The 24V, 0.5A models, POE-24-12W and POE-24-12W-G, are wall-mountable using the optional wall-mount brackets.

  Seamless airGateway Compatibility
  The 15V, 0.8A and 24V, 0.5A models, POE-15-12W, POE-24-12W and POE-24-12W-G, work with the airGateway to bridge airMAX connections to Wi-Fi at customer locations.

• Feature	Detail
  Certification	IC, UL
  LED indicators	Yes
  Plug and Play	Yes
  Product colour	White
  Surge protection	Yes
  Network
  Ethernet interface type	Gigabit Ethernet
  Ethernet LAN data rates	10/100/1000 Mbit/s
  Power over Ethernet (PoE)	Yes
  Operational conditions
  Operating relative humidity (H-H)	5 – 95 %
  Operating temperature (T-T)	0 – 40 °C
  Storage temperature (T-T)	-30 – 70 °C
  Package dimensions
  Gross Weight (Package, kg)	0.3516 kg
  Packaging content
  Number of products included	5 pc(s)
  Ports & interfaces
  Ethernet LAN (RJ-45) ports	2
  RJ-45 input ports	1
  RJ-45 output ports	1
  Power
  AC adapter frequency	47 – 63 Hz
  AC adapter input voltage	90 – 260 V
  Input current	0.75 A
  Input frequency	50/60 Hz
  Input voltage	100 – 240 V
  Output current	1 A
  Power over Ethernet (PoE) voltage	24 V
  Product dimensions
  Net Weight (Product, kg)	0.16 kg
  Product Depth	9.6 cm
  Product Height	3.5 cm
  Product Width	6.2 cm
  Technical details
  Harmonized System (HS) code	85044090
  Sustainability certificates	CE/Federal Communications Commission (FCC)
  Sustainability compliance	Yes
  Vendor information
  Brand Name	Ubiquiti
  Warranty	2 Year(s)
  Weight & dimensions
  Dimensions (WxDxH)	88 x 57 x 33 mm
  Categories
  Main category	Network
  Subcategory	Wired Network
  Subcategory	PoE Adapters

• Description	Downloads
  Ubiquiti Networks PoE Adapter Gigabit Ethernet 24 V POE-24-24W-G-WH DataSheet	Downloads
