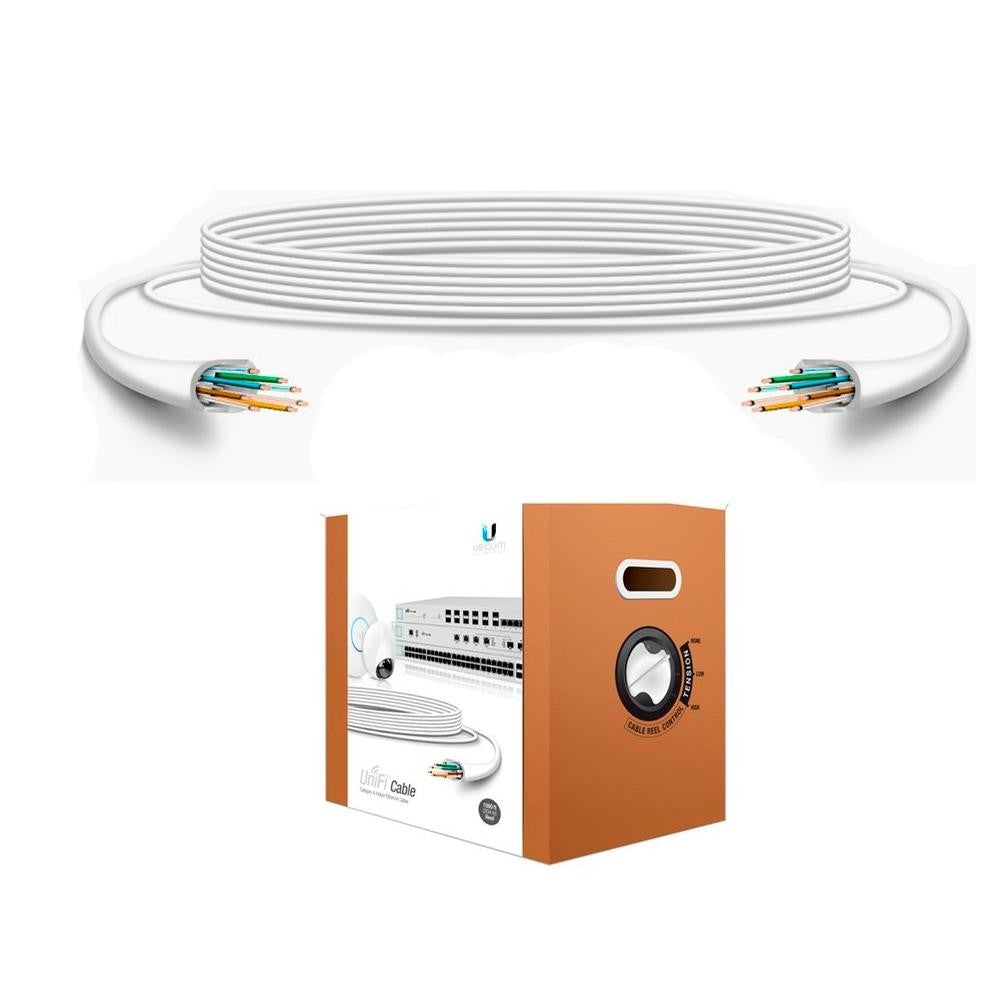

Ubiquiti Networks Networking Cable White 305m Cat6 U/UTP (UTP) | U-Cable-C6-CMR

Ubiquiti Networks Networking Cable White 305m Cat6 U/UTP (UTP) | U-Cable-C6-CMR

• Description
• Specifications

• Ubiquiti Networks Networking Cable White 305m Cat6 U/UTP (UTP)


  UniFi Cable Category 6 Indoor Ethernet Cable for your high-speed UniFi and general indoor network deployments
  U-Cable-C6-CMR is a Category 6 UTP (Unshielded Twisted Pair) cabling that supports speeds of 1Gbps. It uses 23 AWG solid copper conductor pairs and an anti-crosstalk divider, which improves pair isolation. CMR (Communications Multipurpose cable, Riser) cabling is flame-retardant and can be run vertically between floors in non-plenum areas. UniFi Cable is CMR fire-rated (also called riser-rated), making it suitable for in-wall and riser cabling applications. We recommend using Category 6 Ethernet connectors to optimize performance and accommodate the size of the 23 AWG conductors.

  Ubiquiti UniFi Cable (UC-C6-CMR) Key Features
  Speeds of up to 10G Ethernet
  23 AWG Solid Copper Conductor Pairs
  Anti-Crosstalk Divider for Improved Pair Isolation
  Length: 1000 ft

  Performance
  Available in lengths of 1000 ft(304 m), UniFi Cable is Category 6UTP (Unshielded Twisted Pair) cabling that supports speeds of up to 10G Ethernet. It uses 23 AWG solid copper conductor pairs and an anti-crosstalk divider, which improves pair isolation.

  Environment
  CMR (Communications Multipurpose cable, Riser) cabling is flame-retardant and can be run vertically between floors in non‑plenum areas. UniFi Cable is CMR fire-rated (also called riser-rated), making it suitable for in-wall and riser cabling applications.

• Technical Specifications
  Mechanical
  Box dimensions	474 x 346 x 458 mm (18.7 x 13.6 x 18″)
  Box weight	14.8 kg (32.7 lb)
  Cable length	305 m (1000 ft)
  Cable color	White
  Cable type	Category 6
  Shielding type	UTP
  Flame rating	CMR
  Conductor wire gauge	23 AWG
  Conductor type	Solid bare copper
  Jacket material	PVC
  Jacket diameter	6.0 ± 0.2 mm
  Bend radius	Min. 24 mm
  Pulling tension	Max. 110 N
  Storage temperature	-20 to 75°C (-4 to 167°F)
  Installation temperature	0 to 60°C (32 to 140°F)
  Ambient operating temperature	-20 to 60°C (-4 to 140°F)
  Anti-crosstalk divider	Yes
  Ripcord	Yes
  Data rate	10/100/1000 Base-T
  Reference bandwidth	Up to 600 MHz
  Standards
  Electrical transmission	ANSI/TIA-568-C.2 (2009)
  	ISO/IEC 11801 (Edition 2.2)
  	IEC 61156-5 (Edition 2.1)
  Flame test	UL 1666 (CMR)
  Material and construction	UL 444
  	CSA 22.2 NO.214
  	EU Directive 2011/65/EU (RoHS2)
  	EU Directive 2006/95/EC (LVD)
