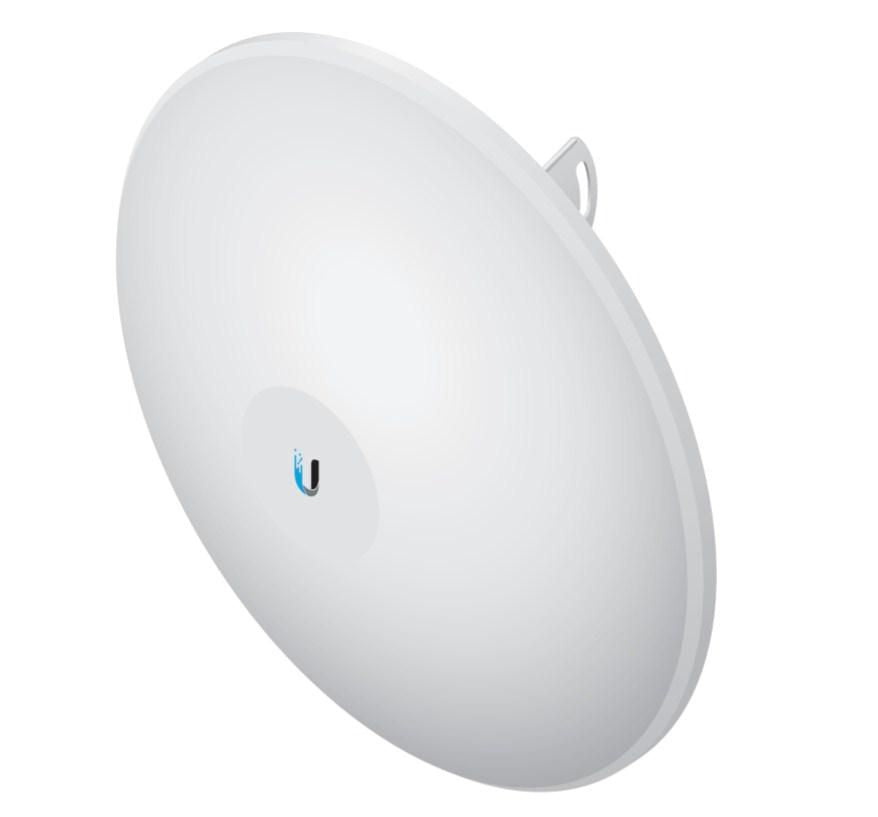

Ubiquiti Networks Network Antenna Directional Antenna 27 dBi
Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam™ ac is ideal for CPE deployments requiring maximum performance.
Integrated Radio Design
Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.Performance Breakthrough
airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.Superior Processing
Ubiquiti’s airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.Incredible Antenna “Beam” Performance
The form factor of the PowerBeam™ ac features the highest gain for its size. The PowerBeam ac’s excellent beam directivity provides the best performance in high-noise environments.Advanced Software Technology
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.Protective Radome
The PowerBeam™ ac PBE-5AC-500 includes a protective radome to shield the radio from nature’s harshest elements. -
Features Description Antenna type Directional antenna Certification FCC, IC, CE LED indicators LAN/Power/WLAN Mounting Pole Polarization Dual polarization Product colour White RoHS compliance Yes Survival wind speed 96 km/h Voltage Standing Wave Ratio (VSWR) 1.5:1 Wind load 264.6 Legal Information EU ECCN Code 5A002 UNSPSC Code 43221729 US ECCN Code 5A002 Logistics data Harmonized System (HS) code 85177100 Operational conditions Operating relative humidity (H-H) 5 – 95% Operating temperature (T-T) -40 – 70 °C Other features Dimensions (WxDxH) 620 x 620 x 386 mm Package dimensions (verified) Depth Verified 61 cm Gross Weight Verified 6.55 kg Height Verified 32 cm Width Verified 61 cm Performance Antenna gain level (max) 27 dBi Built-in processor Yes Flash memory 16 MB Frequency band 5 GHz Internal memory 128 MB Internal memory type DDR2 Processor frequency 720 MHz Processor model Atheros MIPS 74Kc Power Power consumption (max) 8.5 Watt Product dimensions Net Weight (Product, kg) 3.15 kg Product Depth 31.5 cm Product Height 52.5 cm Product Width 52.5 cm Technical details Harmonized System (HS) code 85177100 Sustainability certificates RoHS Vendor information Brand Name Ubiquiti Warranty 2 Year(s) Categories Main category Network Subcategory Wireless Network Subcategory Passive Antennas
