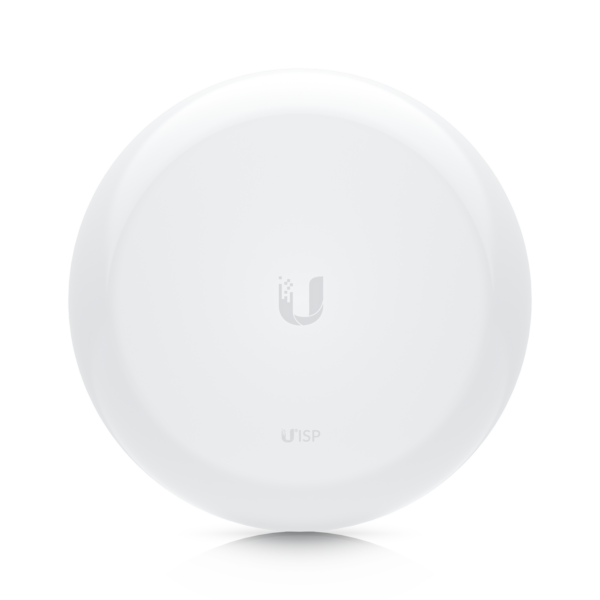

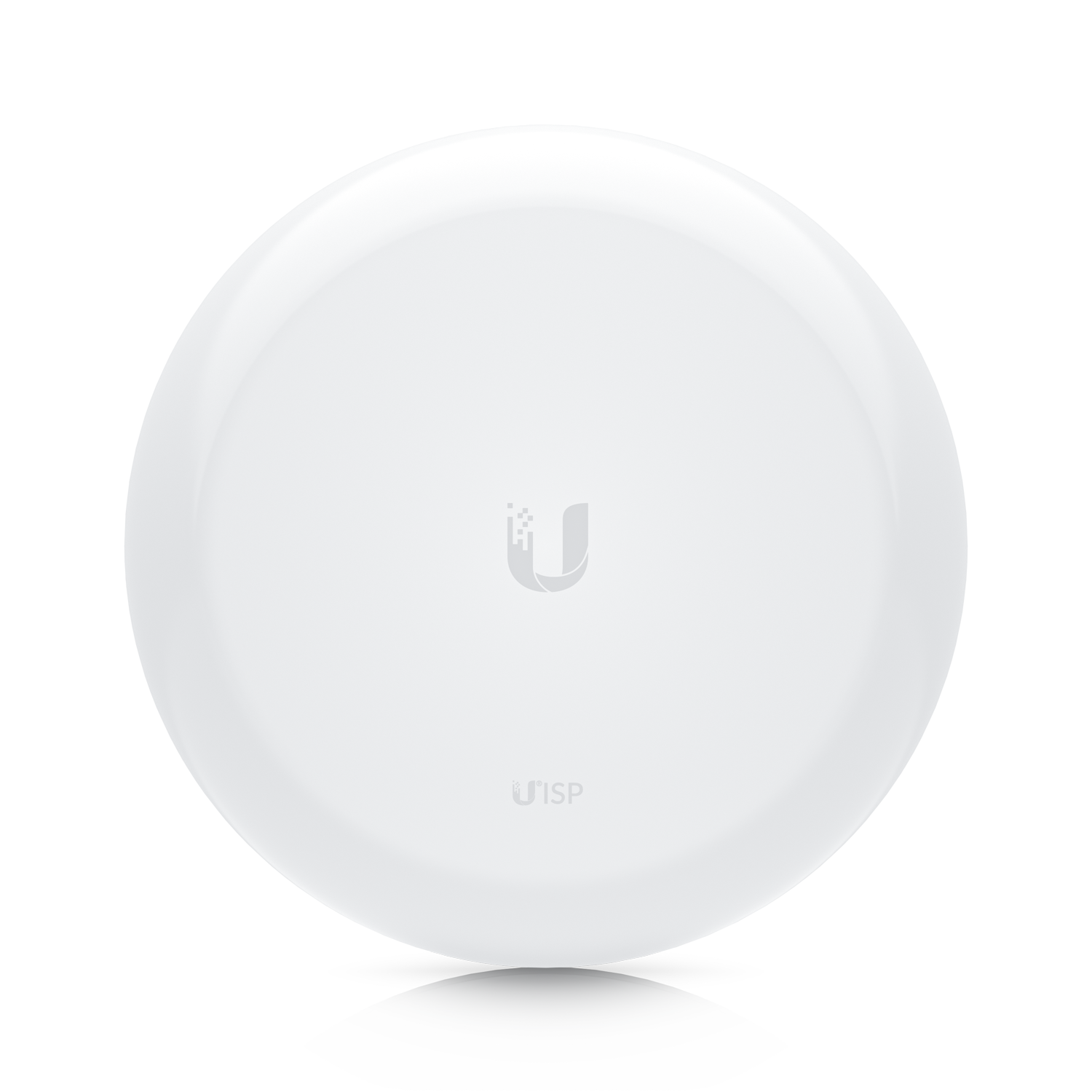

Ubiquiti Networks airFiber 60 HD Network Bridge 1800 Mbit/s White
Multi-gigabit, 60 GHz bridge with SFP+ support and a 2 km link range.
The airFiber 60 HD (AF60 HD) is a 60 GHz radio designed to create superior mid-range, point-to-point (PtP) links up to 2 km. The AF60 HD delivers low-interference, low-latency throughput within the 60 GHz spectrum. Compact and highly durable, the AF60 HD also features integrated GPS and a Bluetooth management radio to simplify setup, configuration, and monitoring. This bridge is ideal for ISPs looking to maximize signal linking with cost-effective equipment.Works with the Ubiquiti Internet Service Provider (UISP™) Application
Centrally manage your networks and customers with ease
Organize your subscription plans, setup billing and invoicing, and grow your customer base
View your network’s topology, advanced analytics, and more
Set up devices quickly and manage them on the go with powerful mobile app support -
Category Specification Antenna Antenna Design External Antenna Gain Level (max) 38 dBi Antenna Type External Certificates Certification FCC, IC, CE, terragraph Data Transmission Maximum Data Transfer Rate 1800 Mbit/s Maximum Transfer Distance 12000 m Features LED Indicators LAN Material Aluminium/Polycarbonate (PC) Mounting Type Pole Power LED Yes Product Colour White Product Type Network Bridge Legal Information UNSPSC Code 43222608 Logistics Data Harmonized System (HS) Code 85176990 Management Features Web-based Management Yes Memory RAM Capacity 2000 MB Network Ethernet LAN Yes Ethernet LAN Data Rates 10/100/1000 Mbit/s Ethernet LAN Interface Type Gigabit Ethernet Operational Conditions Operating Relative Humidity 5 – 95 % Operating Temperature (T-T) -40 – 131 °F / -40 – 55 °C Package Dimensions Gross Weight (Package, kg) 2.5 kg Packaging Data Quantity per Pack 1 pc(s) Ports & Interfaces Connectivity Technology Wired & Wireless Ethernet LAN (RJ-45) Ports 1 Power Power Consumption (max) 18 Watt Power over Ethernet (PoE) Voltage 48 V Power Source Type DC/PoE Product Dimensions Net Weight (Product, kg) 2 kg Product Depth 18.9 cm Product Height 8.9 cm Product Width 18.9 cm Security Security Algorithms WPA2-AES/WPA2-Enterprise/WPA2-PSK System Requirements Minimum System Requirements Modern Web Browser or Android/iOS Smartphone Vendor Information Brand Name Ubiquiti Warranty 2 Year(s) Wireless LAN Features Frequency Band 60 GHz Signal Strength 25 dBm -
Description Downloads Ubiquiti Networks airFiber 60 HD Network Bridge 1800 Mbit/s White | AF60-HD-EU DataSheet Downloads Ubiquiti Networks airFiber 60 HD Network Bridge 1800 Mbit/s White | AF60-HD-EU User Manual Downloads
