Ubiquiti Networks Access Control Reader Lite White

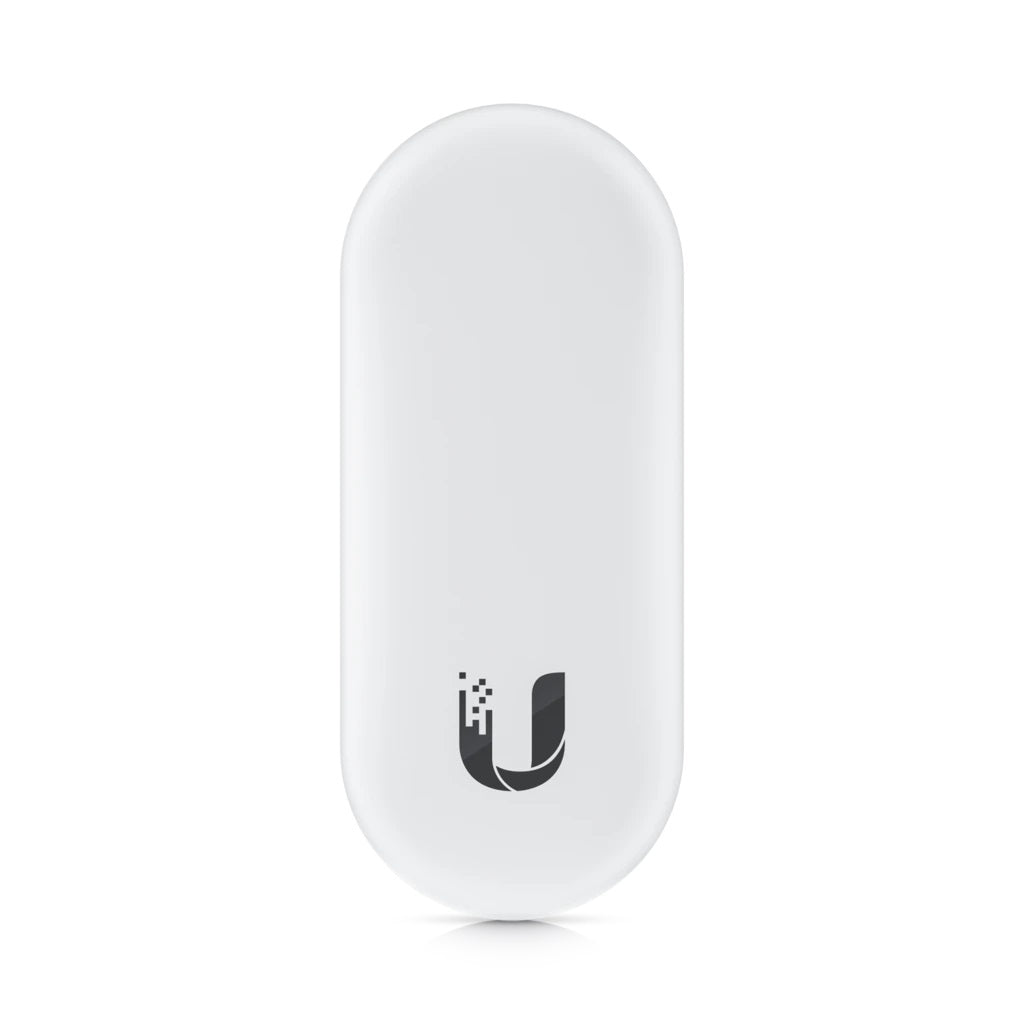

Ubiquiti UniFi Access Reader Lite (UA-Reader Lite)
The Ubiquiti UA-Reader Lite is a modern NFC and Bluetooth reader, a part of the UniFi Access solution. The UniFi Access Reader Lite has been designed for convenient use and secure access. The PoE powered reader is easy to install and supports the latest NFC security standards including AES-128 encrypted MIFARE DESFire. Unlocking the door is quick and secure with NFC card or with mobile app.Ubiquiti UA-Reader Lite Key Features
Elegantly designed NFC and Bluetooth reader
802.3af PoE powered by UniFi Access Hub
Advanced NFC credentials, including MIFARE DESFire
Built-in security element chip
For the best NFC security, use with our UA-Card
Mobile access with app (future software release)
UA-Lite will be shipped in silver color -
Category Details Mechanical Dimensions : 94.9 x 40 x 31.1 mm (3.7 x 1.6 x 1.2″) Weight : 67 g (2.4 oz) Enclosure material : Polycarbonate Mounting options : Wall-mount, gang box mount* Weatherproofing : IP54 Hardware Networking interface : 10/100 MbE Max. power consumption : 6W Power method : PoE Supported voltage range : 44–57V DC Button : (1) Factory reset LEDs : White/Blue Connectivity : Ethernet, BLE 4.1 NFC frequency : 13.56 MHz NFC reading range : <30 mm NFC standards : ISO 14443A, 14443B, 15693 NFC technology : NFC Tag 1, 2, 3, 4, 5 : MIFARE Classic : MIFARE Plus : MIFARE Ultralight : MIFARE DESFire Operating environment : Outdoor use Ambient operating temperature : -20 to 40° C (-4 to 104° F) Ambient operating humidity : 5 to 90% noncondensing Software information The software version of a product can be checked at https://unifi.ui.com UL 294 level Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I UL 294 statement Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. PoE cabling requirements Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable. CAN/ULC-60839-11-1 Grade Grade assignment: I Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 Document number, and issue date UA-Reader Lite, V02 LED System : Steady blue: Adopted/device is ready : Steady white: Pending adoption : Blinking white/blue: Upgrading firmware Software Management application : UniFi Access: Version 1.5.9 and later
