Ubiquiti Network Transceiver Module Fiber Optic 2500 Mbit/s

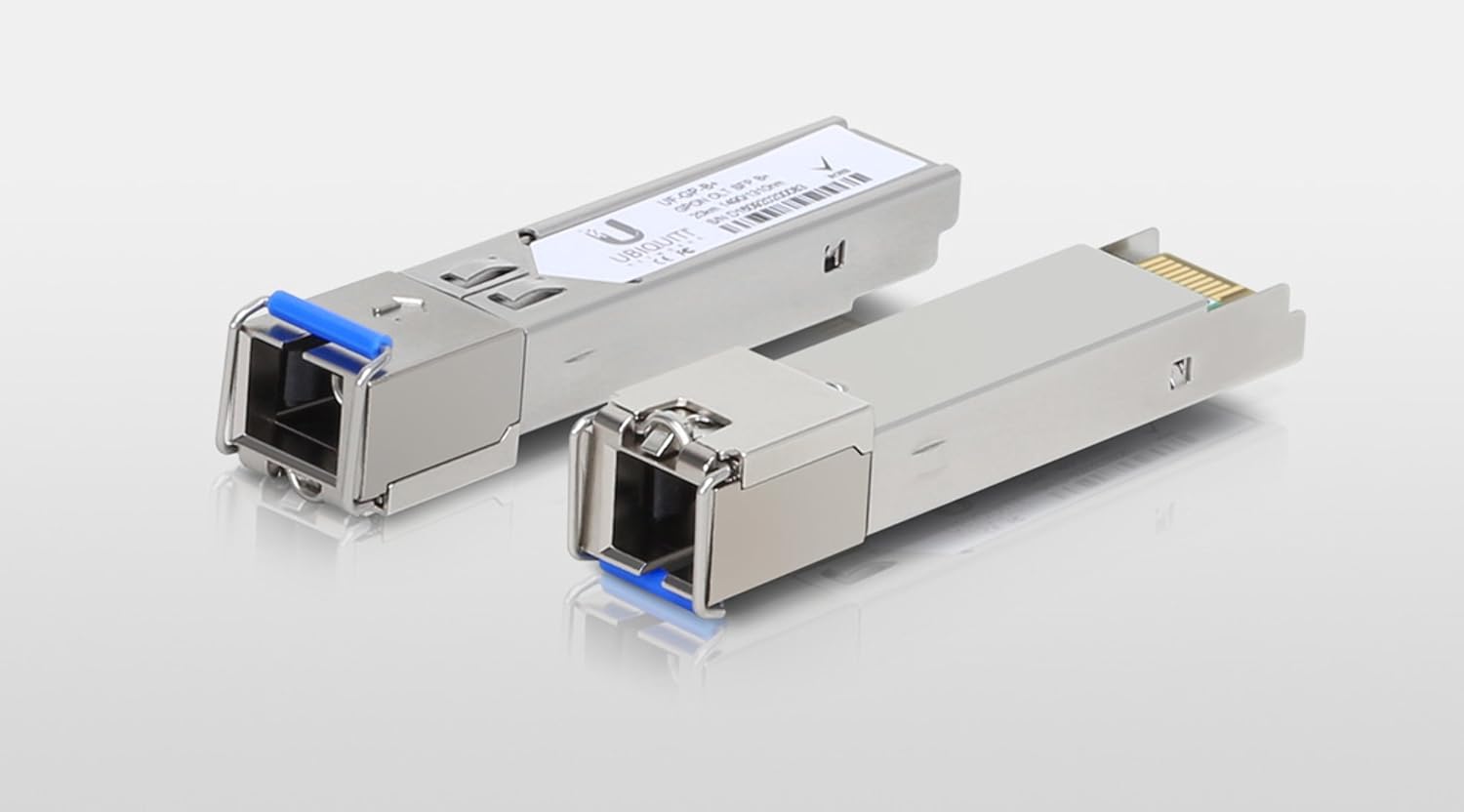

Ubiquiti U Fiber GPON OLT, Class B+ SFP Module (UF-GP-B+)
The Ubiquiti U Fiber UF-GP-B+ is designed to GPON slots in OLT unit from Ubiquiti Networks. It is a special SFP module with asymmetric speed 2,5Gbps upload, 1,25Gbps download in direction to clients. GPON SFP module has SC connector with UPC grind and 20km range. Transmitting power is 1.5 up to 5dBm, receiving sensitivity is -8 up to -28dBm. -
Features Details Product colour Metallic Legal Information EU ECCN Code N/A UNSPSC Code 43201553 US ECCN Code 5A992 Logistics data Harmonized System (HS) code 85369010 Package dimensions (verified) Depth Verified 1.3 cm Gross Weight Verified 0.1 kg Height Verified 1.2 cm Width Verified 7.1 cm Performance Fiber optic connector SC Fiber ports quantity 1 Harmonized System (HS) code 85369010 Interface type SFP Maximum data transfer rate 2500 Mbit/s Rx wavelength (min) 1310 nm SFP transceiver type Fiber optic Single-mode fiber (SMF) supported Yes Tx wavelength (max) 1490 nm Wavelength 1490 nm Product dimensions Net Weight (Product, kg) 0.09 kg Vendor information Brand Name Ubiquiti Warranty 2 Year(s) Categories Main category Network Subcategory Wired Network Subcategory Network Transceiver / SFP / GBIC Modules
