Ubiquiti Mission Critical Gigabit Ethernet (10/100/1000) Power Over Ethernet (PoE) 1U

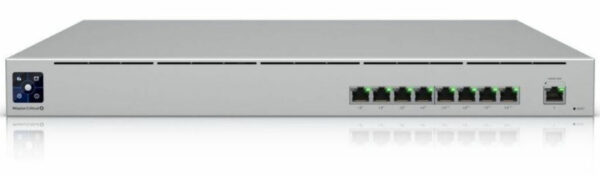

Ubiquiti UniFi Switch Mission Critical (USW-Mission-Critical)
The Ubiquiti UniFi Mission Critical is a switch with an egrated 368Wh Lithium-ion battery. The USW-Mission-Critical is capible of providing uninterruptible power for 8 devices.USW-Mission-Critical Key Features
(4) GbE PoE+, (4) GbE PoE++ ports
(1) GbE port
(2) 230V AC outputs; 120W total PoE available
Battery backup power system
Internal battery 368Wh -
Technical Specifications Mechanical Dimensions 442 x 480 x 44 mm Weight (Without mount) 9 kg Weight (With mount) 9.2 kg Enclosure material SGCC steel Mount material SGCC steel Supported rack depth 700 to 1000 mm Hardware Management interface Ethernet In-Band Networking interface (9) GbE RJ45 ports PoE interface (4) PoE/PoE+, (4) 60W PoE++ Total non-blocking throughput 9 Gbps Switching capacity 18 Gbps Forwarding rate 26.78 Mpps Power method (1) Universal input, 100—240V AC, 4.4A Max., 50/60 Hz Switching Features Layer 2 features IGMP snooping, STP / RSTP, Port isolation, Storm control, Voice VLAN, Port mirroring, LACP port aggregation, Multicast / broadcast rate limiting, MAC address blocking, Flow control, 802.1X control, Jumbo frames, Proprietary loop protection, DHCP snooping / guarding, Egress rate limit, LLDP-MED, Port restricted by MAC, Device isolation with ACLs LEDs Ethernet Green: 1 Gbps, Amber: 10/100 Mbps PoE Amber: PoE/PoE+/PoE++ Power output Blue: active Application Requirements UniFi Network Version 6.2.26 and later
