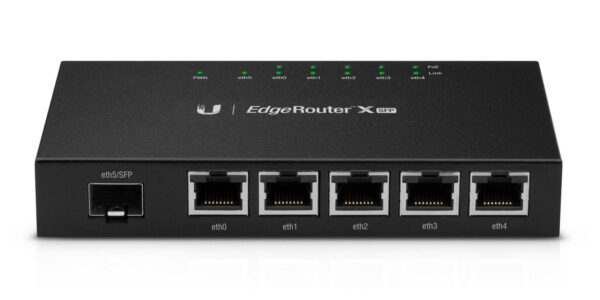

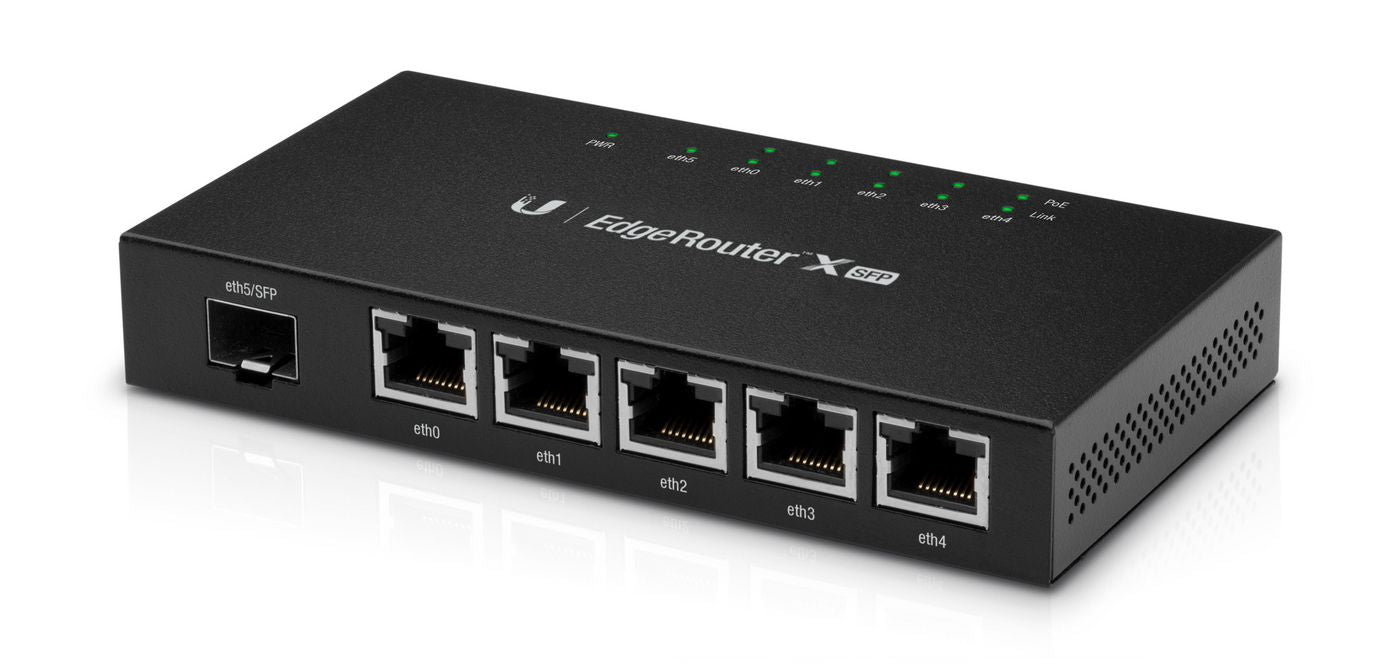

Ubiquiti EdgeRouter X SFP 5 Port Passive-PoE Gigabit Wired Router
Advanced Gigabit Router with PoE and SFP
The EdgeRouter™X SFP combines cost-effective routing performance with the convenience of passive PoE support in a compact form factor.Versatile PoE Capability
The EdgeRouter™X SFP supports 24V passive PoE to power up to five airMAX®devices.World-Leading Price/Performance
At $79 USD MSRP, the EdgeRouter™X SFP offers a breakthrough combination of value and performance in routing with passive PoE support.Gigabit Connectivity

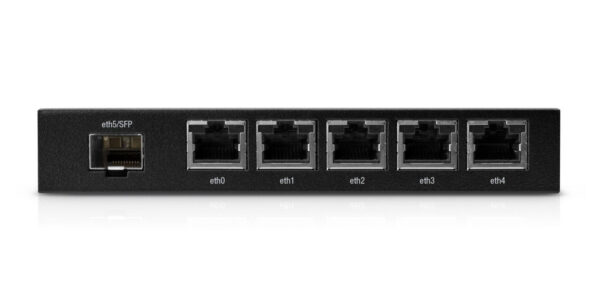

The EdgeRouter™X SFP features five independent, Gigabit RJ45 ports and one Gigabit SFP port – all six are configurable for switching.Optical SFP for Backhaul
The Gigabit SFP port provides fiber connectivity to support backhaul applications for carrier-class networks.EdgeOS™- Advanced UI
The intuitive, graphical user interface is easy to learn and makes routing features simple to configure and monitor. It includes an integrated Command-Line Interface (CLI) for convenient access to advanced functions. -
Feature Specification Mechanical Dimensions 142 x 75 x 23 mm (5.6 x 3 x 0.9″) Weight 215 g (7.6 oz) Hardware Processor Dual-Core 880 MHz, MIPS1004Kc Memory 256 MB DDR3 RAM Code storage 256 MB NAND Networking interface (5) 10/100/1000 RJ45 ports (1) 100/1000 SFP port Power method 24VDC, 2.5A power adapter (Included) Power Supply External AC/DC adapter Supported Voltage Range 9–26V DC Max. power consumption 5W PoE method Passive PoE out voltage range 22-24V DC Max. PoE wattage per port 12W (24V) Max. PoE wattage combined 50W Buttons Factory reset LEDs Power, Link/Activity (6), PoE (5) Mounting Wall mount Environmental Ambient operating temperature -10 to 45° C (14 to 113° F) Ambient operating humidity 10 to 90% noncondensing Certifications CE, FCC, IC -
Description Downloads Ubiquiti EdgeRouter X SFP 5 Port Passive-PoE Gigabit Wired Router | ER-X-SFP DataSheet Downloads Ubiquiti EdgeRouter X SFP 5 Port Passive-PoE Gigabit Wired Router | ER-X-SFP Quick Start Guide Downloads
