Ubiquiti EdgeRouter Infinity SFP/SFP+ 8 Port Router | ER-8-XG

Ubiquiti EdgeRouter Infinity SFP/SFP+ 8 Port Router | ER-8-XG

• Description
• Specifications

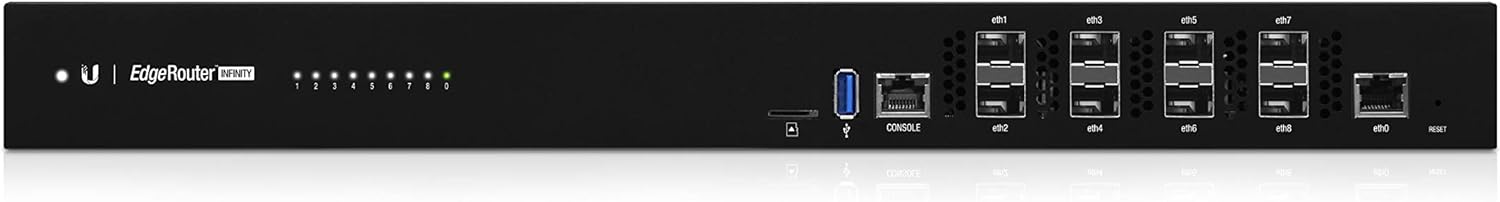

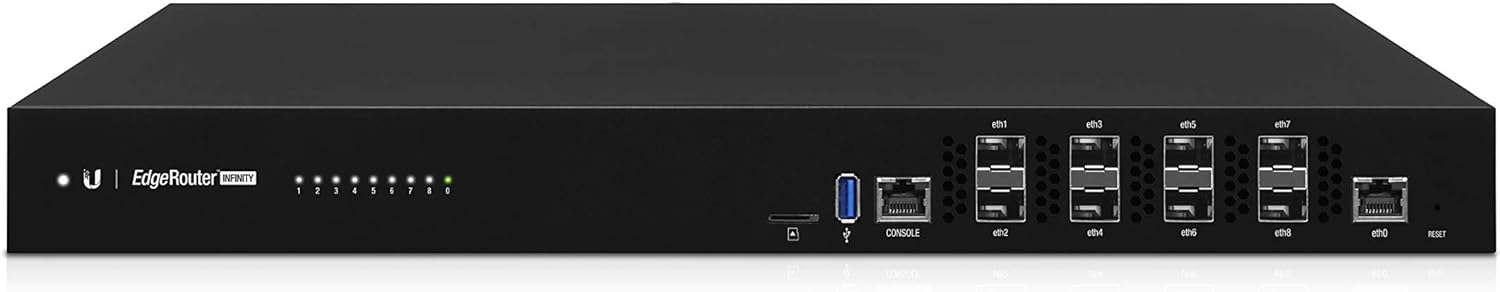

• Ubiquiti EdgeRouter Infinity SFP/SFP+ 8 Port Router


  10G Routing Technology for the Masses
  The EdgeRouter Infinity features eight 10G SFP+ ports for fiber connectivity and a Gigabit Ethernet RJ45 port for copper connectivity.

  Rackmount Design
  The 1U-high metal chassis allows for convenient mounting in a standard-sized, 19″‑wide rack.

  Power Versatility
  The EdgeRouter Infinity includes two AC/DC power modules – one for backup. An optional DC/DC power module is available for use with DC power.

  Centralized Management
  The EdgeRouter Infinity is supported and managed by UNMS™ (Ubiquiti® Network Management System), a comprehensive controller with an intuitive UI. A single control plane manages registered EdgeMAX® devices across multiple sites.

• Category	Specification
  Mechanical
  Dimensions	442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7″)
  Weight	Without mount: 4.95 kg (10.9 lb)
  	With mount: 5.05 kg (11.1 lb)
  Hardware
  Processor	MIPS64 16 Core 1.8 GHz
  System memory	16 GB DDR4 RAM
  On-board flash	8 MB NOR
  	4 GB eMMC NAND
  Networking interface	(1) RJ45 serial port
  	(8) SFP+ ports
  	(1) GbE RJ45 port
  Power method	(2) Hot-swappable AC/DC PSU
  Supported voltage	AC input: 100–240V AC
  Max. power consumption	100W
  ESD/EMP protection	Air: ± 24 kV, contact: ± 24 kV
  Button	Factory reset
  LEDs	System SFP+ data: Status
  	RJ45 ports: link/activity
  	Data port: link/activity
  Mounting	Rack
  Ambient operating temperature	-5 to 40° C (23 to 104° F)
  Ambient operating humidity	5 to 95% noncondensing
  Certifications	CE, FCC, IC
