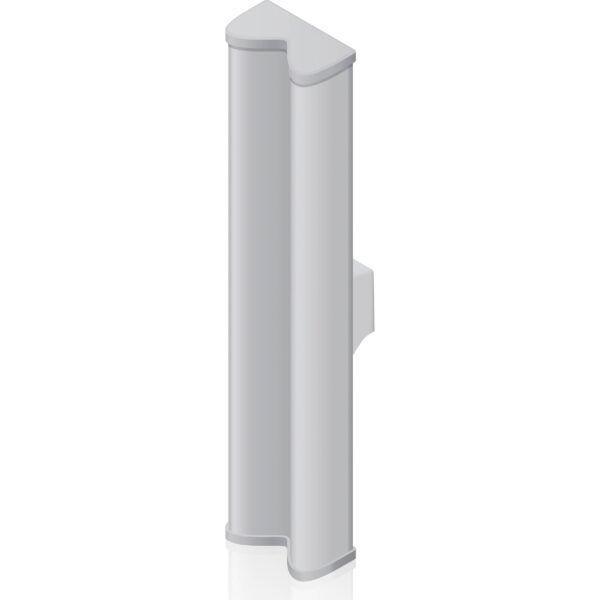

Ubiquiti airMAX Sector Antenna 16dbi 90 Degree MiMo 2GHz
2×2 MIMO BaseStation Sector Antenna
Sector Coverage
The airMAX Sector Antenna is a Carrier Class 2×2 Dual Polarity MIMO Sector Antenna that was designed to seamlessly integrate with RocketM radios (RocketM sold separately). Pair the RocketM’s radio with the airMAX Sector Antenna’s reach to create a powerful basestation. This versatile combination gives network architects unparalleled flexibility and convenience.Utilize airMAX Technology
Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.
Intelligent QoS
Priority is given to voice/video for seamless streaming.Scalability
High capacity and scalability.Long Distance
Capable of high-speed, carrier-class links -
Technical Specifications AM-2G16-90 Dimensions 700 x 145 x 79 mm (27.6 x 5.7 x 3.1″) Weight 3.9 kg (8.6 lb) Frequency Range 2.3 – 2.7 GHz Gain 16.0 – 17.0 dBi HPOL Beamwidth 91° (6 dB) VPOL Beamwidth 90° (6 dB) Electrical Beamwidth 9° Electrical Downtilt 4° Max. VSWR 1.5:1 Wind Survivability 200 km/h (125 mph) Wind Loading 85 N @ 160 km/h (19 lbf @ 100 mph) Polarization Dual-Linear Cross-pol Isolation 28 dB Min. ETSI Specification EN 302 326 DN2 Mounting Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
