• Ubiquiti airMAX Rocket Prism AC Gen2 Access Point

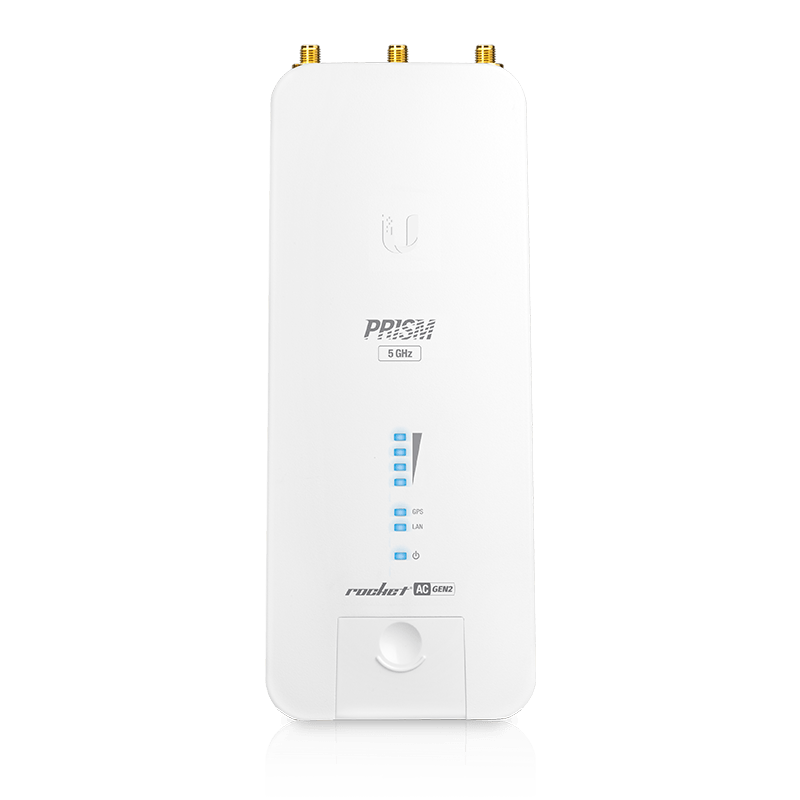

  Ubiquiti airMAX Rocket Prism ac Radio BaseStation Gen 2 (RP-5AC-GEN2)
  The Ubiquiti airMAX Rocket Prism 5AC Gen 2 is a 5 GHz base station with active AF filtering technology. This radio features both airMAX ac and airPrism technologies for maximum wireless performance in high‑density areas. Pair the Rocket Prism 5AC Gen 2 with airMAX ac antennas for optimal performance.

  Ubiquiti Rocket Prism 5AC Gen 2 Key Features
  5 GHz Wide Band Operating Frequency
  Custom Ubiquiti airMAX ac Processor
  Dedicated WiFi Radio for Management
  Throughput 500+ Mbps (Max. 80 MHz)
  Ports (1) 10/100/1000 Ethernet Port
  airPrism Technology

  Full-Band 5 GHz Coverage
  You can deploy the Rocket Prism 5AC Gen 2 anywhere in the world; the Rocket Prism 5AC delivers complete coverage of the 5 GHz spectrum with a single radio.

  Management Wi-Fi Radio
  The Rocket Prism 5AC Gen 2 integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

  Improved Surge Protection
  The Rocket Prism 5AC Gen 2 features enhanced protection against ESD events.

  GPS Synchronisation
  The Rocket Prism 5AC Gen 2 supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughput than competing solutions.

  Revolutionary Filtering Technology
  Ubiquiti’s airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.



• Feature	Value
  Dimensions	88 x 40 x 230 mm (3.5 x 1.6 x 9.1″)
  Weight	400 g (14.1 oz)
  Enclosure Material	Die-cast aluminum
  Mounting	Pole mounting (Kit included)
  Wind Loading	342.5 N at 200 km/h (77 lbf at 125 mph)
  Networking Interface	(1) GbE RJ45 port
  RF Connectors	(2) RP-SMA (Waterproof), (1) GPS (Waterproof)
  Power Method	Passive PoE 2-pair (4, 5+; 7, 8 return)
  Power Supply	24V, 1A gigabit PoE adapter (Included)
  Supported Voltage Range	18—27V DC
  Max. Power Consumption	9.5W
  LEDs	(4) Signal strength (software-adjustable), GPS, LAN, power
  Shock and Vibration	ETSI300-019-1.4
  Operating Temperature	-40 to 80° C (-40 to 176° F)
  Operating Humidity	5 to 95% non-condensing
  Certifications	CE, FCC, IC, RoHS
  Modes	Access Point, Station
  Channel Sizes (PtP Mode)	10/20/30/40/50/60/80 MHz
  Channel Sizes (PtMP Mode)	10/20/30/40 MHz
  Services	Web server, SNMP, SSH server, Telnet, ping watchdog, DHCP, NAT, bridging, routing
  Utilities	airMagic, airView, antenna alignment tool, discovery utility, site survey, ping, traceroute, speed test
  Distance Adjustment	Dynamic Ack and Ackless mode
  Power Adjustment	Software adjustable (UI or CLI)
  Security	WPA2 AES only
  QoS	Supports packet level classification (WMM), user-customizable levels (High/Medium/Low)
  Statistical Reporting	Uptime, packet errors, data rates, wireless distance, Ethernet link rate
  Ubiquiti Specific Features	30/50/60 MHz Channels, airMAX ac mode, traffic shaping with burst support, discovery protocol, frequency band offset, Ackless mode
  Operating Frequency (MHz)	Worldwide: 5150–5875 MHz
  Operating Frequency (MHz)	USA: U-NII-1: 5150–5250 MHz, U-NII-2A: 5250–5350 MHz, U-NII-2C: 5470–5725 MHz, U-NII-3: 5725–5850 MHz
  Management Radio (MHz)	Worldwide: 2412–2472 MHz, USA: 2412–2462 MHz
