Ubiquiti AirFiber 1000 Mbit/s White Power Over Ethernet | AF-5XHD Online

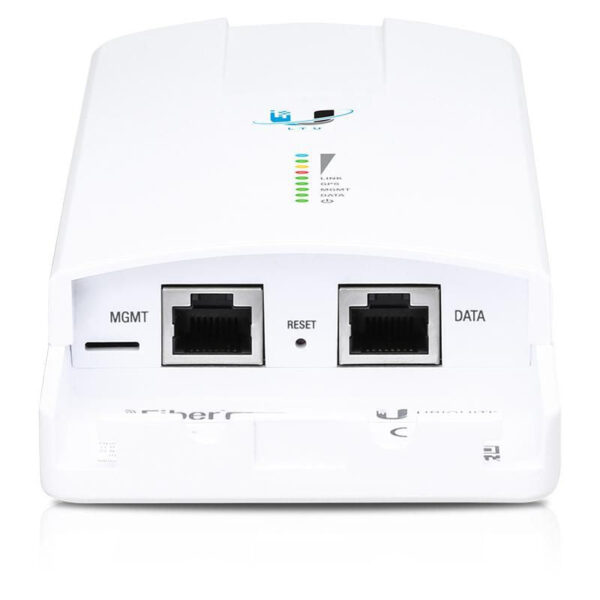

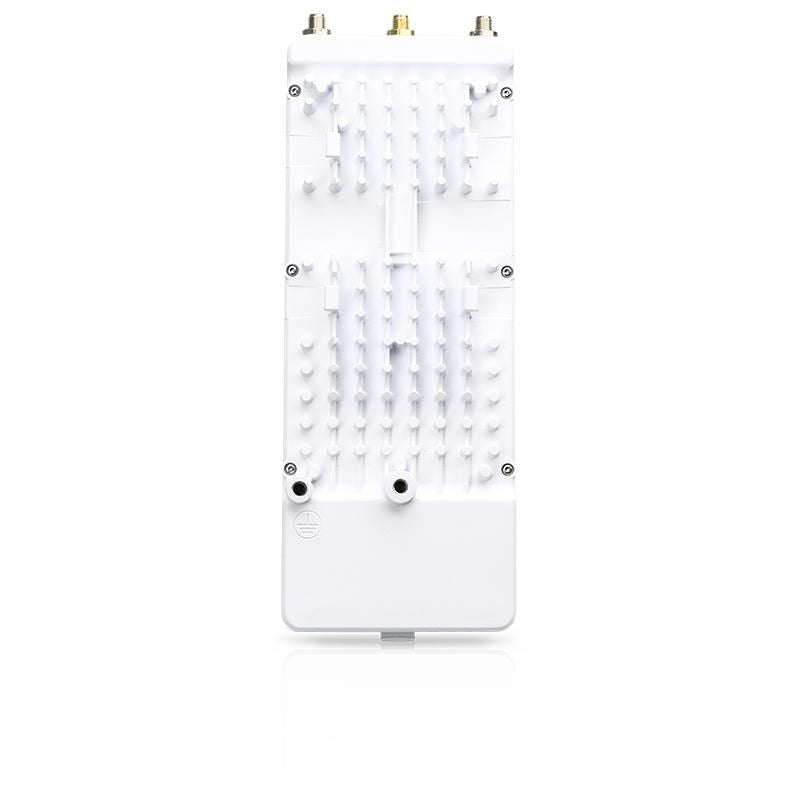

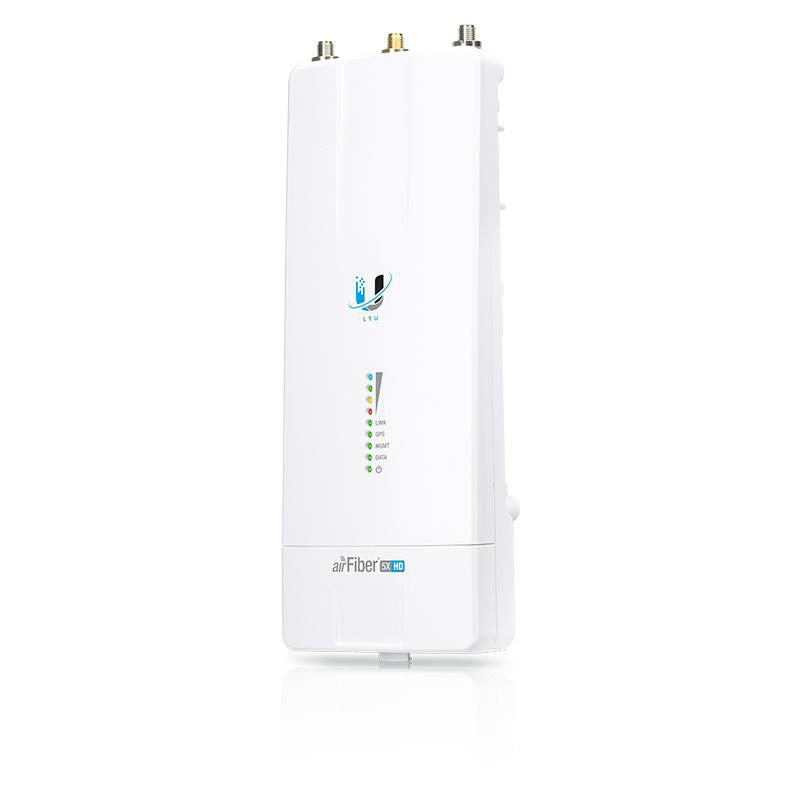

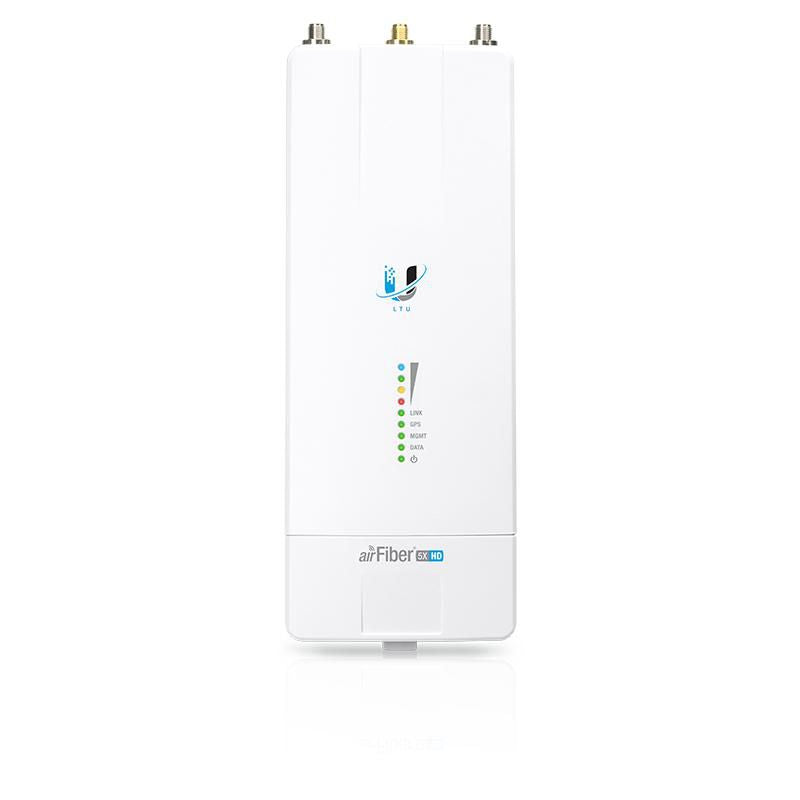

Ubiquiti AirFiber 1000 Mbit/s White Power Over Ethernet | AF-5XHD

• Description
• Specifications

• Ubiquiti AirFiber 1000 Mbit/s White Power Over Ethernet


  The New Standard for WISP Backhaul Performance
  True 1Gbps+ Spectrally Efficient, Noise Resilient PTP Technology Specifically Designed for WISP’s

  Complete Custom Hardware for the WISP, right down to the Silicon
  Our core communications processing engine surpasses all of the limitations inherent to generic Wi‐Fi chips.

  Game-Changing LTU Technology
  Spectral Efficiency Comparison of 802.11n, 802.11ac, airFiber Original, and LTU by year.

  IP-67 Durability
  airFiber 5XHD is Water Resistant and Perfect for any Weather Conditions.

• Technical Specifications
  Mechanical
  Dimensions	224 x 82 x 48 mm
  Weight	0.4 kg
  Mounting	airFiber X mount
  	GPS Pole Mount (Included)
  Weatherproofing	IP67*
  Hardware
  Networking interface	(2) GbE RJ45 ports
  Power method	Passive PoE 4-pairs
  	Passive PoE 2-pairs
  Power supply	24V, 1A gigabit PoE adapter
  Supported voltage range	18—54V DC
  Max. power consumption	12W
  GPS antenna	External, magnetic base
  Ambient operating temperature	-40 to 55° C
  Certifications	CE, FCC, IC
  Software
  Modes	PtP Master/Slave
  Max. throughput	1+ Gbps
  Max. range	100+ km
  Encryption	AES-256
  RF
  Max. TX power	29 dBm*
  Frequency accuracy	± 2.5 ppm without GPS Sync
  	± 0.2 ppm with GPS Sync
  Channel bandwidth	10/20/30/40/50/60/80/100 MHz
  Operating Frequency (MHz)	Worldwide: 4800 – 6200 MHz*
  	US/CA:
  	U-NII-1: 5150 – 5250 MHz
  	U-NII-2A: 5250 – 5350 MHz
  	U-NII-2C: 5470 – 5725 MHz
  	U-NII-3: 5725 – 5850 MHz
