Ubiquiti airCube ISP airMAX Home Wi-Fi Access Point | ACB-ISP
- Description
- Specifications
- Downloads
-
Ubiquiti airCube ISP airMAX Home Wi-Fi Access Point
UNMS Support
Ubiquiti Network Management Software simplifies remote network management.Super Antenna
Innovative Super Antenna provides wide-area coverage beyond regular Wi-Fi access points.24V PoE Passthrough

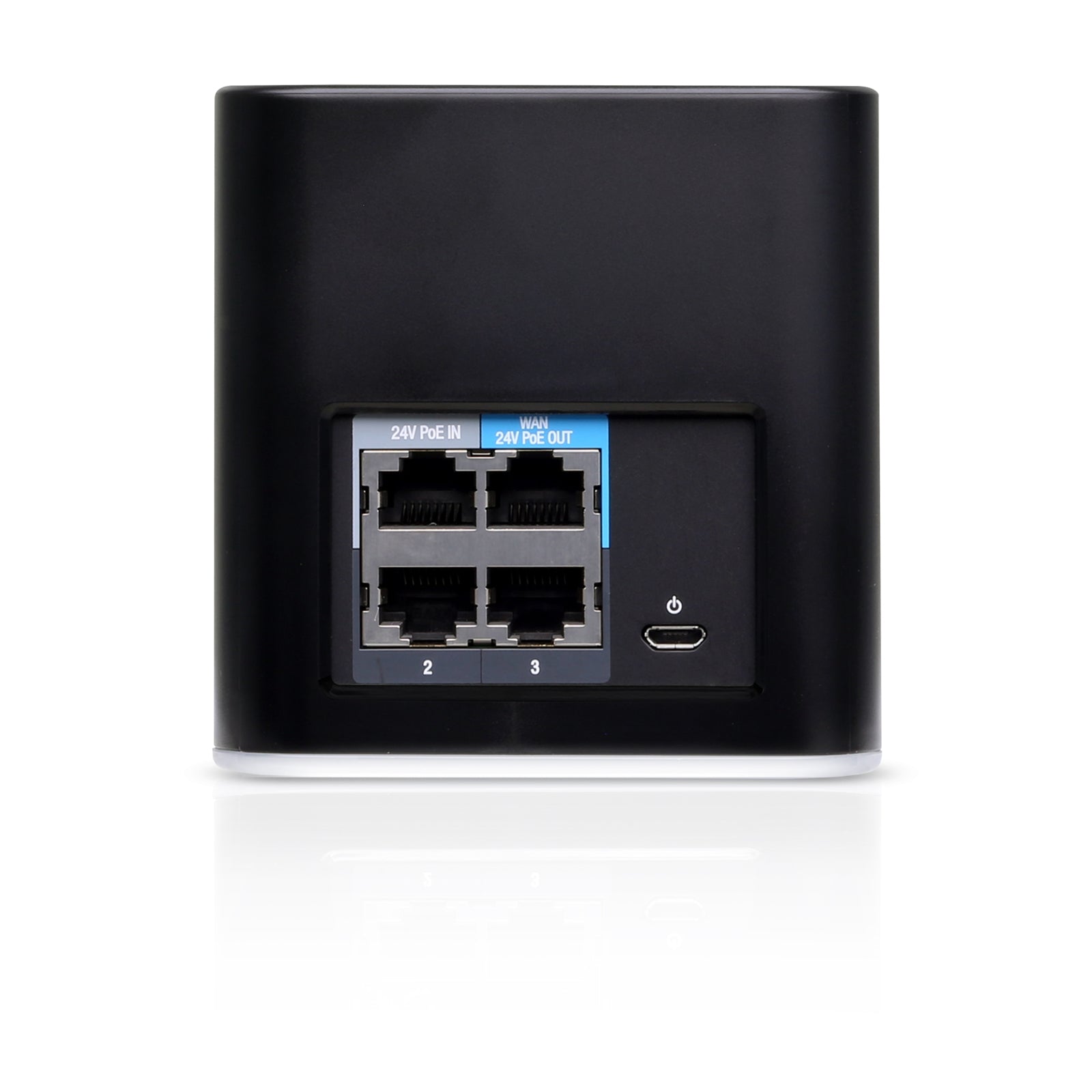

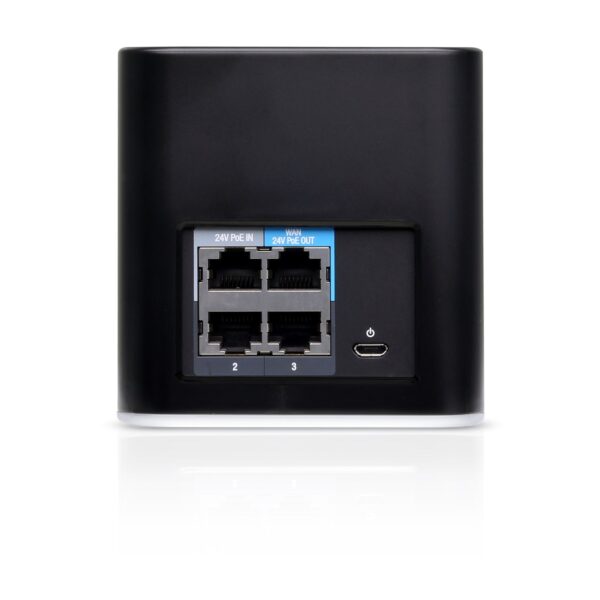

The airCube can be powered by and provide power to an airMAX CPE using 24V PoE.UMobile Support
Use the intuitive UMobile app for iOS and Android to install and configure airCube.Sleek Design

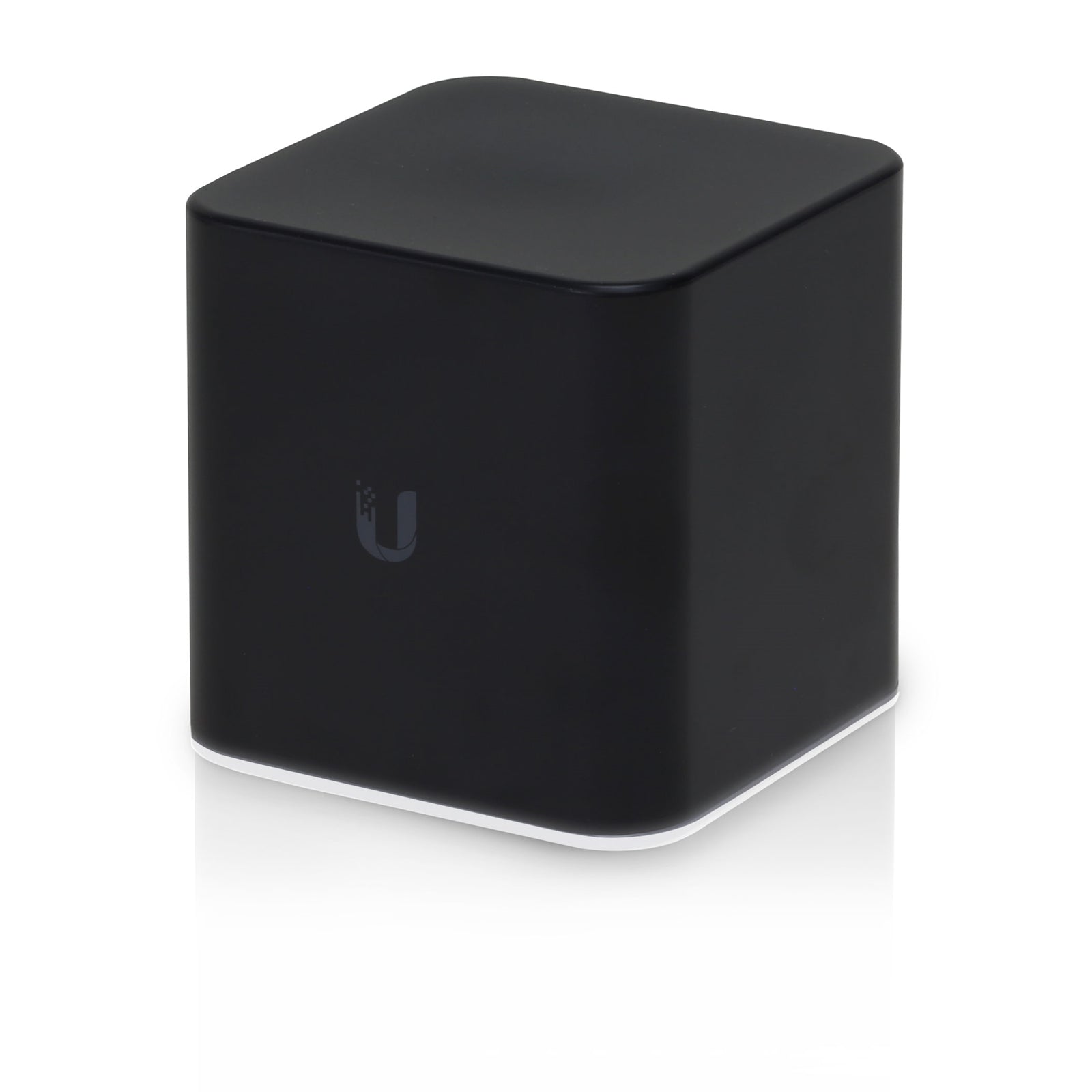

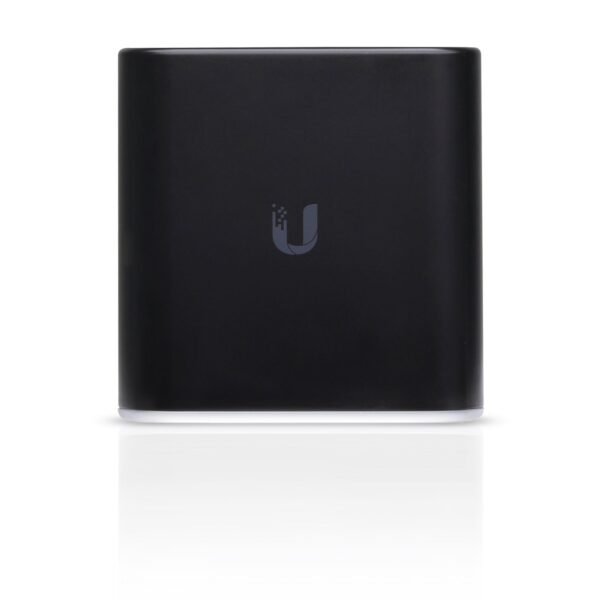

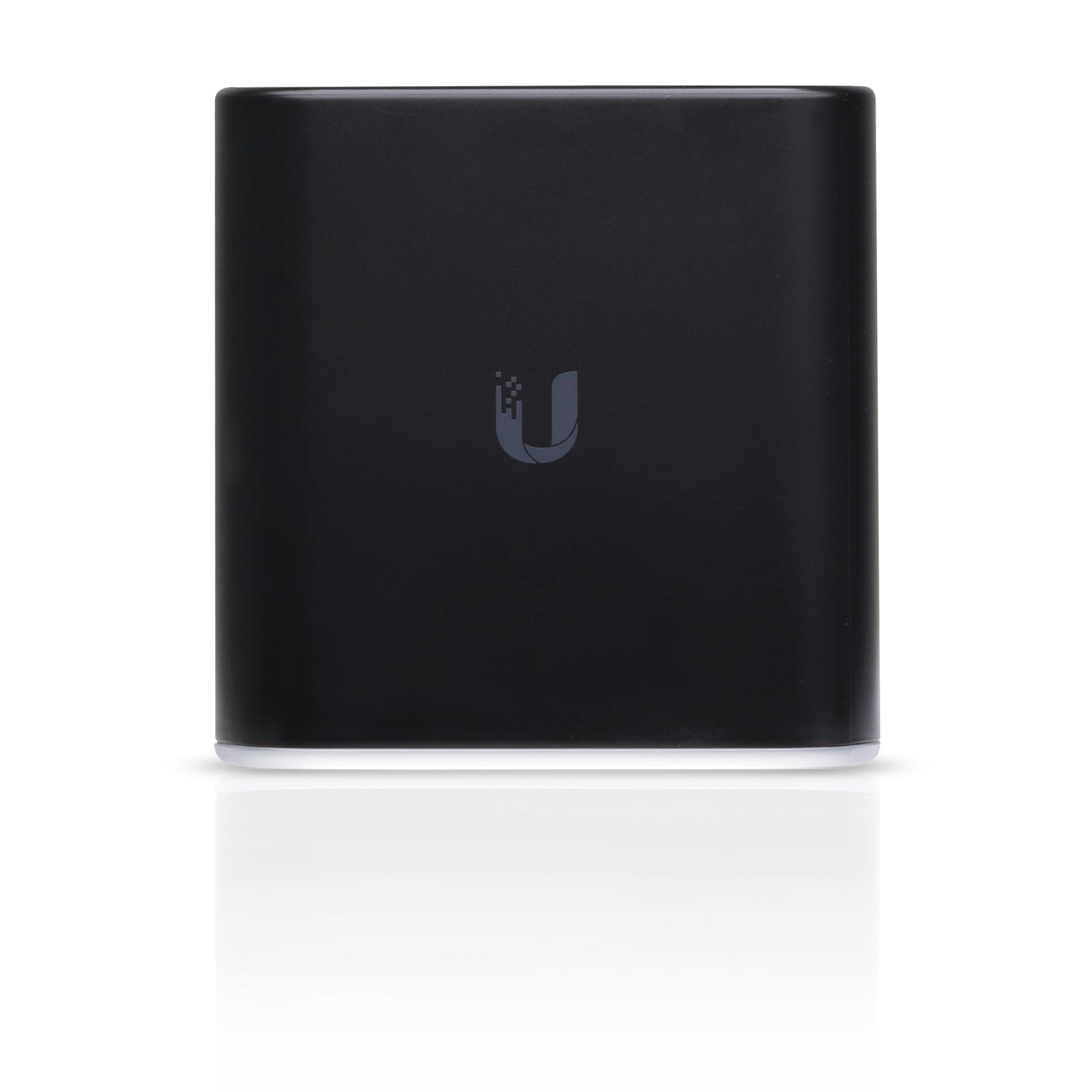

The airCube’s attractive design means it can be positioned anywhere in the room, improving Wi-Fi performance. -
Technical Specifications Mechanical Dimensions 87.8 x 89.5 x 89.25 mm (3.5 x 3.5 x 3.5″) Weight 280 g (9.9 oz) Hardware Networking interface 10/100 Fast Ethernet ports Management interface Ethernet WiFi Power method Micro-USB adapter (Not included) PoE 24V In on LAN port 1 Power supply 5V Max. power consumption 5W Supported power voltage 4.95–5.05V PoE Out Controllable 24V PoE Out (4, 5+, 7, 😎 on WAN port Operating Specifications Operating frequency 2.4 GHz Antenna gain 4 dBi Max. speeds 300 Mbps Max. TX power 20 dBm ESD/EMP protection ± 24 kV RJ45 interface LED Status Ambient Conditions Ambient operating temperature -10 to 50° C (14 to 122° F) Ambient operating humidity 5 to 95% noncondensing Certifications CE, FCC, IC -
Description Downloads Ubiquiti airCube ISP airMAX Home Wi-Fi Access Point ACB-ISP DataSheet Downloads
