Ubiquiti Air Max 19dBi 5GHz Sector Antenna | AM-5G19-120
- Description
- Specifications
-

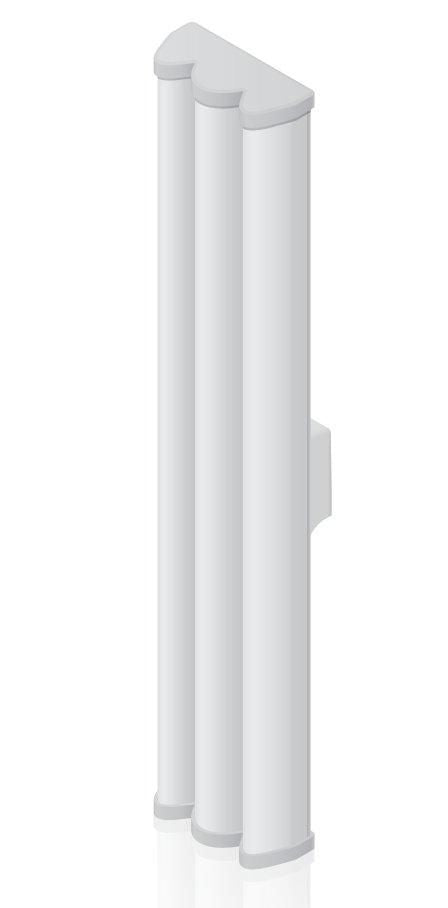

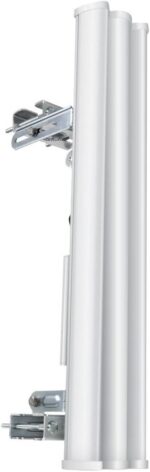

Ubiquiti Air Max 19dBi 5GHz Sector Antenna
Sector Coverage
The airMAX Sector Antenna is a Carrier Class 2×2 Dual Polarity MIMO Sector Antenna that was designed to seamlessly integrate with RocketM radios (RocketM sold separately). Pair the RocketM’s radio with the airMAX Sector Antenna’s reach to create a powerful basestation. This versatile combination gives network architects unparalleled flexibility and convenience.Utilize airMAX Technology
Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency. It provides many magnitudes of performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.
Intelligent QoS
Priority is given to voice/video for seamless streaming.Scalability
High capacity and scalability.Long Distance
Capable of high-speed, carrier-class links -
Features Specifications Antenna type Sector antenna Certification EN 302 326 DN2 Mounting Wall Polarization Dual polarization Product colour White Purpose Outdoor Voltage Standing Wave Ratio (VSWR) 1.5:1 Legal Information EU ECCN Code N/A UNSPSC Code 43221729 US ECCN Code EAR99 Logistics data Harmonized System (HS) code 85177100 Package dimensions (verified) Depth Verified 89 cm Gross Weight Verified 4.5 kg Height Verified 16 cm Width Verified 20 cm Packaging content Quantity 1 Quantity per pack 1 pc(s) Performance Antenna gain level (max) 19.1 dBi Frequency band 5.15 – 5.85 GHz Horizontal beam width 123 ° Horizontal beam width (5 GHz) 4 ° Vertical beam width 123 ° Vertical beam width (5 GHz) 2 ° Product dimensions Net Weight (Product, kg) 4.4 kg Product Depth 13.5 cm Product Height 7.3 cm Product Width 70 cm Technical details Harmonized System (HS) code 85177100 Vendor information Brand Name Ubiquiti Warranty 2 Year(s) Categories Main category Network Subcategory Wireless Network Subcategory Passive Antennas
