Ubiquiti AI Theta UniFi Protect 4K UHD PoE Mini IP Camera

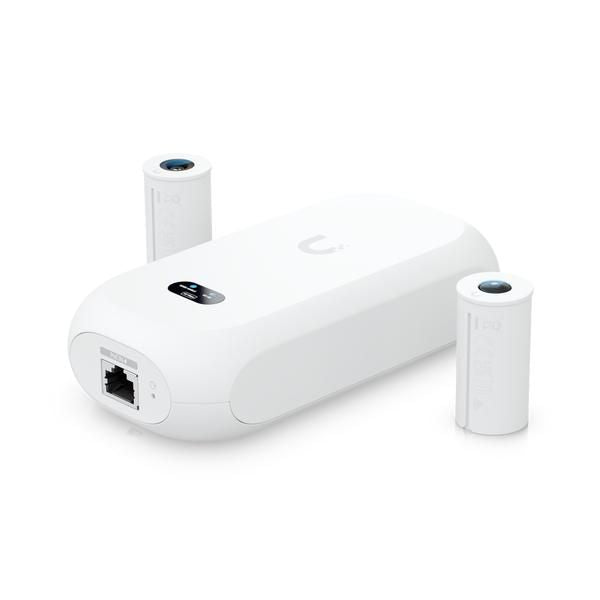

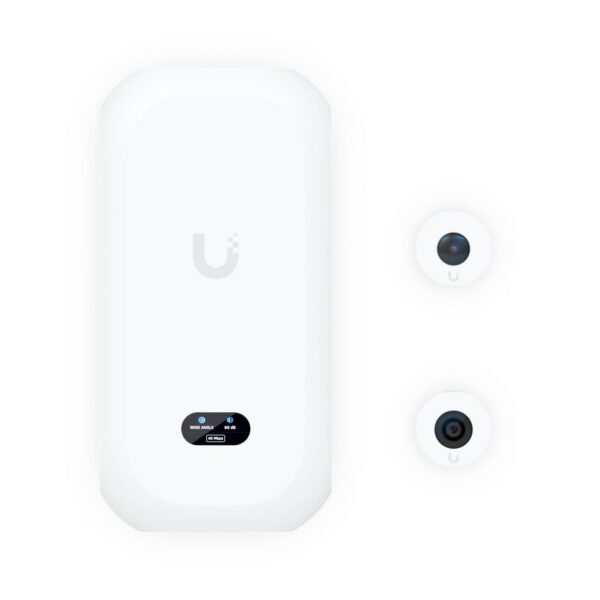

Ubiquiti UniFi Camera AI Theta (UVC-AI-Theta)
The Ubiquiti UniFi Protect Camera AI Theta is a security camera system designed specifically for interior design professionals. It comes with an 8 MP wide-angle lens for wall-mounted applications and a 12 MP fisheye 360° lens for ceiling-mounted applications. Additionally, it includes two-way audio, an advanced AI processing engine for long-range smart detections, and a color LCM display for monitoring device status.UVC-AI-Theta Key Features
Designed specifically for interior design professionals
Includes an 8 MP wide-angle lens for wall-mounted applications
Comes with a 12 MP fisheye 360° lens for ceiling-mounted applications
Features two-way audio and advanced AI processing engine for long-range smart detections
Equipped with a color LCM display for monitoring device status.Overall, this camera system offers high-quality features that cater to the needs of interior design professionals who prioritise security and aesthetics. It allows for versatile mounting options and comes equipped with advanced technology to enhance security and monitoring capabilities.
-
Technical Specifications Mechanical Dimensions UVC-AI-Theta-Hub 140 x 70 x 38 mm (5.5 x 2.8 x 1.5”) UVC-AI-Theta-Lens/360 Ø22.8 x 43.5 mm (Ø0.9 x 1.7”) Weight UVC-AI-Theta-Hub 330 g (11.6 oz) UVC-AI-Theta-Hub Mount 35 g (1.2 oz) UVC-AI-Theta-Lens/360 15 g (0.5 oz) UVC-AI-Theta-Lens/360 Flush Mount 12 g (0.4 oz) Enclosure Material UVC-AI-Theta-Hub Aluminum alloy UVC-AI-Theta-Lens/360 Aluminum alloy, polycarbonate UVC-AI-Theta-Lens/360 Flush Mount Polycarbonate Mount Material UVC-AI-Theta-Hub Aluminum alloy UVC-AI-Theta-Lens/360 Aluminum alloy, polycarbonate UVC-AI-Theta-Lens/360 Flush Mount Polycarbonate Cable Jacket Enclosure Dimensions 28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3”) Cable Jacket Enclosure Material PVC Cable Length 1 m (3.3 ft) Cable Diameter 3.7 mm (0.15”) Cable Jacket Material Woven fabric Cable Weight 18 g (0.63 oz) Cable Connector Type Theta proprietary Optics Sensor UVC-AI-Theta-Lens 8MP CMOS UVC-AI-Theta-Lens-360 12MP CMOS Lens Fixed focal length View Angle UVC-AI-Theta-Lens H: 97.5°, V: 79.4°, D: 118.2° UVC-AI-Theta-Lens-360 H: 180°, V: 180°, D: 180° Video Resolution UVC-AI-Theta-Lens 8MP 3264 x 2448 (4:3) UVC-AI-Theta-Lens-360 6MP 2560 x 2560 (1:1) Max. Frame Rate UVC-AI-Theta-Lens 24 FPS UVC-AI-Theta-Lens-360 20 FPS Image Settings Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay System Processor Quad-core Arm® Cortex®-A53 based chip Networking Interface GbE RJ45 port Max. Power Consumption 12.5W Power Method PoE Power Supply 5V DC, 0.5A Supported Voltage Range 37—57V DC Output Power 5V DC, 1A per port LED R/G/B/W Button Factory reset Mounting Wall, ceiling mount Ambient Operating Temperature -20 to 40° C (-4 to 104° F) Ambient Operating Humidity 10 to 90% noncondensing Certifications FCC, IC, CE Audio Microphone Supports optional AI Theta Audio module for two-way audio (Sold separately) Speaker Supports optional AI Theta Audio module for two-way audio (Sold separately) Software Web Application UniFi Protect: Version 2.7.18 and later Mobile App UniFi Protect iOS™ and Android™: Version 1.11.0 and later -
