TRENDnet Internal Ethernet 2500 Mbit/s Network Card | TEG-25GECTX

• Description
• Specifications

• TRENDnet Internal Ethernet 2500 Mbit/s Network Card


  2.5GBASE-T PCIe Network Adapter

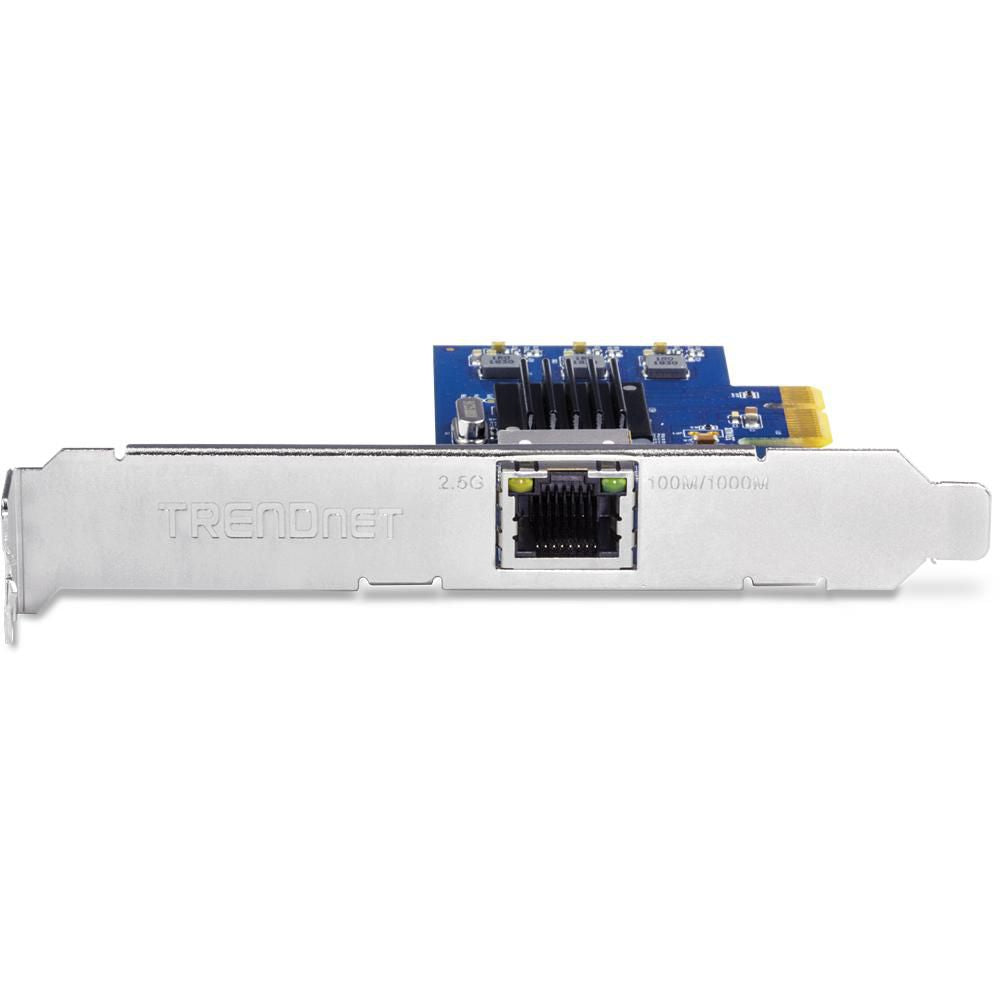

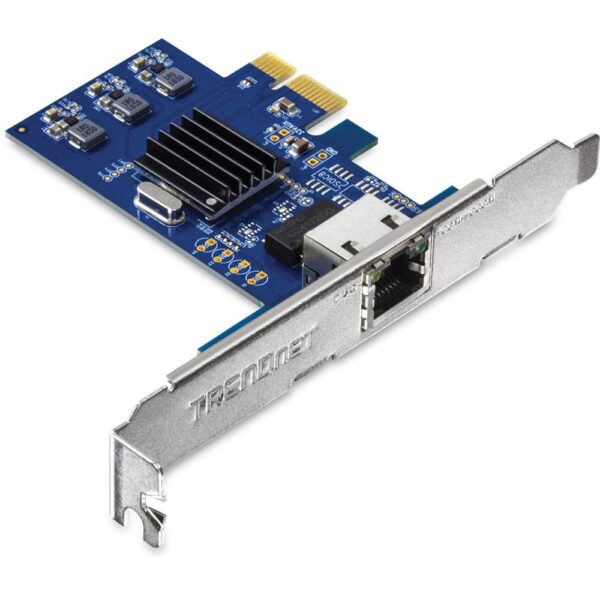

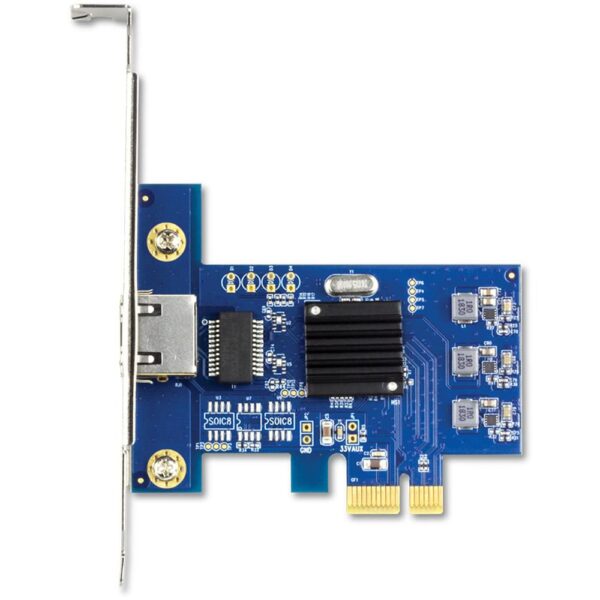

  TRENDnet’s 2.5GBASE-T PCIe Network Adapter, model TEG-25GECTX, converts a free PCI Express slot into a 2.5GBASE-T Ethernet port. The 2.5G network adapter includes advanced features such as jumbo frame and VLAN tagging support. Compatible with Windows and Linux desktop computer designs, the 2.5G network adapter includes both standard and low-profile brackets.

  2.5G Port
  2.5G network adapter supports three speeds: 2.5Gbps, 1Gbps, and 100Mbps.

  Jumbo Frame
  Sends larger packets, or jumbo frames (up to 9KB), for increased performance.

  Operating Systems
  Compatible with Windows, Windows Server, and Linux operating systems.

  2.5G Port
  2.5G network adapter supports three speeds: 2.5Gbps, 1Gbps, and 100Mbps.

  PCI Express
  Converts a PCIe 2.0 x1 slot into a 2.5G Ethernet Port

  2.5GBASE-T Support
  2.5GBASE-T specification (802.3bz) supports 2.5G speeds over standard Cat5e cables at distances up to 100m (328 ft.)

  Jumbo Frame
  Sends larger packets, or jumbo frames (up to 9KB), for increased performance

  VLAN Support
  2.5G network adapter with IEEE 802.1Q tagged-based VLAN support

  Brackets

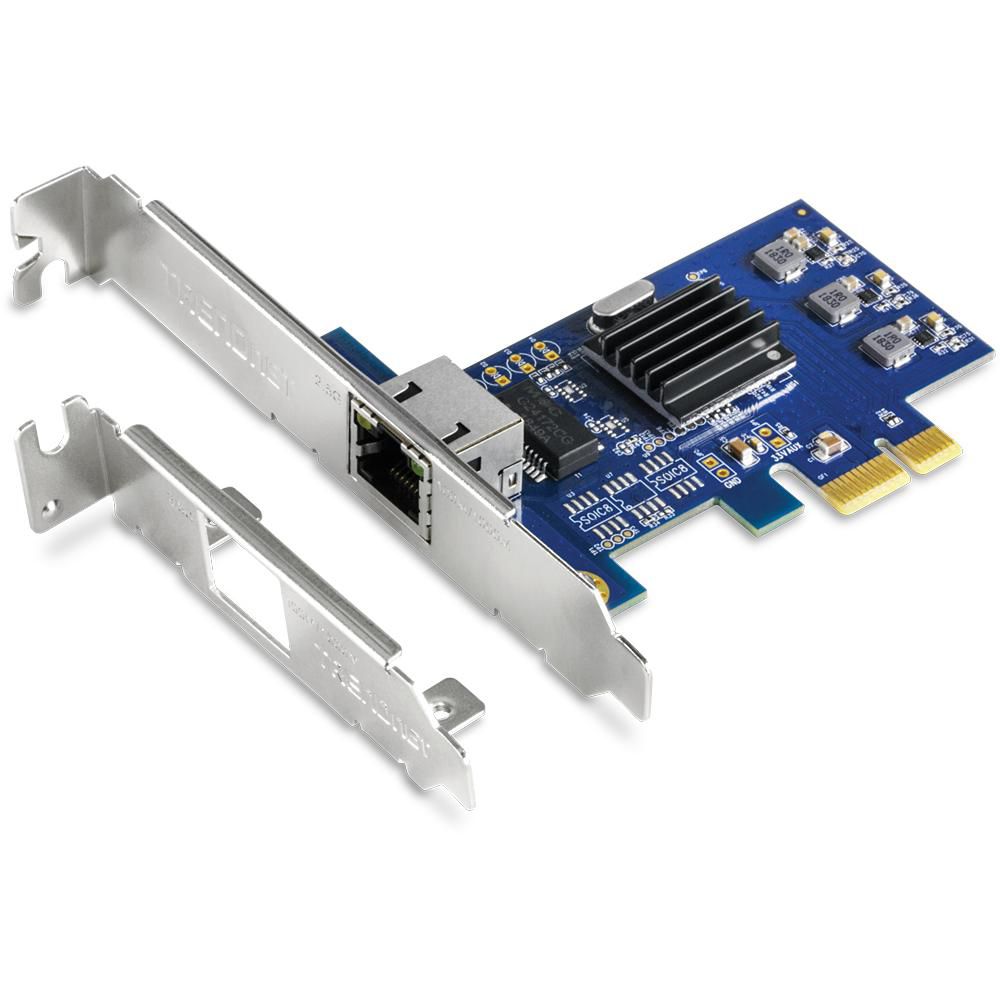

  Supports most installations with included standard and low-profile brackets

  Operating Systems
  Compatible with Windows, Windows Server, and Linux operating systems

  LED Indicators
  LED indicators convey port status, link speed and activity

• Category	Details
  Design	Internal: Yes, Color: Blue/Silver
  Certification	CE, FCC
  LED Indicators	Yes
  Legal Information	EU ECCN Code: N/A, US ECCN Code: 5A991, UNSPSC Code: 43201404
  Logistics Data	HS Code: 85176990
  Network	Ethernet LAN: Yes, Max Data Rate: 2500 Mbit/s, Standards: IEEE 802.1Q/802.3ab/802.3az/802.3bz/802.3u
  Operational Conditions	Max Temperature: 40°C, Humidity: 0 – 90%
  Other Features	Quick Start Guide: Yes
  Package Dimensions	Depth: 18 cm, Height: 3 cm, Width: 14 cm, Gross Weight: 9.36 kg
  Ports & Interfaces	Connectivity: Wired, RJ-45 Ports: 1, Host Interface: PCI Express, Interface: Ethernet
  Power	Consumption: 1.8W
  Product Dimensions	Depth: 6.4 cm, Height: 1.8 cm, Width: 8.4 cm, Net Weight: 9.26 kg
  System Requirements	Linux Supported: Yes, Windows Server: 2012/2016, Windows OS: 10/7/8.1
  Vendor Information	Brand: TRENDnet, Warranty: 3 Years
