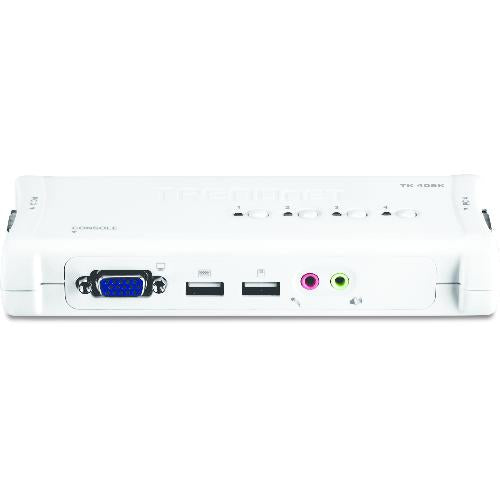

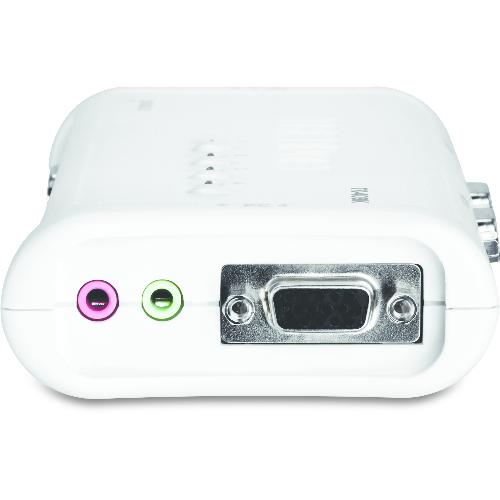

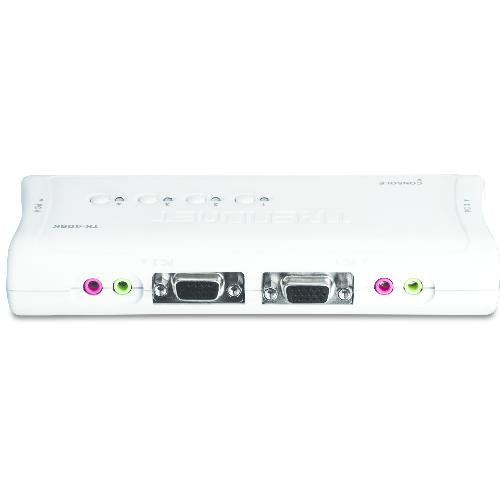

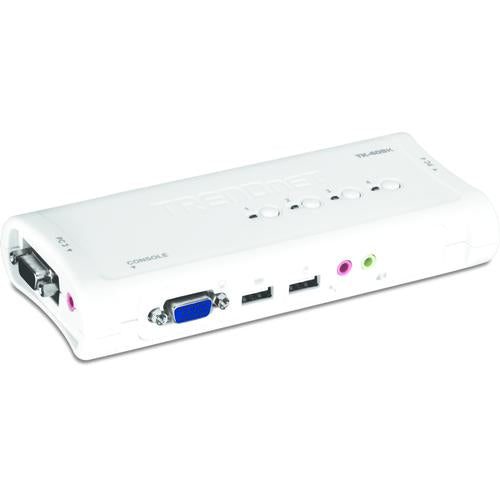

Trendnet 4-Port USB KVM Switch Kit with Audio | TK-409K

• Specifications
• Downloads

• Trendnet 4-Port USB KVM Switch Kit with Audio | TK-409K

  Attribute	Details
  Hardware Management	4 Computers
  USB Interface	USB 1.1 Specifications Compliant
  KVM Cable	4 Sets of 1.8M (6ft) KVM Cables
  	4 Sets of Audio/MIC Cables
  Cable Interface (All Male)	KVM
  	To KVM: 1 x VGA/SVGA HDB 15-pin
  	To PC: 1 x USB (Type A), 1 x VGA/SVGA HDB 15-pin
  	Audio
  	To KVM: 1 x 3.5mm audio in/out jack
  	1 x 3.5mm microphone in/out jack
  	To PC: 1 x 3.5mm audio in/out jack
  	1 x 3.5mm microphone in/out jack
  Console Connectors	1 x USB Keyboard (Type A)
  	1 x USB Mouse (Type A)
  	1 x VGA/SVGA HDB 15-pin
  	1 x 3.5mm audio in/out jack
  	1 x 3.5mm microphone in/out jack
  Port Selection	Push Button, Hot-Key Commands or Windows-Based Client Switching Software
  Auto-Scan Interval	10~60 seconds
  Power Type	USB Interface Power
  Dimensions	167 x 80 x 28mm (6.6 x 3.2 x 1.1 in.)
  Weight	185 g (6.5 oz.)
  Temperature	Operating: 0°C ~ 40°C (32°F ~ 104°F)
  	Storage: -20°C ~ 60°C (-4°F ~ 140°F)
  Humidity	0% ~ 90%, Non-Condensing
  Certification	CE, FCC
  Package Contents	TK-409K
  	Multi-Language User’s Guide
  	Utility CD-ROM
  	4 sets of USB KVM Cables
  	4 sets of KVM & Audio Cables
