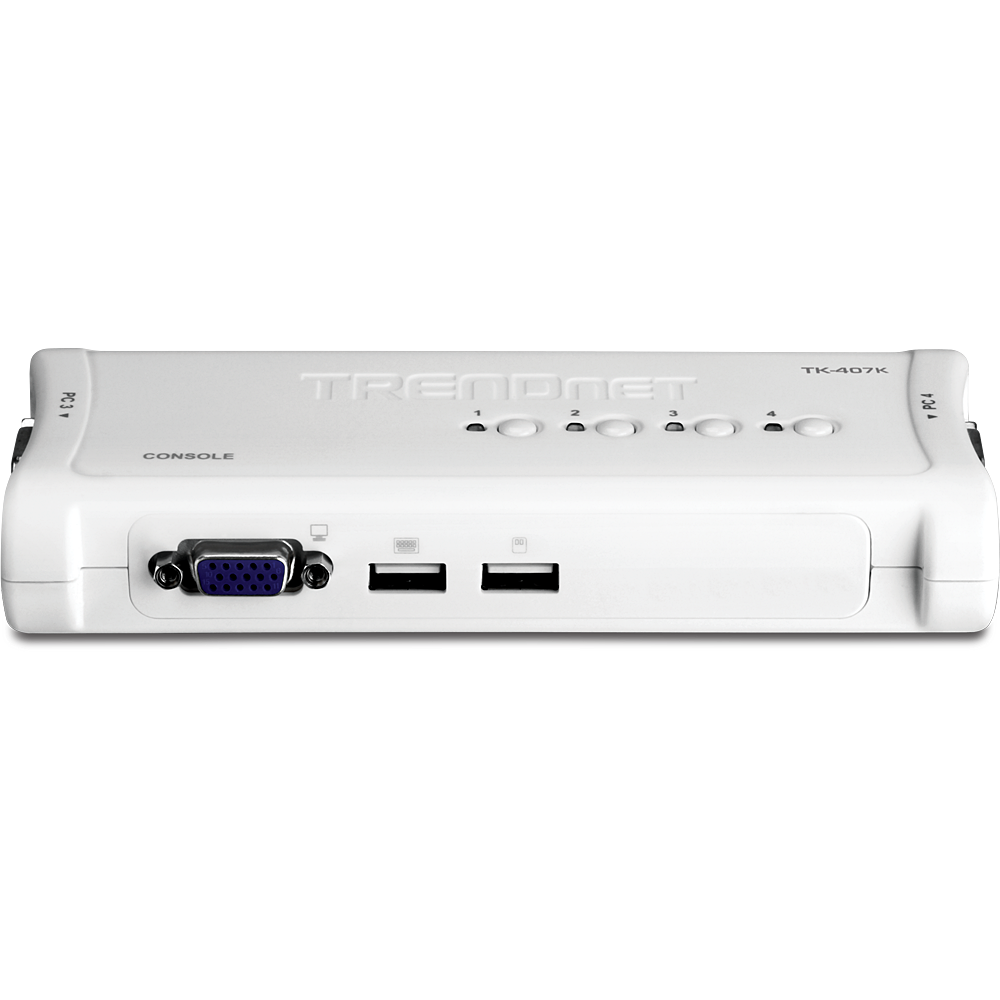

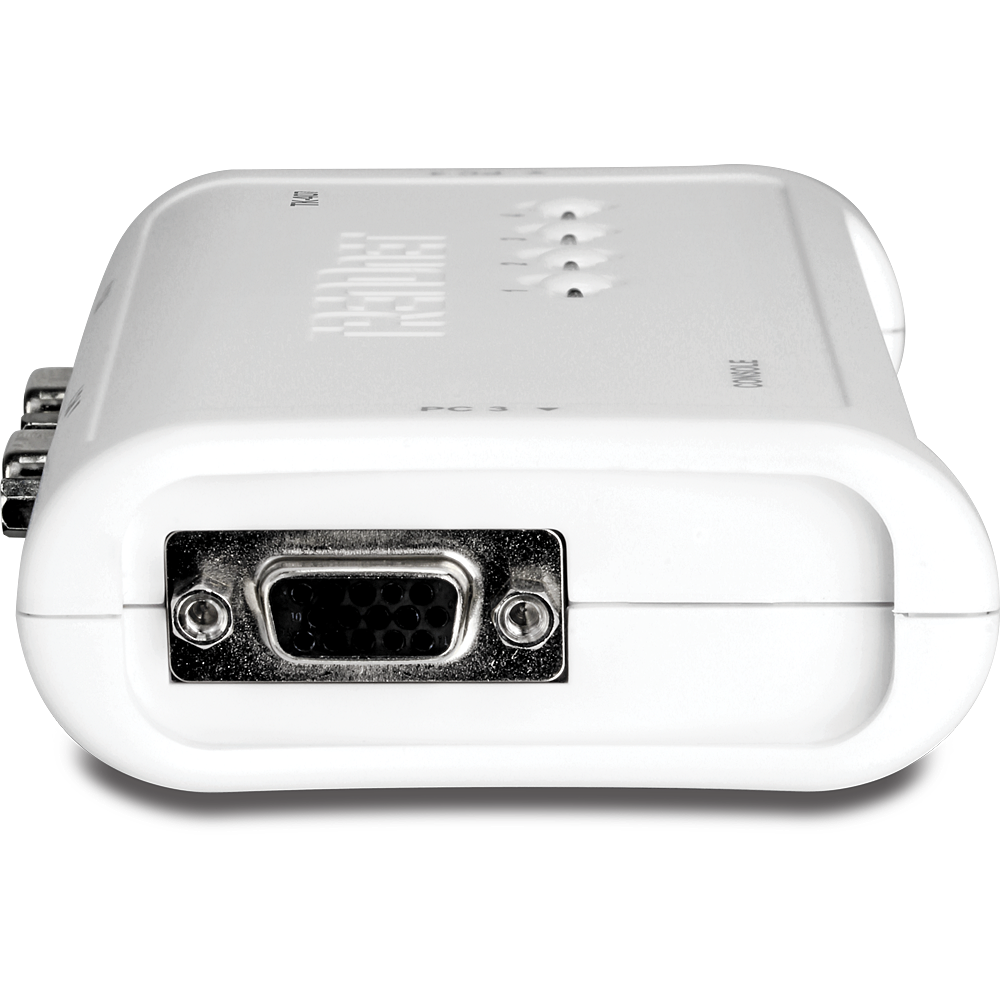

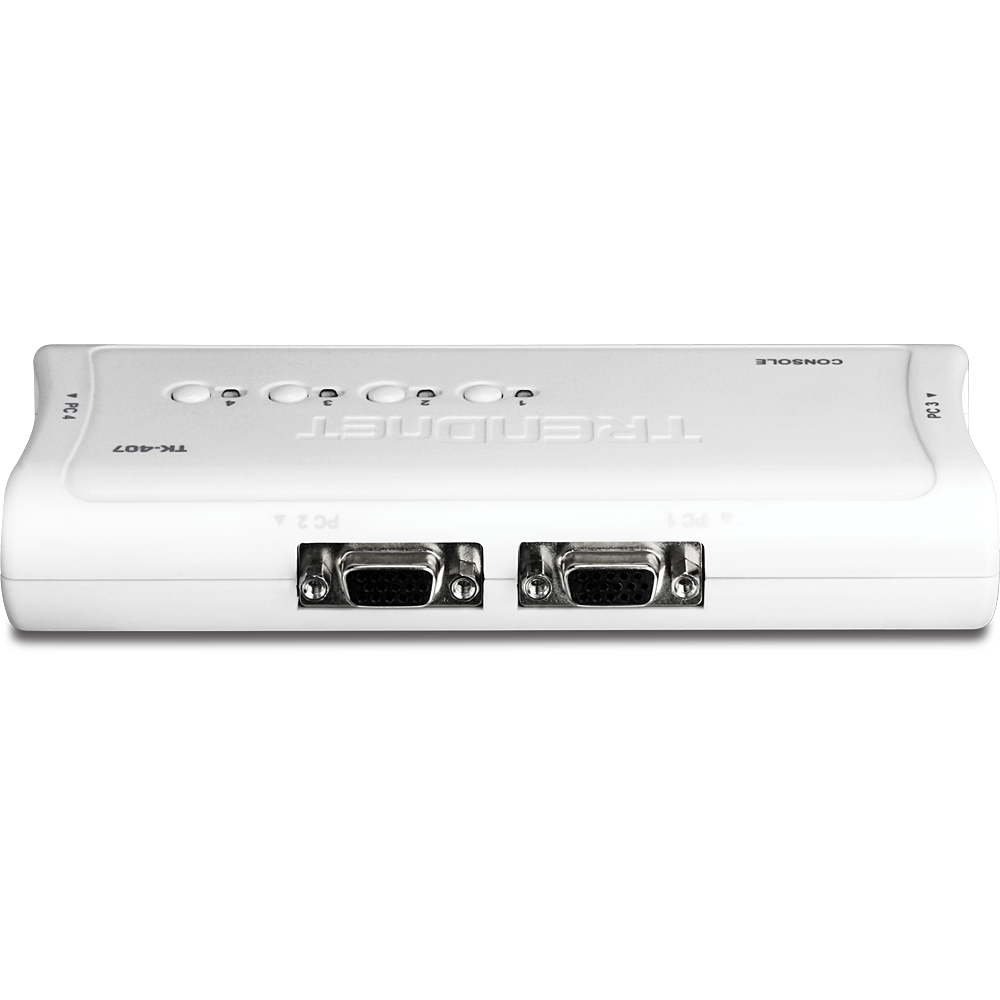

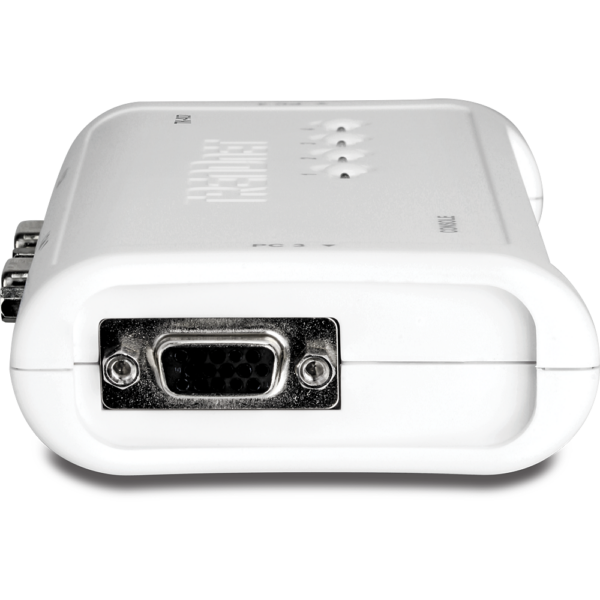

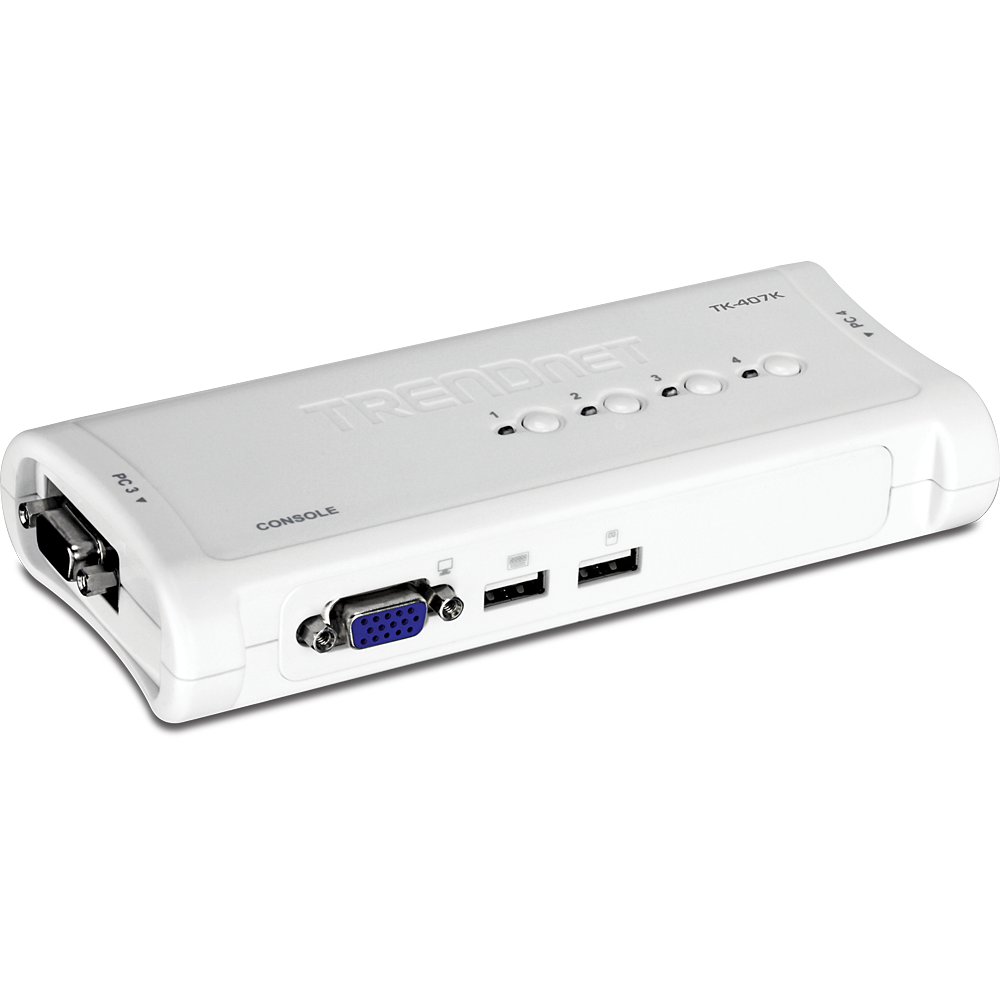

Trendnet 4-Port USB KVM Switch Kit | TK-407K

• Description
• Specifications
• Downloads

• Trendnet 4-Port USB KVM Switch Kit | TK-407K

  The 4-Port USB KVM Switch lets you manage four PC’s with just one set of keyboard, monitor, and mouse. Switch between 4 PC’s with a simple press of a button! Separate sets of KVM cables are included with the KVM Switch, so users can start controlling 4 PC’s instantly. The KVM cables also provide power to the KVM Switch, eliminating the need for a power adapter. Hot Key operations provide immediate access to features such as computer switching, and auto-scanning. With its Hot-Plug, and Audible Feedback, the 4-Port USB KVM Switch is the perfect choice for managing multiple PC’s.

  Control up to 4 computers / servers with one set of console devices
  USB keyboard / mouse emulation with 4 sets of detachable KVM cables
  Compliant with Windows, Linux, and Mac OS
  High video quality, up to 2048 x 1536 VGA resolution
  Auto-Scan and LED display for computer monitoring
  Keyboard status restored when switching between computers
  Computer selection by front panel push buttons, keyboard hot key commands or Windows-based client switching software*
  User definable hot key (Windows only)
  Plug & Play and hot-pluggable
  USB interface power method
  2-year limited warranty

• Feature	Details
  Hardware Connections	4 computers
  USB Interface	USB 1.1 compliant
  KVM Cable	2 sets of 1.2m (4ft.) USB KVM cables
  	2 sets of 1.8m (6ft.) USB KVM cables
  Cable Interface (all male)	To KVM:
  	1 x VGA/SVGA HDB 15-pin
  	To Computer:
  	1 x USB (Type A)
  	1 x VGA/SVGA HDB 15-Pin
  PC Port Connectors	4 x VGA/SVGA HDB 15-pin (female)
  Console Port Connectors	2 x USB keyboard/mouse (type A)
  	1 x VGA/SVGA 15-pin HDB (female)
  PC Selection	Face panel push buttons, keyboard hot key commands or Windows-based client switching software
  Supported Operating Systems	Windows, Linux, and Mac
  Auto-Scan Interval	10 seconds
  Keyboard State	Save and restore
  Power Type	USB interface power
  Dimensions	167 x 80 x 28 mm (6.6 x 3.2x 1.1 in.)
  Weight	159 g (5.6 oz.)
  Temperature	Operating: 0°C ~ 40°C (32°F ~104°F)
  	Storage: -20°C ~ 60°C (-4°F ~140°F)
  Humidity	Max 90% (non-condensing)
  Certifications	CE, FCC
  Package Contents	TK-407K, Quick Installation Guide, 2 sets of USB KVM Cables (2 x 1.2 m / 4 ft.), 2 sets of USB KVM Cables (2 x 1.8 m / 6 ft.)
