Trendnet 4-Port Dual Monitor DisplayPort KVM Switch | TK-440DP

• Description
• Specifications
• Downloads

• Trendnet 4-Port Dual Monitor DisplayPort KVM Switch | TK-440DP

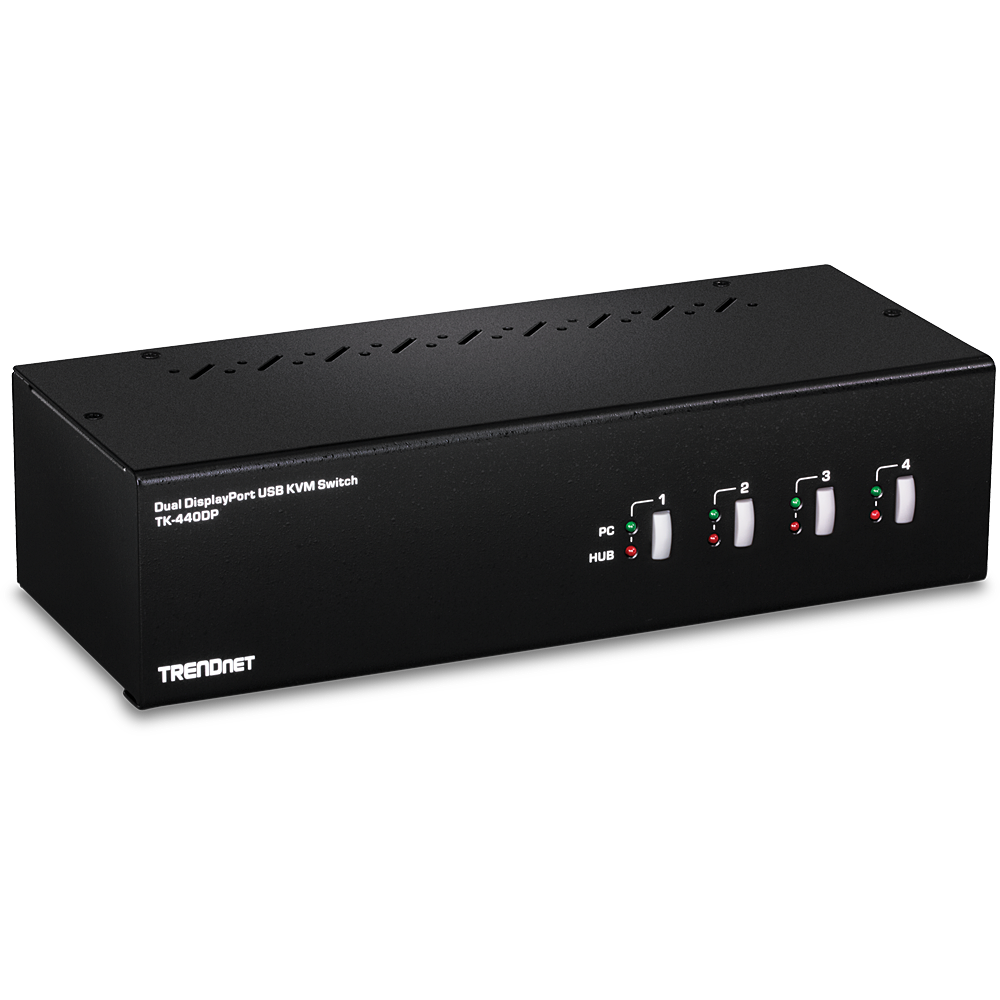

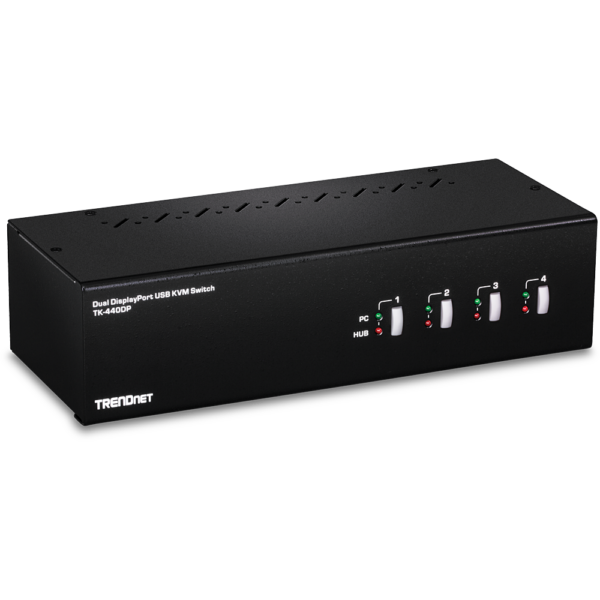

  TRENDnet’s 4-Port Dual Monitor DisplayPort KVM Switch, model TK-440DP, allows you to control four computers with one set of console controls. Experience up to 4K UHD resolutions, no driver installation required. The TK-440DP is designed for dual monitor systems with USB mouse and keyboard connections, and features a two-port USB hub to share storage devices or printers between computers.


  Dual Monitor
  Designed to connect to two DisplayPort monitors.


  4K UHD Resolution
  Supports resolutions up to 4K UHD (3840 x 2160 @ 60Hz).


  USB 2.0 Hub
  Two additional USB ports to connect storage drives and printers.

  4-Port Dual Monitor KVM
  Control up to four computers with dual monitor support

  DisplayPort Monitor
  Designed to connect to two DisplayPort monitors

  4K UHD
  Supports resolutions up to 4K UHD (3840 x 2160 @ 60Hz)

  Audio Support
  Full audio support maximizes work station productivity

  USB Mouse & Keyboard
  True Transparent USB (TTU) emulation technology supports most keyboard and mouse designs

  Housing
  Rugged metal enclosure

  USB 2.0 Hub
  Two additional USB ports to connect storage drives and printers

  Hot Keys
  Hot Key command shortcuts

  Easy Installation
  Simple setup with driverless installation

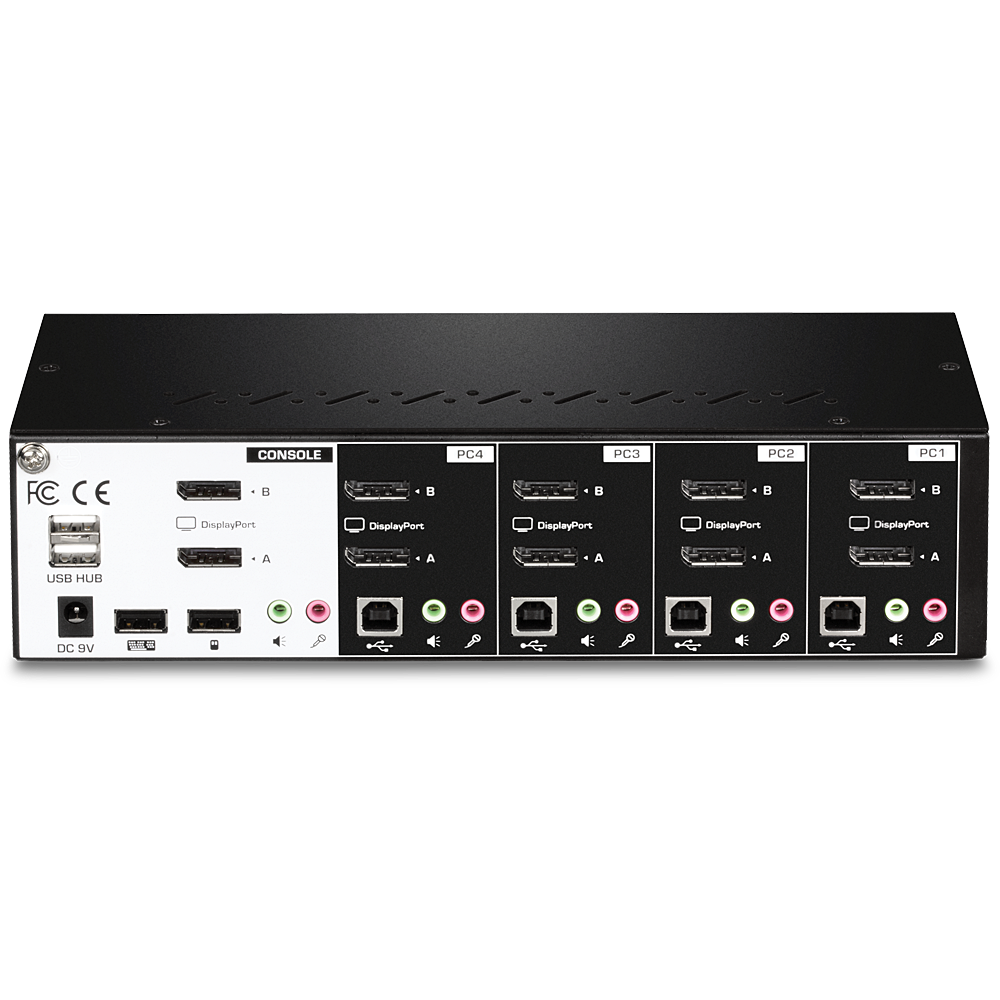

• Attribute	Details
  Console Port Connectors	Keyboard: USB Type A
  	Mouse: USB Type A
  	Monitors: 2 x DisplayPort 1.2
  	2-port USB 2.0 Hub
  	Speaker jack: 3.5mm
  	Microphone jack: 3.5mm
  KVM Port Interface	Keyboard/Mouse: USB Type B
  	Monitors: 2 x DisplayPort 1.2
  	Speaker jack: 3.5mm
  	Microphone jack: 3.5mm
  Computer Interface (up to 4)	Keyboard/Mouse: USB Type A
  	Monitors: 2 x DisplayPort 1.2
  	Speaker jack: 3.5mm
  	Microphone jack: 3.5mm
  Monitor Resolution	Up to 1920 x 1080 @ 144Hz
  	Up to 1920 x 1200 @ 144Hz
  	Up to 1920 x 1440 @ 144Hz
  	Up to 2560 x 1440 @ 144Hz
  	Up to 3440 x 1440 @ 60Hz
  	Up to 3840 x 2160 @ 60Hz
  Switching Control	Front panel push buttons
  	Keyboard hot key commands
  Operating Temperature	0° – 40° C (32° – 104° F)
  Operating Humidity	Max. 90% non-condensing
  Power	Input: 100 – 240V AC, 50/60Hz, 0.8A
  	Output: 9V DC, 2A external power adapter
  	Max. consumption: 0.7W
  Dimensions (L x W x H)	254 x 100 x 66mm (10 x 3.9 x 2.6 in.)
  Weight	1.2kg (2.7 lbs.)
  Warranty	2 years
  Certifications	CE, FCC
  Package Contents	TK-440DP
  	Quick Installation Guide
  	Power adapter (9V DC, 2A)
