• Trendnet 2-Port USB KVM Switch Kit with Audio | TK-209K

  The 2-Port USB Audio KVM Switch lets you control multimedia PCs with just one keyboard, monitor, mouse, microphone, and a set of speakers. The KVM switch not only allows you to share your monitor, keyboard and mouse but you can also share microphone and speakers. With just a simple press of a button, this KVM switch eliminates the hassle of cable swapping and switching between 2 PCs. With it’s Hot-Plug, Auto-Scan and Hot-Key operating features, the TK-209K is the perfect choice for managing 2 PCs. Separate KVM cables are included.

  Control up to 2 computers/servers with one set of console device
  USB keyboard/mouse emulation with 2 sets of detachable KVM cables
  Compliant with Windows and Linux
  High video quality, up to 2048 x 1536 VGA resolution
  Listen to music from one computer while working on the other
  Auto-Scan & LED display for computer monitoring
  Computer selection by face panel push buttons, keyboard hot key commands or Windows-based client switching software*
  User definable hot key (Windows only)
  Plug & Play and hot-pluggable
  USB interface power method
  2-year limited warranty

• Feature	Details
  Connections	2 computers
  USB Interface	USB 1.1 compliant

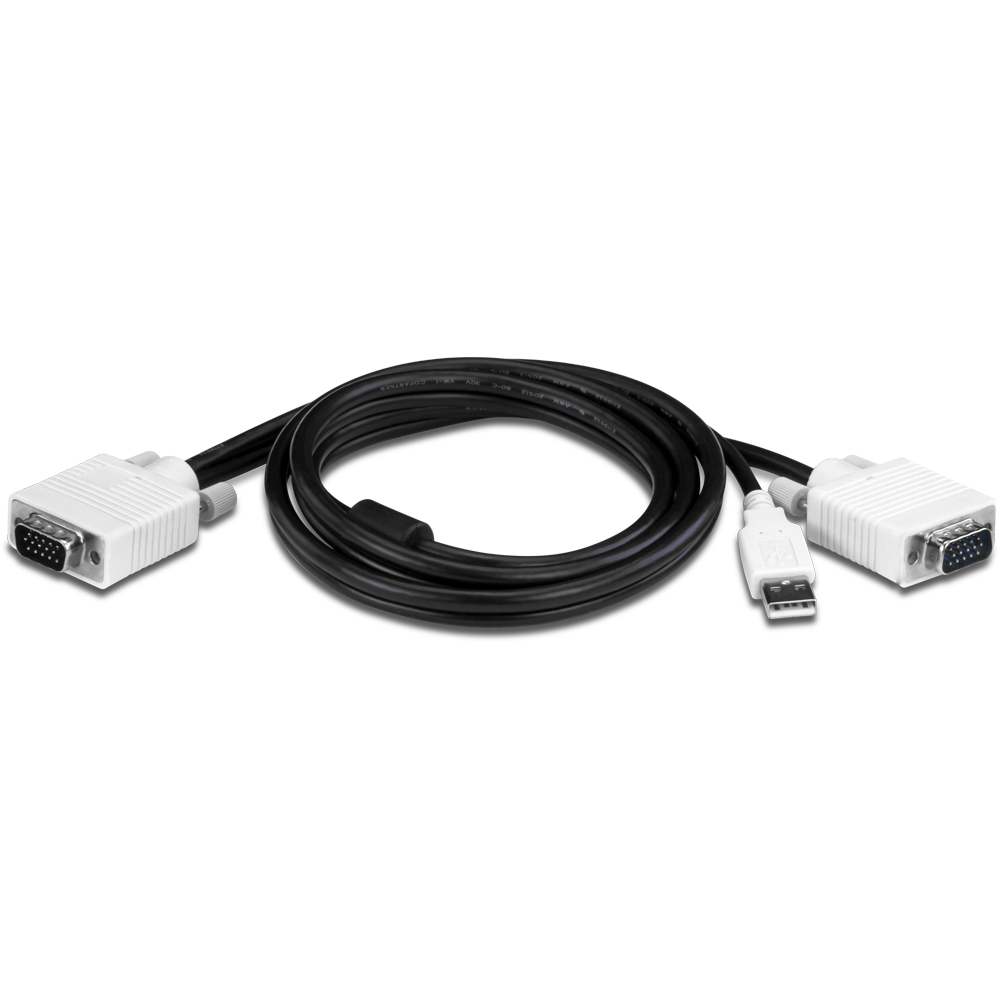

  KVM Cable	2 sets of 1.2m (4ft.) USB KVM cables
  Audio Cable	2 sets of 1.2m (4ft.) audio cables (USB mini B to 3.5mm jack)
  Cable Interface (all male)	To KVM:
  	KVM Cable: 1 x VGA/SVGA HDB 15-pin
  	Audio Cable: 1 x USB (Mini B)
  	To PC:
  	KVM Cable: 1 x USB (Type A), 1 x VGA/SVGA HDB 15-pin
  	Audio Cable: 1 x 3.5mm speaker jack, 1 x 3.5mm microphone in jack
  PC Port Connectors (all female)	2 x VGA/SVGA HDB 15-pin
  	2 x USB (Mini B)
  Console Port Connectors (all female)	1 x USB keyboard (type A)
  	1 x USB mouse (type A)
  	1 x VGA/SVGA HDB 15-pin
  	1 x 3.5mm speaker jack
  	1 x 3.5mm microphone jack
  Supported Operating Systems	Windows and Linux
  Port Selection	Front panel push buttons, keyboard hot key commands or Windows-based client switching software
  Auto-Scan Interval	10 ~ 60 seconds
  Keyboard Status	Save and restore
  Power Type	USB Interface Power
  Dimensions	98 x 70 x 28mm (3.86 x 2.76 x 1.1in.)
  Weight	100 g (3.6oz)
  Temperature	Operating: 0°C ~ 40°C (32°F ~104°F)
  	Storage: -20°C ~ 60°C (-4°F ~140°F)
  Humidity	0%~90%, non-condensing
  Certifications	CE, FCC
  Package Contents	TK-209K, Quick Installation Guide, 2 sets of USB KVM cables (1.2m/4ft), 2 sets of audio cables (1.2m/4ft.)
