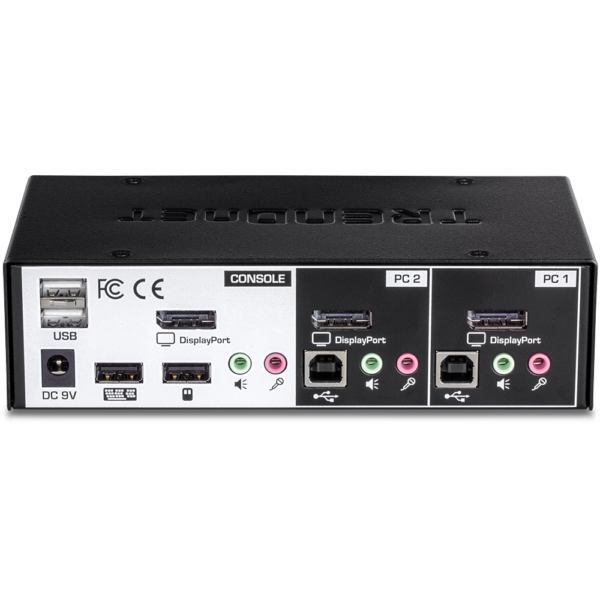

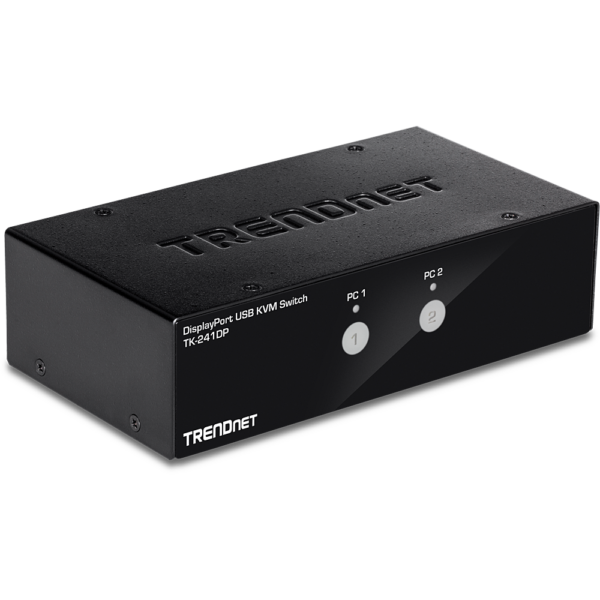

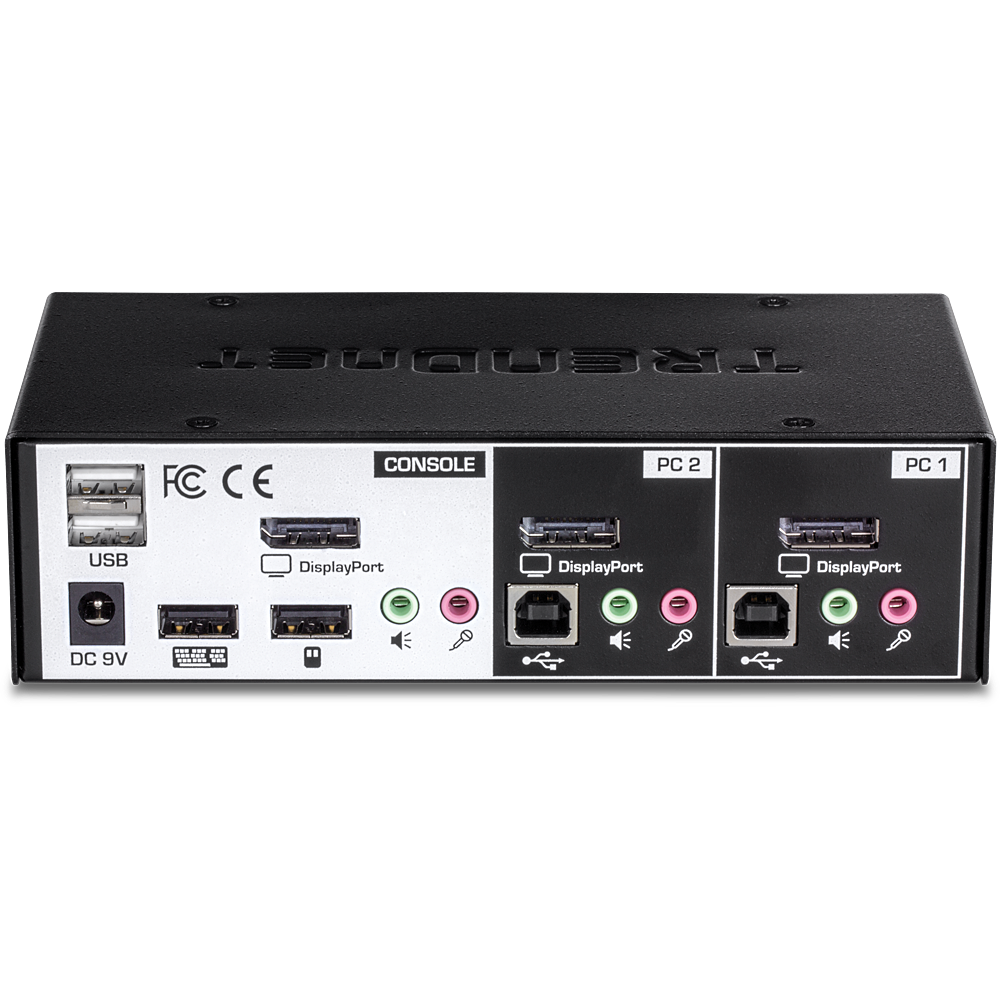

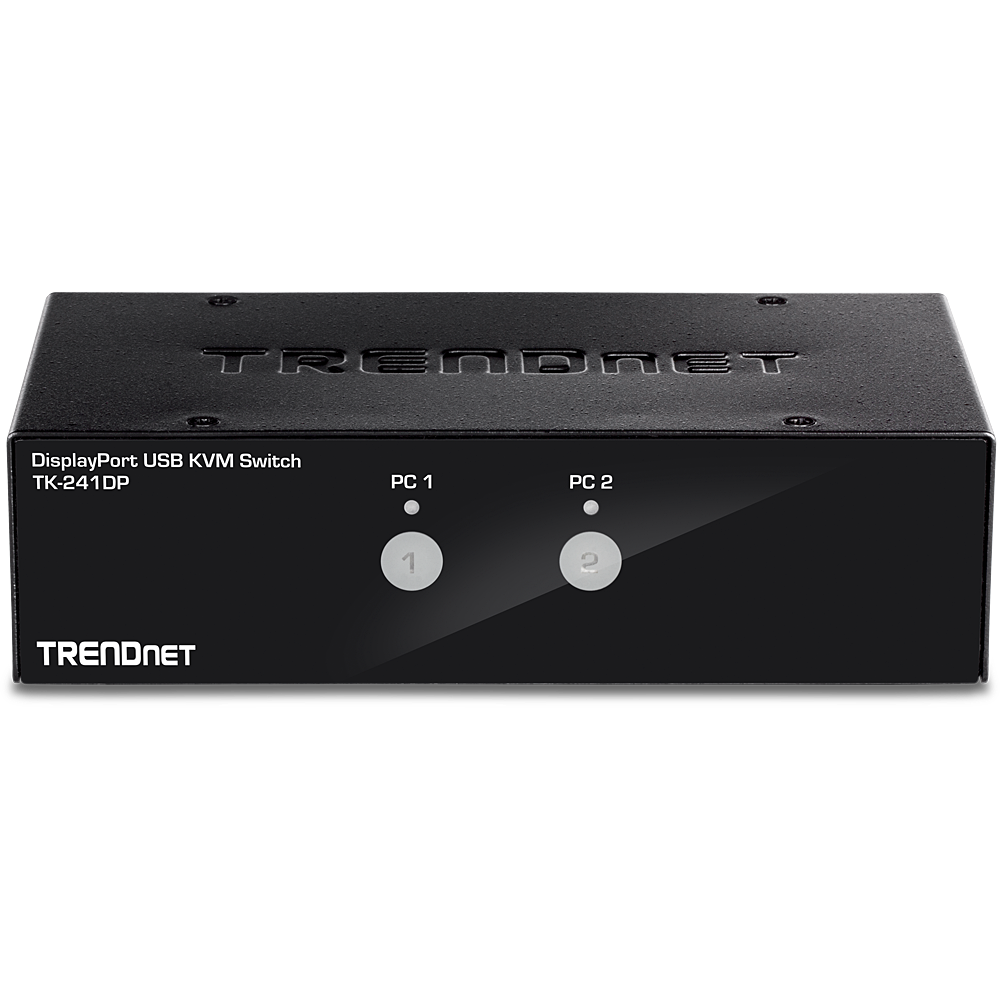

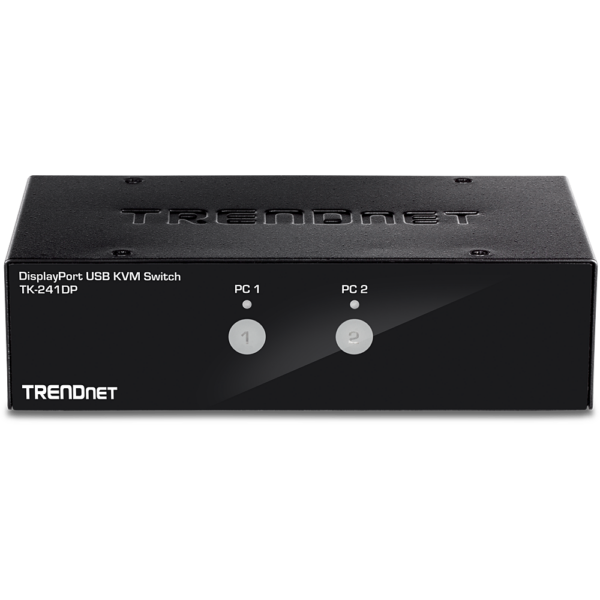

Trendnet 2-Port DisplayPort KVM Switch | TK-241DP

• Specifications
• Downloads

• Trendnet 2-Port DisplayPort KVM Switch | TK-241DP

  Attribute	Details
  Console Port Connectors	Keyboard: USB Type A
  	Mouse: USB Type A
  	Monitors: 1 x DisplayPort 1.2
  	2-port USB 2.0 Hub
  	Speaker jack: 3.5mm
  	Microphone jack: 3.5mm
  KVM Port Interface (up to 2)	Keyboard/Mouse: USB Type B
  	Monitors: 1 x DisplayPort 1.2
  	Speaker jack: 3.5mm
  	Microphone jack: 3.5mm
  Computer Interface (up to 2)	Keyboard/Mouse: USB Type A
  	Monitors: 1 x DisplayPort 1.2
  	Speaker jack: 3.5mm
  	Microphone jack: 3.5mm
  Monitor Resolution	Up to 1920 x 1080 @ 144Hz
  	Up to 1920 x 1200 @ 144Hz
  	Up to 1920 x 1440 @ 144Hz
  	Up to 2560 x 1440 @ 144Hz
  	Up to 3440 x 1440 @ 60Hz
  	Up to 3840 x 2160 @ 60Hz
  Switching Control	Front panel push buttons
  	Keyboard hot key commands
  Operating Temperature	0° – 40° C (32° – 104° F)
  Operating Humidity	Max. 90% non-condensing
  Power	Input: 100 – 240V AC, 50/60Hz, 0.8A
  	Output: 9V DC, 2A external power adapter
  	Max. consumption: 0.7W
  Dimensions	164 x 87 x 45mm (6.4 x 3.4 x 1.77 in.)
  Weight	920g (2.02 lbs.)
  Warranty	2 years
  Certifications	CE, FCC
  Package Contents	TK-241DP
  	Quick Installation Guide
  	Power adapter (9V DC, 1A)
