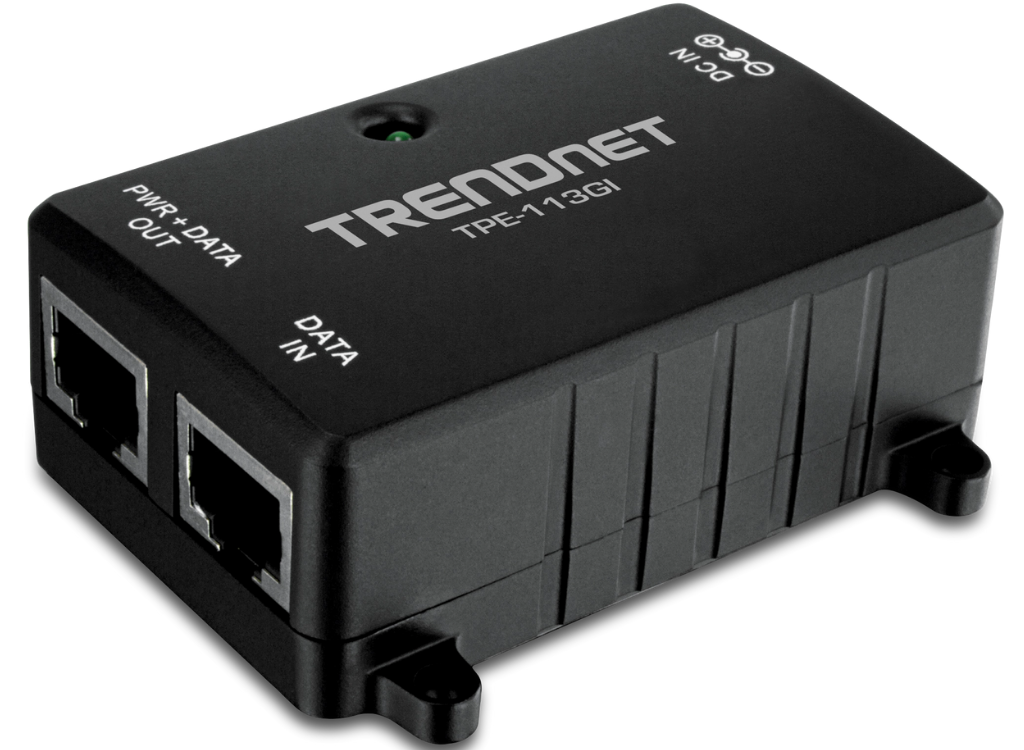

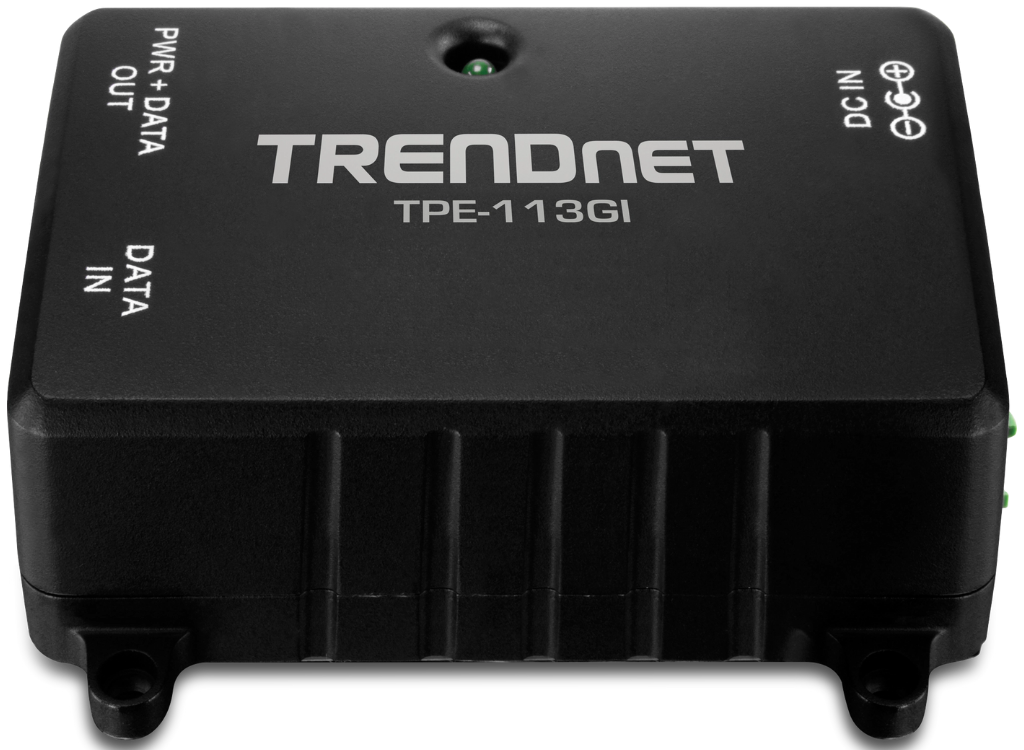

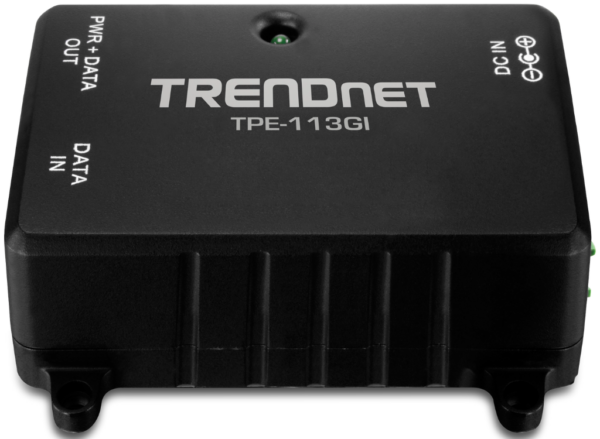

• Trendet Gigabit Power over Ethernet (PoE) Injector | TPE-113GI

  The Gigabit Power over Ethernet Injector, model TPE-113GI, combines electrical power with a Gigabit network connection to produce a Gigabit Power over Ethernet (PoE) signal. Connect this device to a non-PoE switch and then run an Ethernet cable for up to 100 meters (328 Ft.) to network PoE devices.

  No need to buy a PoE switch—use an existing open port from a non-PoE switch to save installation and equipment costs when installing TRENDnet PoE access points and IP cameras in remote locations. This compact device safeguards valuable network equipment with short circuit protection. Quickly create an integrated PoE and non-PoE network at Gigabit speeds.

  IEEE 802.3ab Gigabit and 802.3af PoE compliant
  Gigabit Power over Ethernet (PoE) Injector delivers a PoE signal for distances of up to 100 meters (328 ft.)
  1 x 10/100/1000 Mbps Auto-MDIX Data In port
  1 x 10/100/1000 Mbps PoE Auto-MDIX Data Out port
  Power port
  Power LED indicator
  Supplies power up to 15.4 Watts
  Easily install a PoE device where a power outlet is not available
  Reduce installation and network equipment costs
  Safeguards network devices with short circuit protection
  Plug and Play in remote location
  Light weight and compact size
  Wall mounting points
  3-year limited warranty

• Category	Specification
  Standard	– IEEE 802.3 10Base-T
  	– IEEE 802.3u 100Base-TX
  	– IEEE 802.3ab Gigabit Ethernet
  	– IEEE 802.3af Power over Ethernet
  Network Media	– 10 Mbps: UTP/STP Cat. 5 and 5e up to 100 Meters
  	– 100 Mbps: UTP/STP Cat. 5, 5e up to 100 Meters
  	– Gigabit: UTP/STP Cat 5e and 6 up to 100 meters
  Ports	– 1 x 10/100/1000 Mbps DATA-IN (Data only)
  	– 1 x 10/100/1000 Mbps PWR+DATA OUT (Data + Power)
  Data Lines	– Pair 1: Pin 1, 2
  	– Pair 2: Pin 3, 6
  Power	– Input: 100240V, 5060Hz, 0.4A max.
  	– Output: 48V DC, 0.4A 18W max.
  Power Consumption	– 15.4 Watts (max.)
  Dimensions	– 70 x 45 x 25mm (2.75 x 1.8 x 1 in.)
  Weight	– 45 g (1.6 oz.)
  Temperature	– Operation: 0°C50°C (32°F 122°F)
  	– Storage: -20°C60°C (-4°F140 °F)
  Humidity	– Max. 90% (non-condensing)
  Certifications	– CE, FCC
  Package Contents	– TPE-113GI
  	– Quick Installation Guide
  	– Power Adapter (48V DC, 0.4A)
