TP-Link TX401 10 Gigabit PCI Express Network Adapter

• Description
• Specifications
• Downloads

• TP-Link TX401 10 Gigabit PCI Express Network Adapter


  Arm Your PC with the Latest 10G Speeds
  PCIe 3.0 Slot to 10 Gigabit Ethernet
  Network Adapter

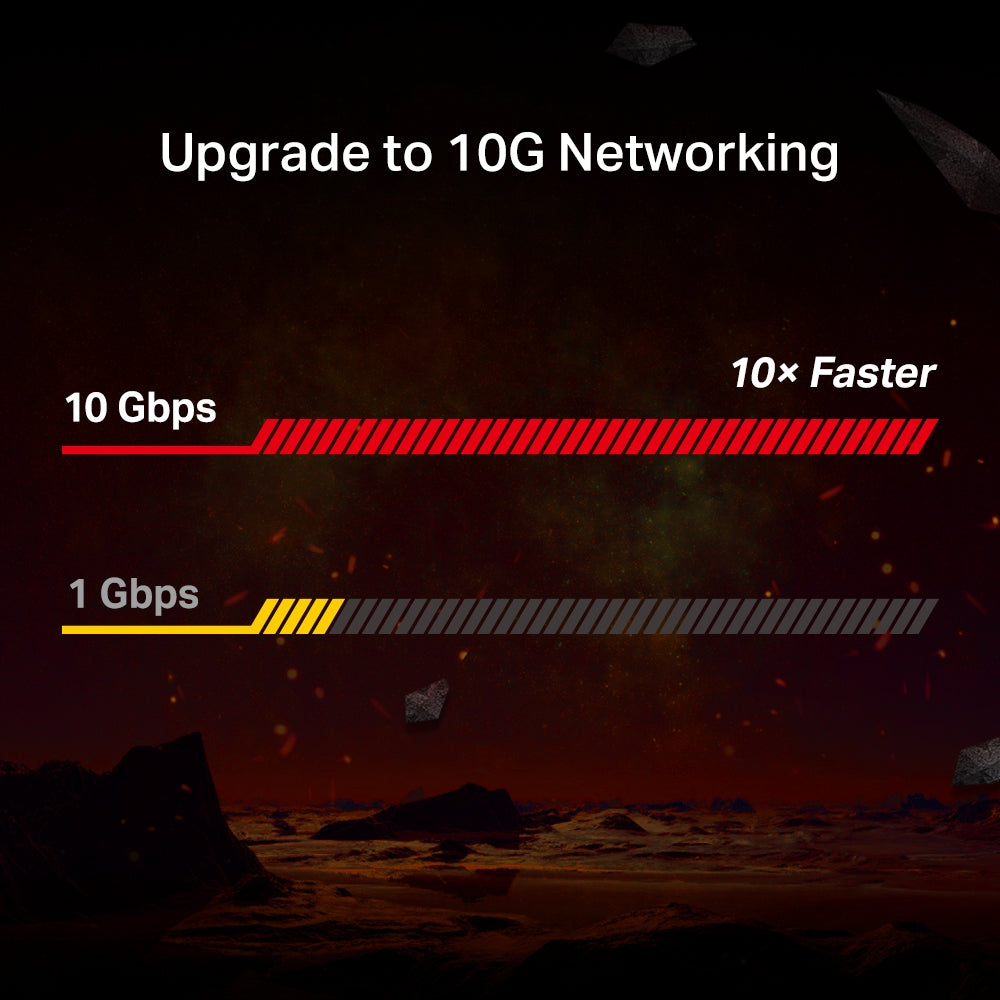

  Upgrade to 10G Networking
  10 Gigabit Ethernet reaches blazing-fast data rates up to 10 billion bits per second—10× faster than standard Gigabit Ethernet. It’s a brand-new era for all your bandwidth-intensive tasks from local data transfers to internet access.

  Play Never Ends with 10G
  With 10 Gbps internet access, your gaming will be fully optimized with a large boost in speed, latency, and responsiveness. Large-sized game downloads, seamless live streaming, and massive data backups via the cloud are as easy as choosing your character.

  Local Data Transmissions in Seconds
  For local connections, a 10G PCIe adapter helps build a lightning fast transport channel between a central server and other working machines in your local network. Local data transmissions will be a breeze for you as you handle bandwidth-intensive tasks easily at your home or office.

  Versatile, Multi-Speed Compatibility
  10GBase-T is backwards compatible with multiple data rates, including 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps Base-T connectivity. The 10G Ethernet port automatically negotiates between higher and lower speed connections, allowing you to upgrade to 10G networking smoothly.

  QoS Support
  A Bandwidth Buff for Gaming
  Quality of Service technology ensures enough bandwidth and avoids network congestion for PC gaming. It delivers prioritized performance for gamers.

• HARDWARE FEATURES
  Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE802.3an, IEEE802.3az, IEEE 802.3x
  Interface	1× PCI Express 3.0 x4, 1× RJ45 Gigabit/Megabit Port
  Network Media	10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX
  LED	10 Gbps Link/Act, 5 / 2.5 / 1 Gbps and 100 Mbps Link/Act
  Data Rates	100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps for Half-Duplex mode, 200 Mbps, 2 Gbps, 5 Gbps, 10 Gbps, 20 Gbps for Full-Duplex mode
  Dimensions	120.8 × 98.2 × 21.5 mm (4.8 × 3.9 × 0.8 in)
  Flow Control	802.3x
  OTHERS
  Certification	FCC, CE, RoHS
  Package Contents	10 Gigabit PCIe Network Adapter (TX401), Standard/Low-Profile Brackets, Quick Installation Guide, Resource CD, 1.5 m CAT6A Ethernet Cable
  System Requirements	Windows 11/10/8.1/8/7, Windows Servers 2019/2016/2012 R2, Linux
  Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing
