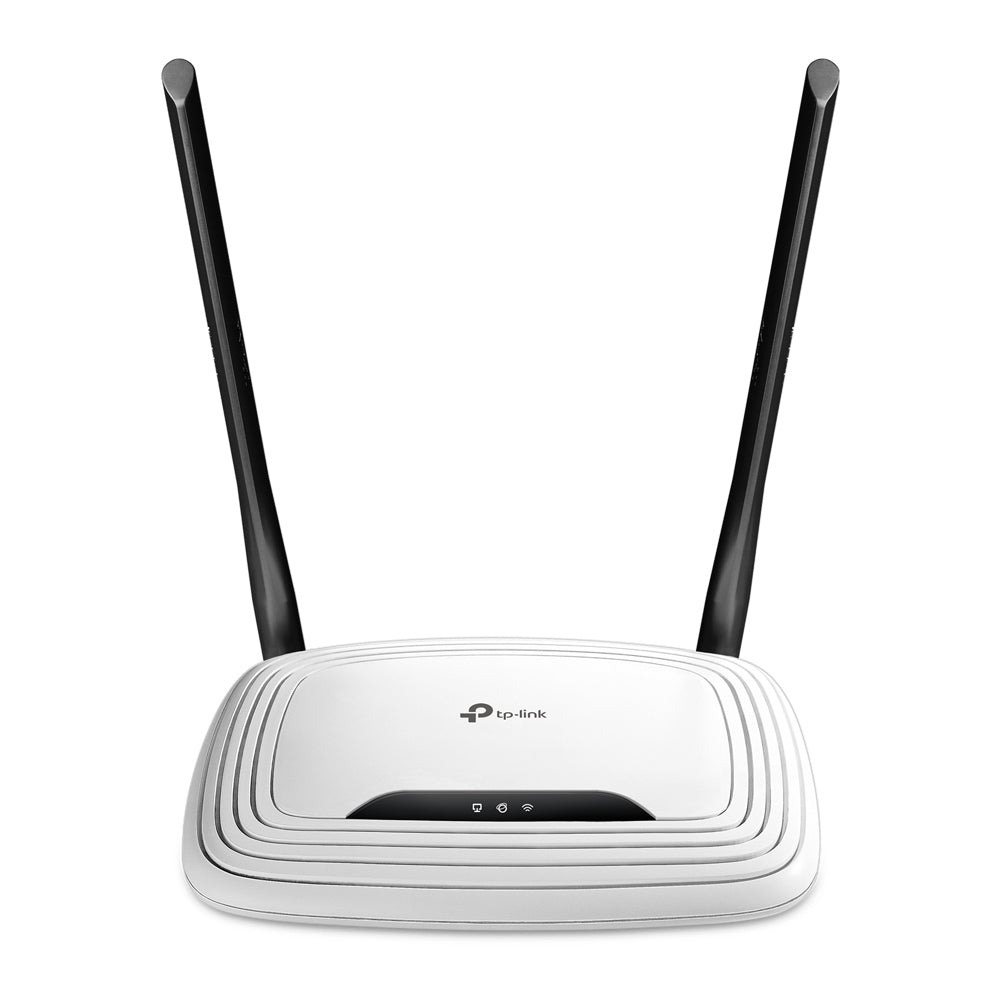

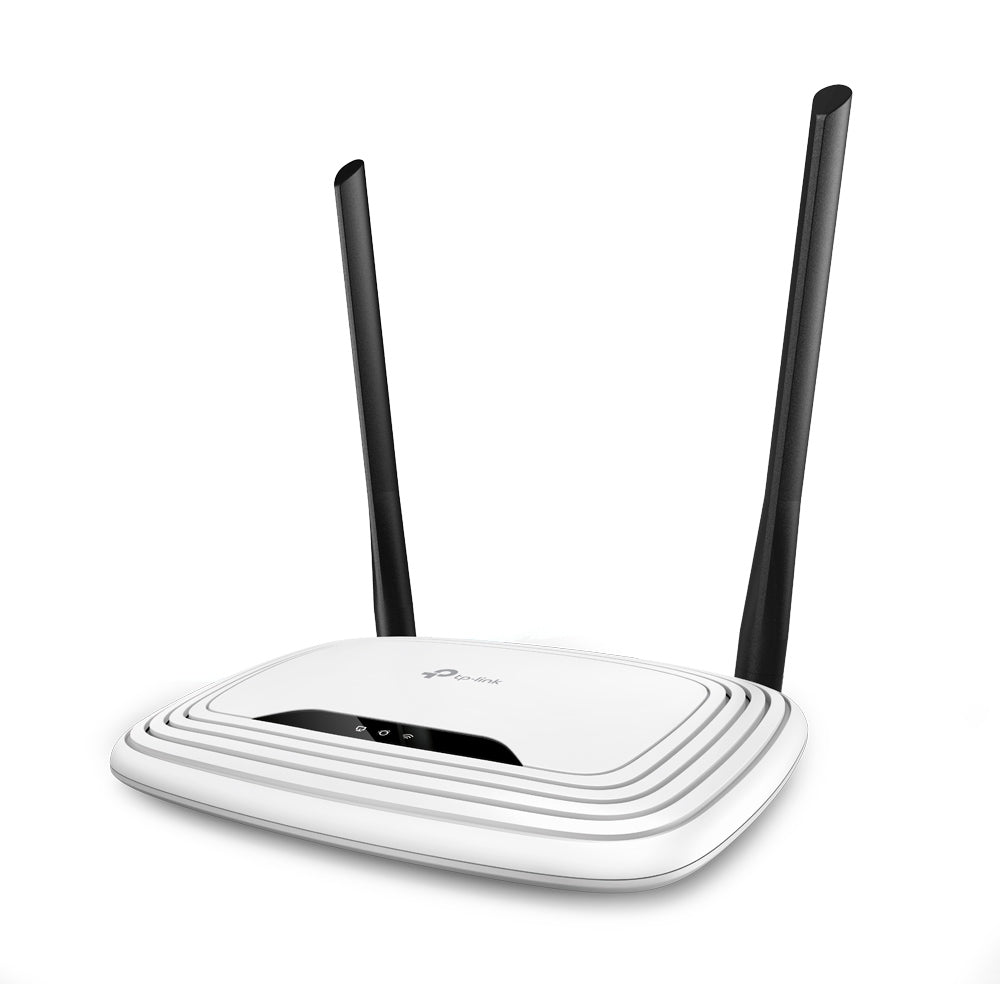

• TP-Link TL-WR841N 300Mbps Wireless N WiFi Router


  Performance: 300Mbps wireless speed ideal for interruption sensitive applications like HD video streaming
  Guest Network: provides separate access for guests while securing the home network
  IPv6: compatible with IPv6 (Internet Protocol version 6)
  WPS button: easy wireless security encryption at a push of WPS button
  IPTV: supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
  Bandwidth Control: assigns your preferred devices with more bandwidth
  Parental Controls: manage when and how connected devices can access the internet

  Enjoy Your Wi-Fi in Dailylife
  300Mbps Wireless N Speed
  TL-WR841N

  300Mbps Wireless N Speed – Fast Download Speed
  TP-Link’s TL-WR841N is a high speed solution that is compatible with IEEE 802.11 b/g/n. Based on 802.11n technology, TL-WR841N gives users wireless performance at up to 300Mbps, which can meet your most demanding home networking needs, such as HD streaming, online gaming and large files downloading.


  Access Point Mode
  Transform your existing wired network
  to a wireless one.

  Range Extender Mode
  Boost the existing wireless coverage in
  your room.

  WISP Mode
  Connect to the ISP network wirelessly
  in areas without wired service.

  Easy Setup and Use
  Set up the TL-WR841N in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and access control.

  Easy Setup

  WPS Button

  Guest Network

  Tether APP

• SECURITY
  Network Security	SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
  Guest Network	1× 2.4 GHz Guest Network
  WiFi Encryption	WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x)

  WIRELESS
  Standards	Wi-Fi 4 (IEEE 802.11n/b/g 2.4 GHz)
  WiFi Speeds	N300
  WiFi Range	2 Bedroom Houses, 2× Fixed Antennas
  WiFi Capacity	Legacy
  Working Modes	Router Mode, Access Point Mode, Range Extender Mode, WISP Mode

  HARDWARE
  Processor	Single-Core CPU

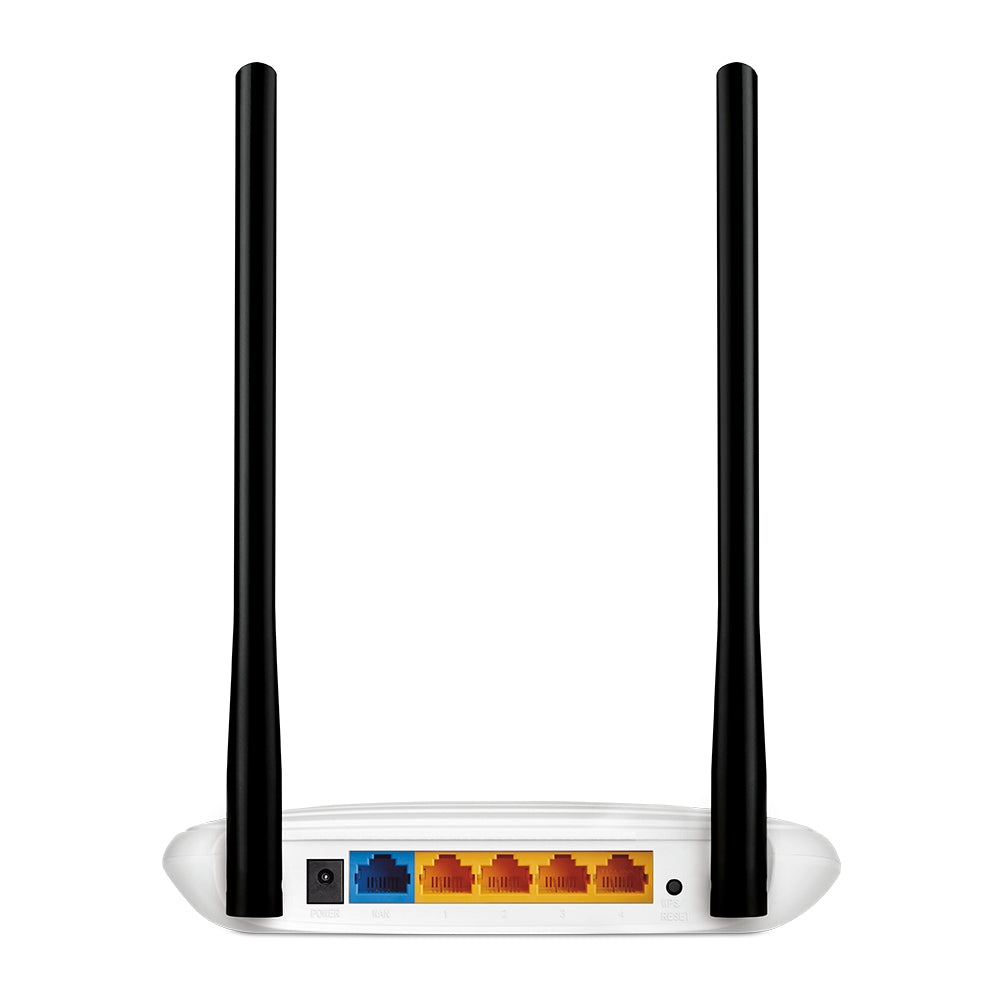

  Ethernet Ports	1× 10/100 Mbps WAN Port, 4× 10/100 Mbps LAN Ports
  Buttons	Reset Button
  Power	9 V ⎓ 0.6 A

  SOFTWARE
  Protocols	IPv4, IPv6
  Parental Controls	URL Filtering, Time Controls
  WAN Types	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
  Quality of Service	QoS by Device
  NAT Forwarding	Virtual Server, Port Forwarding, Port Triggering, DMZ, UPnP
  IPTV	IGMP Proxy, IGMP Snooping
  DHCP	Address Reservation, DHCP Client List, Server
  DDNS	NO-IP, Comex, DynDNS
  Management	Tether App, Webpage, Check Web Emulator

  OTHER
  System Requirements	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser, Cable or DSL Modem (if needed), Subscription with an internet service provider (for internet access)
  Certifications	FCC, CE, RoHS
  Environment	Operating Temperature: 0℃~40℃ (32℉ 104℉), Storage Temperature: -40℃70℃ (-40℉ ~158℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing

  TEST DATA
  WiFi Transmission Power	CE: <20dBm(2.4GHz), FCC: <30dBm
  WiFi Reception Sensitivity	270M: -70dBm@10% PER, 130M: -74dBm@10% PER, 108M: -74dBm@10% PER, 54M: -77dBm@10% PER, 11M: -87dBm@8% PER, 6M: -90dBm@10% PER, 1M: -98dBm@8% PER

  PHYSICAL
  Dimensions (W×D×H)	6.9 × 4.6 × 1.3 in (173 × 118 × 33mm)
  Package Contents	Wi-Fi Router TL-WR841N, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
